OSMOBIL MAX 750 liter osmosis system for PV SOLAR GLASS and facade

Description

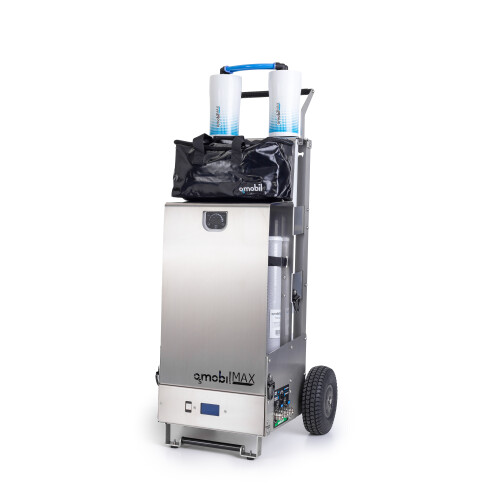

OSMOBIL MAX - pure power with 750 liters of pure water per hour for your large-scale projects!

With the new OSMOBIL MAX, we are responding to the ever-increasing demand for mobile RO for large volumes of water. In PV cleaning in particular, there are cleaning projects and cleaning technology that could no longer be adequately supplied with pure water using conventional RO.
Examples include large PV cleaning robots such as the solarROBOT pro (or comparable devices from other manufacturers), but also rotating brushes such as the SOLA-TECS W or the Cleantecs surface remover. The use of cleaning drones is another field in which the OSMOBIL MAX is perfectly suited.
Even those who want to do without a buffer tank when cleaning slats with the GTR from Cleantecs previously had no choice.
This is now changing with the OSMOBIL MAX. We are integrating the popular advantages of the OSMOBIL series (€1 running costs, 100% made in Germany, small and robust) and going 5 steps further:

Water volume - 750 liters of pure water per hour:
The OSMOBIL MAX has a nominal pure water output of 750 liters per hour and only requires a 230 volt connection. One of our aims in developing this osmosis system was to achieve this water output without having to use a high-voltage connection. We have achieved this with the intelligent, speed-controlled pump of the OSMOBIL MAX, which provides additional features.

Intelligent, speed-controlled pump:
Thanks to its permanently speed-controlled high-performance pump, the OSMOBIL MAX has automatic dry-running protection, for example. The device constantly adjusts itself to the amount of water available.
So even if you are on a construction site with poor water pressure, the machine runs smoothly and confidently. Nothing bangs or burbles. The only difference is that less clean water comes out of the machine than with a correspondingly strong water pipe.
If you want to push the machine to its limits, you need a water pipe that delivers at least 1500 liters per hour, ideally at 4-6 bar pressure. This allows you to produce well over 750 liters of pure water per hour. In practical construction site tests, we have achieved up to 900 liters per hour with very good inlet pressure (even in summer with quite warm tap water). As with all smaller OSMOBIL RO, we also use high-pressure technology for the OSMOBIL MAX, thus reducing the effort required for pre- and post-filtration.
The water can be used - even for glass cleaning! - directly after the membrane. Before delivery, all OSMOBILs undergo a hardness test and must achieve a conductivity of less than 10 PPM with input conductivity values of up to 660 PPM (approx. 33°DH).
With the OSMOBIL MAX, this is an outstanding 6 PPM, which corresponds to a so-called salt retention of over 99%. This also guarantees the extremely low running costs of approx. €1 per 1000 liters of pure water.

Saving water with the recycling function:
Another special feature of the machine is the built-in recycling function, which allows you to save water under certain conditions.
When using this function, the appliance feeds part of the waste water with a high mineral content into the supply line, thus reducing the amount of water drawn from the tap.
If the incoming water quality is below 400 PPM (i.e. from the medium-hard range), the OSMOBI MAX display will show you a recycling symbol - this is your signal to switch on the corresponding valve and save water!

The OSMOBI MAX can also work as a clean water filling station:
The tank filling function should also be mentioned in this context. The OSMBOBIL MAX therefore already includes the complete range of functions of the OSMOBIL BOX control unit, which has been well known for years.
If required, you can find the matching float switch incl. cable in our store. This makes it easy to fill various tank systems automatically.

OSMOBIL CLOUD:
Finally, the OSMOBIL MAX is the first participant in our OSMOBIL CLOUD. A web service that makes the machine traceable, documents GPS data, monitors input control values and will combine many other services in the future.
With every OSMOBIL MAX you get a 6-month trial membership in the cloud (first online from December 2024).

Other advantages of the OSMOBIL MAX:
Of course, the OSMOBIL MAX also has the well-known "X-Flow system" on board, which also actively helps to save water and also guarantees automatic regulation of the system's output water flow. The water volume can be easily regulated down to "zero" by the user (telescopic rod with valve, high-pressure cleaner, etc.), which was previously only possible with membrane systems using complex control technology. We solve this mechanically without complex and maintenance-prone pressure sensors, solenoid valves and the like. The system also automatically regulates the optimum amount of water until "complete closure", which the user can adjust as required using hose and nozzle sizes. In this way, the OSMOBIL MAX saves up to 25% tap water.
The connection for a second and third person or a second and third telescopic pole is already built into the OSMOBIL MAX.
This is also an indication of the system's high water output, which is available when required and has a nominal output of 750 liters of clean water per hour.

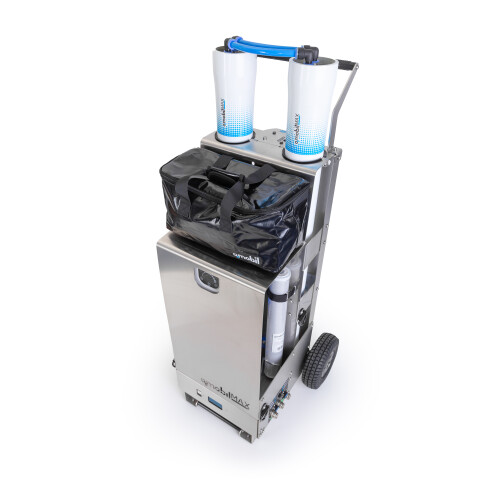

We have taken the wish of many customers to carry cables, hoses, accessories, couplings etc. with them particularly seriously and supply a robust truck bag with the MAX, which can even be attached to the device. However, a TDS meter no longer needs to be stowed here! The MAX has a built-in TDS meter, which measures both urban and pure water quality on two channels and is permanently shown on the large display. Information about the recycling mode and the tank sensor is also shown on the display.
Thanks to the new option of making the appliance airtight with a "click" by plugging the waste water hose directly into the water inlet, the service life of the appliance in winter (or without operation) could be increased to up to 12 weeks. Only then does the appliance need to be rinsed once! This is another major advantage of the OSMOBIL MAX.
The OSMOBIL MAX has also been designed with ergonomics in mind. An optional roller set for the handle is available as an accessory.
This makes it easy for one person to load and unload the machine. Click here for the article: OSMOBIL PRO X and MAX transport roller set for easy loading

The new features of the system compared to its predecessor at a glance:

• 750 liters of pure water nominal capacity per hour
• X-Flow system for direct connection to high-pressure devices, pumps, valves, etc.
• Three connections for telescopic poles and co.
• Specially designed for operating large solar cleaning robots
• Device can be tracked via the OSMOBIL Cloud on the web
• Intelligent volume control / up to 25% water savings
• recycling option for further water savings (up to 25% in total)
• Intelligent pump with automatic flow control and dry run protection
• Can optionally be used for automatic filling of tank systems
• incl. Truck tarpaulin bag
• Digital control display incl. membrane performance
• up to 12 weeks service life in winter "without flushing"
• running costs of less than €1 per 1000 liters of pure water
• robust & made in Germany

General information about the OSMOBIL MAX:

The OSMOBIL MAX comes with the title 'made in Germany' and is also the most powerful and economical reverse osmosis system for the cleaning industry on the market with 750 liters of pure water per hour. Without constant filter changes and with wear-free high-performance membranes, the system can produce many millions of liters of pure H20. Based on the principle of reverse osmosis, the city water fed into the system is separated into a mineral-free and a mineral-containing component. The mineral-free

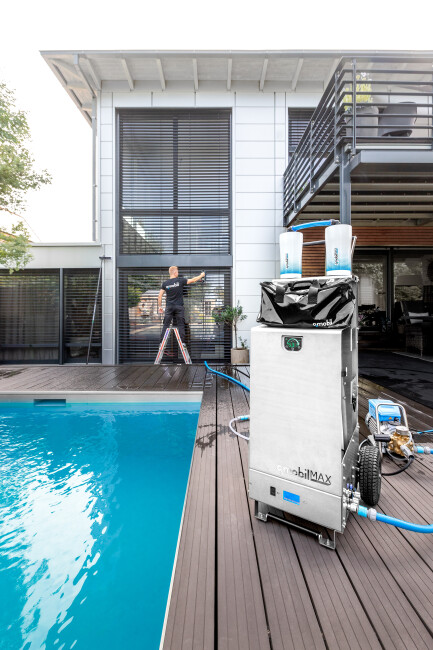

The mineral-free part has a water hardness of almost zero degrees German hardness and is ideal for cleaning windows, façades and PV systems - and all without the use of cleaning chemicals. Combined with high-quality carbon poles and washing brushes, this is the perfect set-up for professional building cleaning.

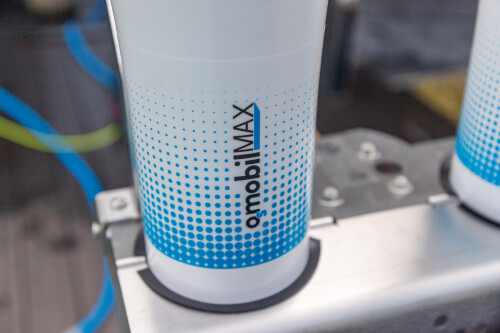

All in all, the OSMOBIL MAX with running costs of less than €1 per cubic meter of pure H2O is the economical alternative for producing pure H20 for osmosis cleaning. However, the textile pre-filter must be changed regularly (depending on the water quality). This is available in our store at a price of €29 and is already included in the running costs of approx. €1 per 1,000 liters of pure H20. The OSMOBIL MAX combines the unique performance of two large high-pressure reverse osmosis membranes with a powerful, permanently speed-controlled pump, a robust stainless steel chassis and very simple and clear operation and saves up to 25% water in the latest version. The OSMOBIL MAX was developed in close cooperation with glass and solar cleaners in the field and is perfectly designed for tough, professional use. Numerous sources of error found in other systems have been effectively avoided and the handling and range of functions have been further improved. Additional water softening or subsequent filtration using a di-filter is generally not necessary with this glass cleaning system. The simple and robust design guarantees a long service life, even under tough working conditions in the field of PV cleaning, glass cleaning or solar cleaning. It is also the only system on the market with an RCD and overpressure protection for your safety.

Please contact us, we will be happy to answer all your questions about the OSMOBIL MAX - the new machine for large-area cleaning of solar, PV, facades and glass!

Sponsored by the BG!
Did you know that the BG BAU subsidizes the OSMOBIL MAX with an occupational safety bonus?
Simply submit the invoice after purchase together with the application to BG BAU and save money!
The contribution-dependent subsidy amount is 30% (max. 750 €), the non-contributory subsidy amount is 50% and max. 1,500 €. You can find a detailed description of the premium subsidy procedure in the download area or contact us if you have any further questions.
The occupational health and safety premium shown by the BG is subject to change and cannot be guaranteed by the contractor. The contractor only guarantees the basic eligibility of the product in question. It is the responsibility of the client to apply for the subsidy from the BG.
