Description

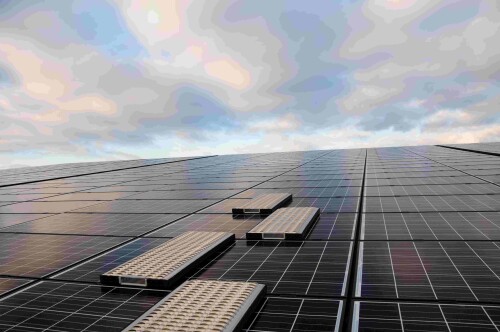

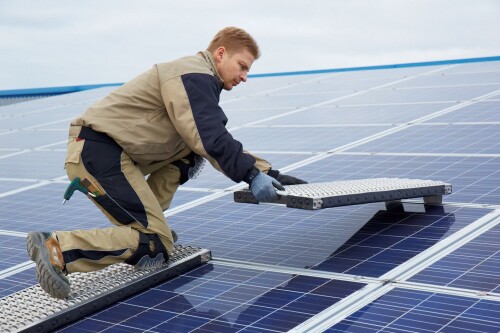

SMB Solar Multiboard 1780 mm as a mobile and lightweight work platform that enables safe working on PV systems and protects the PV modules at the same time. With a weight of only 10 kg, the Multiboard is made of aluminum, which, thanks to its special surface structure, provides the worker with a non-slip stand and thus prevents accidents. It not only provides protection for the worker, but also protects the PV modules from damage during installation, maintenance or cleaning - particularly important as the manufacturer states that the modules should not be stepped on.The SMB Solar Multiboard 1780 mm helps to distribute the worker's weight evenly on the solar module. This avoids point loads, which could potentially lead to microcracks in the solar cells, which in turn could lead to damage or loss of performance of the entire PV system. The SMB Solar Multiboard 1780 mm is fixed to the PV module by simply placing and inserting the bracket between two modules.
Special features
- protects the worker & the PV module
- made of aluminum
- lowers the costs
- made in Germany
Technical data
- Base support: aluminum with anti-slip surface
- Protective layer: UV-resistant PE, glued & mechanically fastened

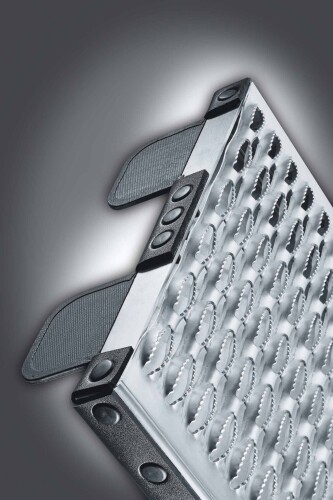

- Lugs: Aluminium incl. vulcanized rubber coating
- Thickness of tab: 6 mm
- Insertion depth in spacer gap: 55 mm
- Handle (centered at the lower end): 150 x 30 mm (WxH)
- Load: max. 150 kg (one person per board)
- Roof pitch (overall average): up to 40° (according to DIN 51 130)
- Board (LxWxH): 1780 x 400 x 60 mm
- Weight: 10 kg
Scope of delivery
- 1 x SMB Solar Multiboard 1780 mm
