Kränzle high-pressure cleaner hot water therm CA 11/130 without hose reel

With us, you can easily lease or finance. We offer attractive conditions through our partners Albis and PEAC.

  • Item number: 811-001
  • GTIN: 4012314102048
  • Powerful entry-level model
  • includes all important basic functions
  • control panel
  • flow monitor
  • combustion chamber pre-ventilation
  • Fuel tank: 25 l
  • Working pressure: 30-130 bar
  • Water output: 11 l/min
  • Weight: 159 kg
Hose reel
Article currently out of stock
  • Article out of print
Contract period Monthly rate
36 Months 114,77 € *
42 Months 101,24 € *
48 Months 89,55 € *
54 Months 83,33 € *
60 Months 75,29 € *
To use the installments, you must select the leasing payment method in the checkout.

The choice is yours. Use two strong partners by your side. We will inquire with both for you and, in case of doubt, select the cheaper provider for you.

Leasing
Payment of the installment for the use of the goods. The goods remain the property of the leasing company.

Financing / Hire Purchase
Similar to a loan, the goods become your property after payment of the last installment.

Non-binding estimate

Description

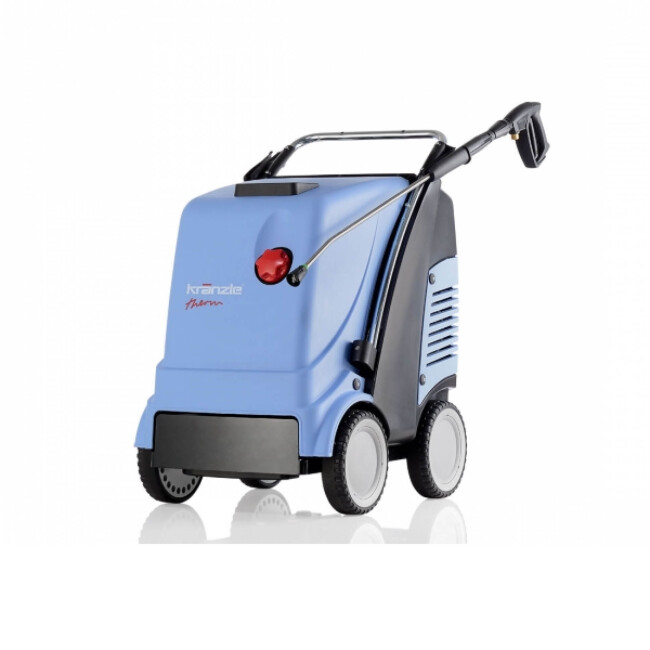

Kränzle high-pressure cleaner hot water therm CA 11/130 without hose reel, with all the important basic functions, is the perfect high-performance entry-level model into the world of hot water devices. Four large wheels with solid rubber tires, front and rear impact protection, compact design, working pressure up to 150 bar - including safety shut-off gun and lance with flat jet nozzle.
This model also has a clearly laid out control panel for regulating the water temperature and a service-friendly, removable cover to protect the mechanical components. The cleaning lances and high-pressure gun can also be kept within easy reach in the practical holder. The parking brake ensures stability and a secure hold during operation.

Special features

  • All-terrain chassis
  • Infinitely variable working pressure
  • Clearly arranged control panel for regulating the water temperature
  • Flow monitoring
  • combustion chamber pre-ventilation
  • Removable hood
  • Parking brake
  • tidying system
  • ram protection

Technical data

High-pressure cleaner:

  • Working pressure: 30 - 130 bar / 3 - 13 MPa
  • Water output: 11 l/min / 660 l/h
  • Permissible overpressure: 145 bar / 14.5 MPa
  • Motor speed: 1400 rpm
  • Connection: 230 V / 1 ~ / 50 Hz / 15 A
  • Power consumption: 3.4 kW
  • Power output: 2.3 kW
  • Mains connection cable: 5 m
  • Fuel tank with supply monitoring: 25 l
  • Dimensions (L/W/H): 860 x 580 x 970 mm
  • Weight: 159 kg

Hot water:

  • Hot water output: 12 - 80 °C (infinitely variable)
  • Steam level max.: 140 °C
  • Heating oil consumption max. heating capacity: 5.1 kg/h / 6 .1 l/h
  • Heating oil consumption ΔT 45°: 3.2 / 3.8 kW
  • Heating output: 55 kW

Safety shut-off gun:

  • Inlet: M22x1.5AG
  • Outlet: Plug-in coupling D12
  • Working pressure: 207 bar/ 27 MPa
  • Water output: 30 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle high-pressure cleaner hot water therm CA 11/130 without hose reel included:
  • 1 x high pressure hose 10 m (DN8)

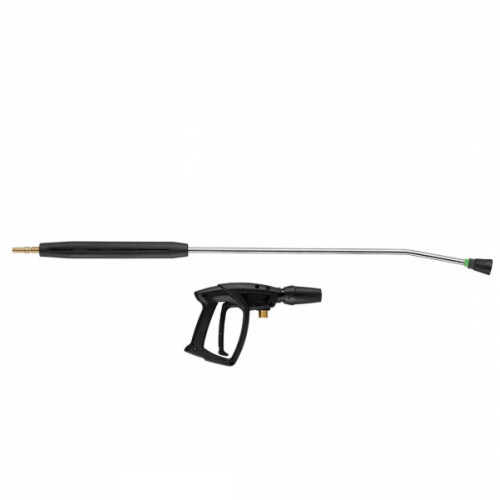

  • 1 x safety shut-off gun M2000, short
  • 1 x lance with flat jet nozzle, 100 cm long, handle, 045 nozzle size (green), 25° spray angle
  • 1 x water inlet filter
