Description

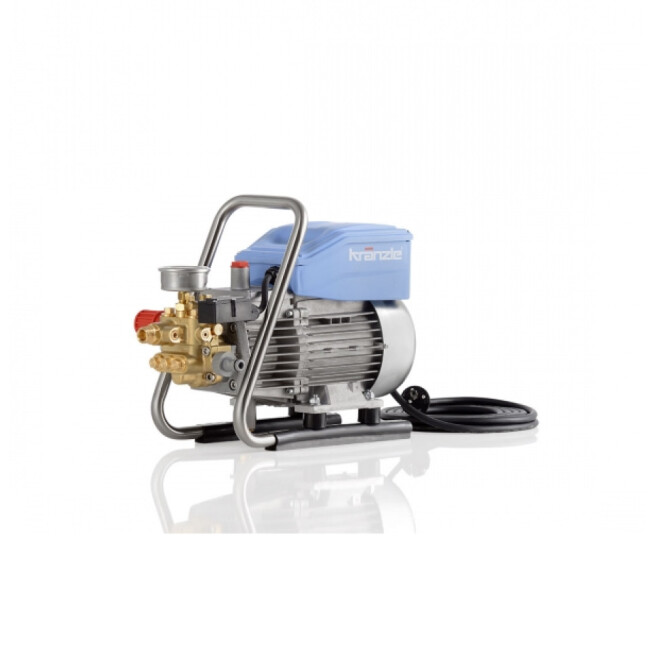

Like all its colleagues, the Kränzle cold water high-pressure cleaner HD 10/122 TS is equipped with the quick-change plug-in system D12, which guarantees a quick and easy change of cleaning lance and accessories. The design of the high-pressure cleaner has also been designed with everything in mind: the stainless steel carrying handle allows you to take the high-pressure cleaner with you to any work site and the compact design means it can be stowed away easily. The working pressure can be infinitely adjusted to achieve the right pressure for every cleaning task.
Another great feature: the total stop system! This not only reduces noise during use, but also protects the high-pressure pump.
Simply a great appliance for users with little space or storage space, but who don't want to compromise on quality.
Special features
- Quick-change plug-in system D12
- Use of cleaning agent possible
- Total stop system
- Pressure regulation
- Compact design
- Stainless steel carrying handle
Technical data
High-pressure cleaner:
- Working pressure: 30 - 120 bar | 3 - 12 MPa
- Water output: 10 l/min | 600 l/h
- Permissible overpressure: 135 bar | 13.5 MPa
- Motor speed: 2800 rpm
- Connection: 230 V | 1 ~ | 50 Hz | 11 A
- Power consumption: 2.5 kW
- Power output: 1.8 kW
- Mains connection cable: 5 m
- Dimensions (L/W/H): 440 x 200 x 330 mm
- Weight: 23 kg
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: D12 plug-in coupling
- Working pressure: 207 bar/ 27 MPa
- Water output: 30 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle cold water high-pressure cleaner HD 10/122 TS included:
- 1 x high pressure hose 10 m (DN6)
- 1 x safety shut-off gun M2000 - long
- 1 x lance with flat jet nozzle, 042 nozzle size (yellow), 50 cm length, 20° spray angle
- 1 x lance with dirt killer, 042 nozzle size (yellow), 50 cm length
