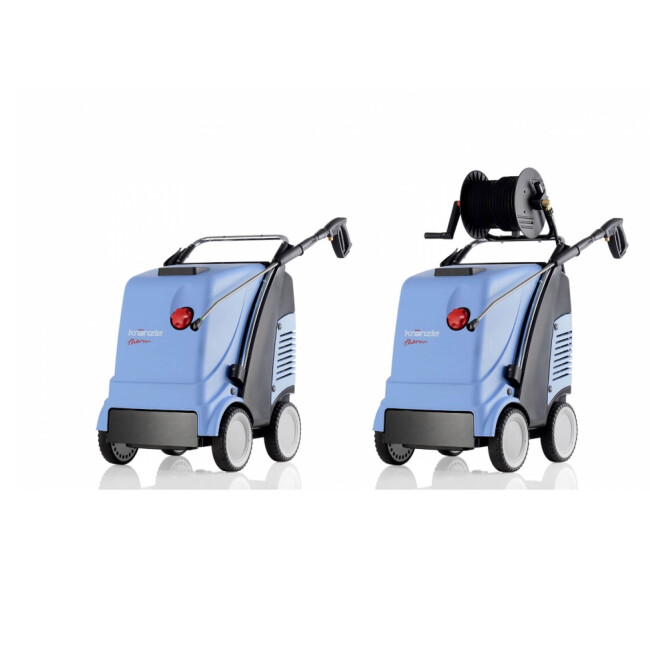

Kränzle high-pressure cleaner hot water therm CA 11/130

With us, you can easily lease or finance. We offer attractive conditions through our partners Albis and PEAC.

  • Item number: 811
  • Powerful entry-level model
  • includes all important basic functions
  • control panel
  • flow monitor
  • combustion chamber pre-ventilation
  • Fuel tank: 25 l
  • Available with or without hose reel
  • Working pressure: 30-130 bar
  • Water output: 11 l/min
  • Weight: 159 / 164 kg
Hose reel
Article currently out of stock
  • Article out of print
Contract period Monthly rate
24 Months 166,30 € *
30 Months 138,16 € *
36 Months 115,50 € *
42 Months 101,97 € *
48 Months 90,28 € *
54 Months 84,07 € *
60 Months 76,02 € *
To use the installments, you must select the leasing payment method in the checkout.

The choice is yours. Use two strong partners by your side. We will inquire with both for you and, in case of doubt, select the cheaper provider for you.

Leasing
Payment of the installment for the use of the goods. The goods remain the property of the leasing company.

Financing / Hire Purchase
Similar to a loan, the goods become your property after payment of the last installment.

Non-binding estimate

Description

Kränzle high-pressure cleaner hot water therm CA 11/130 with all the important basic functions is the perfect high-performance entry-level model into the world of hot water devices. Four large wheels with solid rubber tires, front and rear impact protection, compact design, working pressure up to 150 bar - available with or without hose reel. This model also has a clearly laid out control panel for regulating the water temperature and a service-friendly, removable cover to protect the mechanical components. The cleaning lances and high-pressure gun can also be kept within easy reach in the practical holder. The parking brake ensures stability and a secure hold during operation.

Special features

  • All-terrain chassis
  • Infinitely variable working pressure
  • Clearly arranged control panel for regulating the water temperature
  • Flow monitoring
  • combustion chamber pre-ventilation
  • Removable hood
  • Parking brake
  • tidying system
  • ram protection

Technical data

High-pressure cleaner:

  • Working pressure: 30 - 130 bar / 3 - 13 MPa
  • Water output: 11 l/min / 660 l/h
  • Permissible overpressure: 145 bar / 14.5 MPa
  • Motor speed: 1400 rpm
  • Connection: 230 V / 1 ~ / 50 Hz / 15 A
  • Power consumption: 3.4 kW
  • Power output: 2.3 kW
  • Mains connection cable: 5 m
  • Fuel tank with supply monitoring: 25 l
  • Dimensions (L/W/H):
    860 x 580 x 970 mm (without hose reel)
    860 x 580 x 1220 mm (with hose reel)
  • Weight: 159 / 164 kg

Hot water:

  • Hot water output: 12 - 80 °C (infinitely variable)
  • Steam level max.: 140 °C
  • Heating oil consumption max. heating capacity: 5.1 kg/h / 6 .1 l/h
  • Heating oil consumption ΔT 45°: 3.2 / 3.8 kW
  • Heating output: 55 kW

Safety shut-off gun:

  • Inlet: M22x1.5AG
  • Outlet: Plug-in coupling D12
  • Working pressure: 207 bar/ 27 MPa
  • Water output: 30 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle high-pressure cleaner hot water therm CA 11/130 included:
  • 1 x high pressure hose 10 / 15 m (DN8)

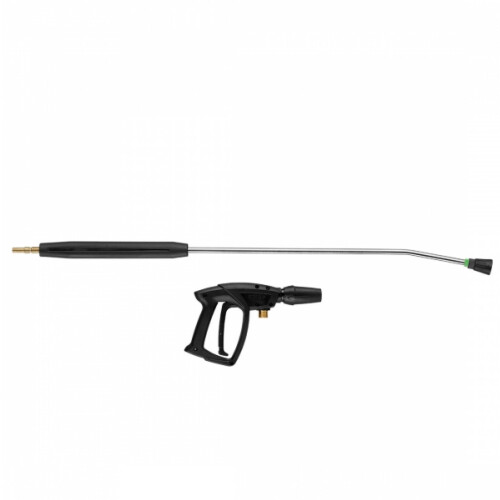

  • 1 x safety shut-off gun M2000, short
  • 1 x lance with flat jet nozzle, 100 cm length, handle, 045 nozzle size (green), 25° spray angle
  • 1 x water inlet filter

Downloads

PDF Kränzle Hochdruckreiniger Heisswasser therm CA 11/130 - Betriebsanleitung
PDF Kränzle Hochdruckreiniger Heisswasser therm CA 11/130 - Datenblatt
