Description

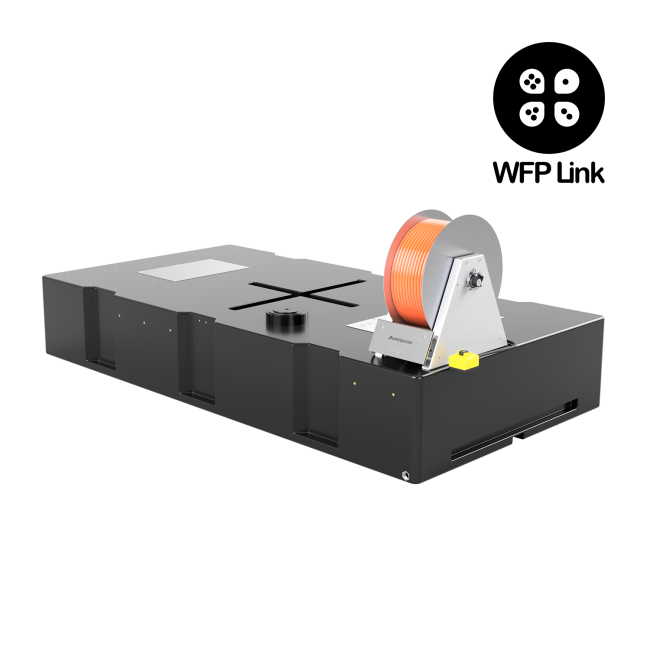

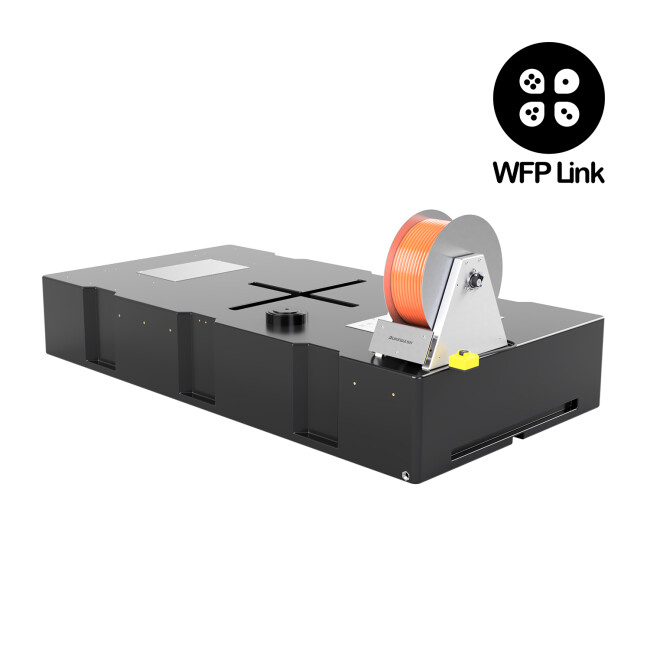

PUREWASH 810 L built-in tank system with side-mounted electric stainless steel reel and radio remote control offers an optimum solution for transporting clean water for vans with a sliding side door. The electric hose reel with powerful motor, which rolls up the 100 m Safety First hose within approx. 30 seconds, can be used via the sliding door of the van. Thanks to the 810 liter capacity of the built-in tank, there is enough clean water for approx. 6 hours net working time in the clean water cleaning area. The Profi system is supplied with battery, pump, GARDENA coupling and electric hose reel made of stainless steel, including hose.Another advantage of this integrated tank system is that it saves time. The tank can be easily filled with clean water - e.g. overnight - directly on site, so that the day's work can begin immediately - without the time-consuming search for a power or water connection on site. This significantly reduces set-up times and makes osmosis cleaning even more efficient and economical. Interestingly, the manufacturer Purewash also uses our "OSMOBIL IQ 12 volt digital pump controller", for which we offer corresponding instructions for download.
Tip: After installing the tank system, take your vehicle to a garage and have the tank system battery connected to the car's electrical system using a cut-off relay! This makes it easy to charge the battery while the vehicle's engine is running. At the same time, the "tank battery" cannot "drain" the vehicle's battery when the car is stationary or when the engine is not running.
Please select the desired version of the 810 L built-in tank system with the electric stainless steel reel on the side!
Special features
- Side roller for sliding door
- No tedious searching for water and power connections on site required
- Saves time and costs
- with control for stepless adjustment of the pump
Technical data
- 810 liter water tank
- 6.9 BAR / 100 PSI water pump
- 100 Ah AGM battery
- Digital flow regulator with radio remote control
- Electric hose reel made of stainless steel
- 100 m water hose 8 mm (Ø)
- incl. rails (mounting brackets)
- Prepared for installation in medium and large vans
- Dimensions (L/W/H): 230 cm x 118 cm x 87.6 cm (incl. hose reel)
- Weight: from approx. 145 kg
Scope of delivery
- 1 x PUREWASH 810 L built-in tank system with side-mounted electric hose reel made of stainless steel
- incl. digital control unit
- incl. GARDENA coupling
- 100 Ah AGM battery
- 6.9 BAR / 100 PSI water pump
- Hose reel incl. 100 meter hose
- mounting material
