Description

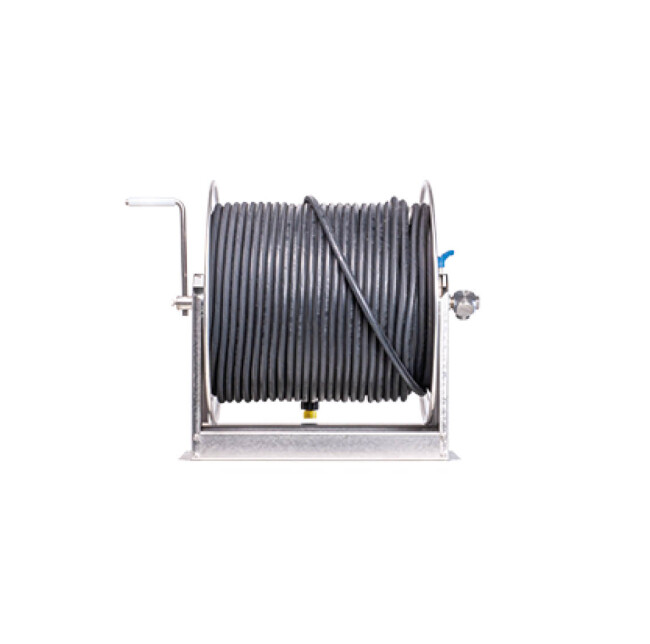

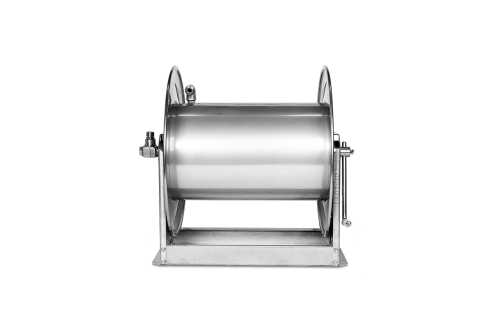

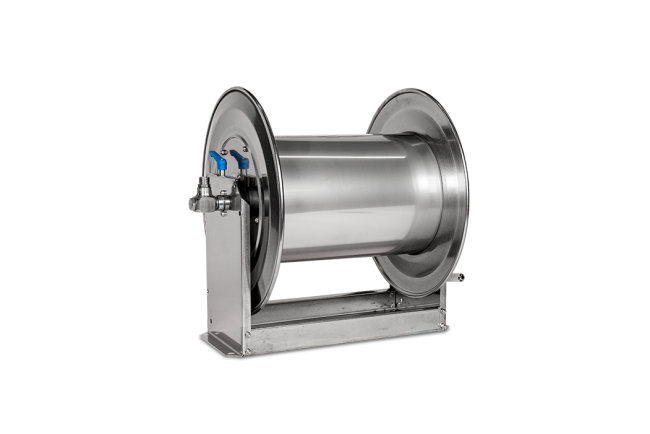

SOLA-TECS STH-250 high-pressure hose reel without trolley offers the option of winding up and carrying high-pressure hoses of up to 200 m in length (NW6). The stainless steel hose reel is very robust and has a high-quality finish. The reel has an almost closed sheet steel hub and runs in maintenance-free plastic bearing bushes. An adjustable hand crank with a free-running polyamide handle is used to turn the reel. A mechanical brake integrated in the bearing enables finely adjustable braking of the drum up to blocking.
Special features
- Very robust
- High hose length capacity
Technical data
- Material: Stainless steel
- Max. pressure: 300 bar
- Max. temperature: -25°C to 110°C
- Max. load capacity: 100 kg
- Hose length NW6 max.: 200 m
- Hose length NW8 max.: 125 m
- Hose length NW10 max.: 100 m
- L/W/H: 460 x 650 x 515 mm
- Weight: 6 kg
- Connection: M22 x 1.5 AG
Scope of delivery
- 1 x SOLA-TECS STH-250 high-pressure hose reel without trolley
