Description

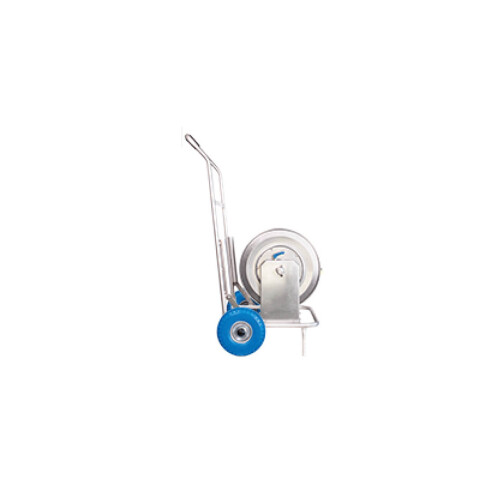

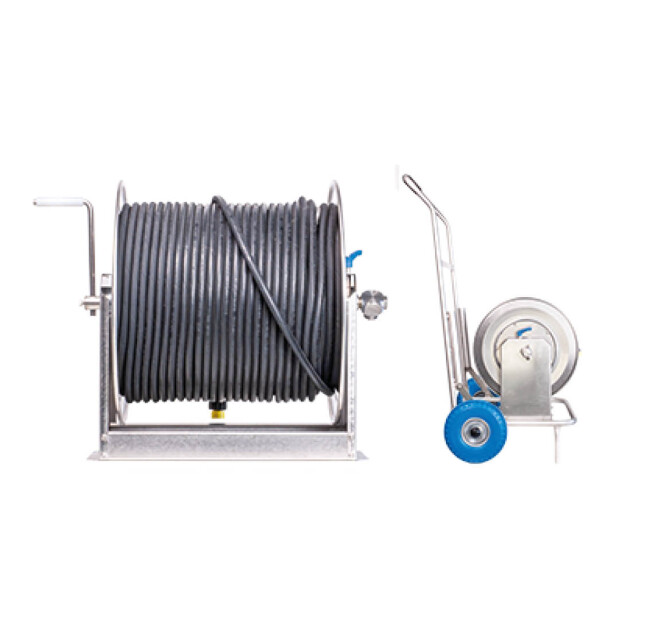

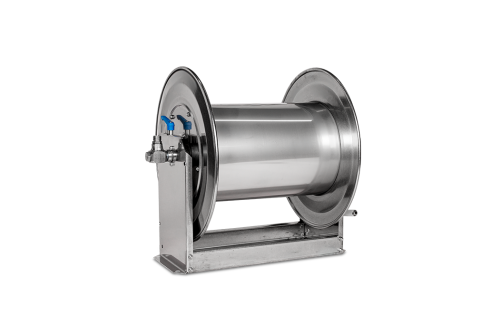

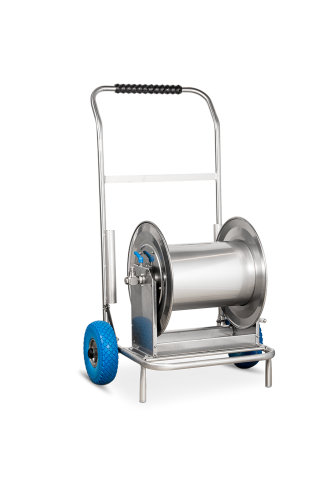

The SOLA-TECS STH-250 high-pressure hose reel offers the option of winding up and carrying high-pressure hoses of up to 200 m in length (NW6). Made of stainless steel, the hose reel is very robust and has a high-quality finish, and is also available with an optional trolley. This is maneuverable and easy to operate like a hand truck. It also has extra-large wheels for off-road use. The drum has an almost closed steel plate hub and runs in maintenance-free plastic bearing bushes. An adjustable hand crank with a free-running polyamide handle is used to turn the drum. A mechanical brake integrated in the bearing allows the drum to be braked in a finely adjustable manner up to blocking.
Special features
- Very robust
- High hose length capacity
Technical data
- Material: Stainless steel
- Max. pressure: 300 bar
- Max. temperature: -25°C to 110°C
- Max. load capacity: 100 kg
- Hose length NW6 max.: 200 m
- Hose length NW8 max.: 125 m
- Hose length NW10 max.: 100 m
- L/W/H (without trolley): 480 x 650 x 515 mm
- Weight (without trolley): 6 kg
- L/W/H (with trolley): 800 x 770 x 1150 mm
- Weight (with trolley): 24 kg
- Connection: M22 x 1.5 AG
Scope of delivery
- 1 x SOLA-TECS STH-250 high-pressure hose reel with or without trolley
