Description

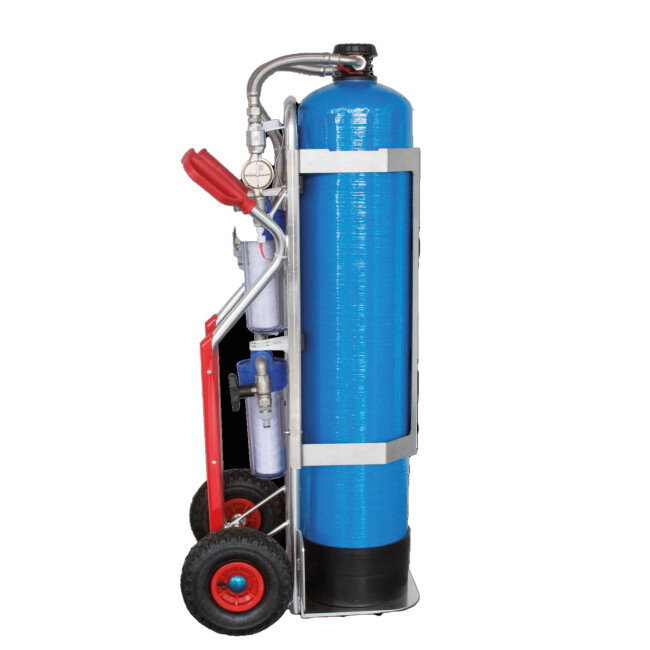

Cleantec's DI resin filter 50 L filled with mixed bed resin for residue-free cleaning of photovoltaic modules with pure water. An all-terrain transport trolley with large rubber wheels and two fine filters with 1 µm - one filter at the inlet and one at the outlet - are included in the scope of delivery. These retain coarse dirt particles in the inlet and resin components in the outlet. This ensures that the PV modules are cleaned without residue.

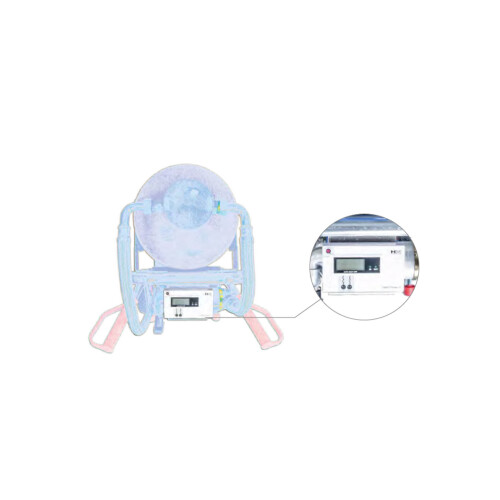

To determine the water quality, the DI resin filter has a TDS meter. This is able to precisely measure the conductivity of the water at the water inlet and outlet. You will also find a water meter to check the flow rate.
If the mixed bed resin runs out, you can change it yourself. Here you can choose between disposable or reusable mixed-bed resin.
Special features
- Residue-free cleaning of PV modules
- Cleaning with fully demineralized ultrapure water
- Gentle cleaning
- TDS meter for determining the conductivity at the water inlet and outlet
Technical data
- Water filter: DI resin filter 50 L
- Operating pressure: 10 bar
- Working capacity 10 °dH: 8,000 liters
- Pure water quality: < 10 µS/cm
- Height/diameter: 120 cm / Ø 25 cm
- Operating weight: 80 kg
- Hose trolley: incl.
- Connections: GEKA Plus
- Operating position: vertical
Scope of delivery
- 1 x Cleantecs DI resin filter 50 L incl.
Transport trolley with large rubber wheels
2 x fine filter
