OSMOBIL TRAILER V2 trailer system without OSMOBIL PRO X

Description

OSMOBIL TRAILER V2 trailer system without OSMOBIL PRO X is aimed at the many users who already own an OSMOBIL PRO X and still want a trailer! The price includes us collecting your existing machine from you, converting it slightly and installing it in the trailer.
When you pick up the trailer, you will also get your OSMOBIL PRO X back!

The OSMOBIL TRAILER V2 is the result of almost 15 years of experience in the sale and development of RO for glass, façade and solar cleaning.
The trailer launched in 2024 is aimed at customers who want to be efficient and flexible in the field of osmosis cleaning. At the same time, the trailer does not permanently tie up the capacity of a complete vehicle and enables intelligent functions and maximum flexibility in the use of the osmosis unit to serve several construction sites at the same time.

The new system is based on a high-quality trailer from Humbaur with a gross vehicle weight of 1500 kg. This is also a new version with significant improvements in design and air resistance. The trailer is designed for a standardized ball head coupling (ISO 50 mm), the suspension height of which must always be between 35 and 42 cm.
The best available components have been installed and connected to ensure the most flexible use possible and a long service life for the entire system.

The setup now relies on the tried-and-tested OSMOBIL PRO X with a permeate output of up to 410 liters per hour for pure water production.

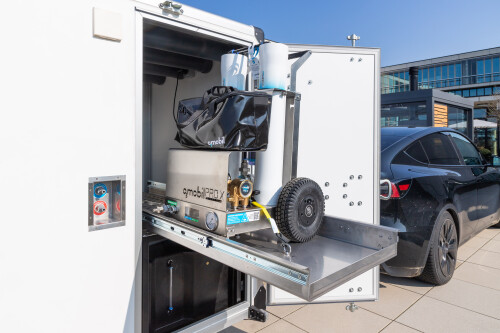

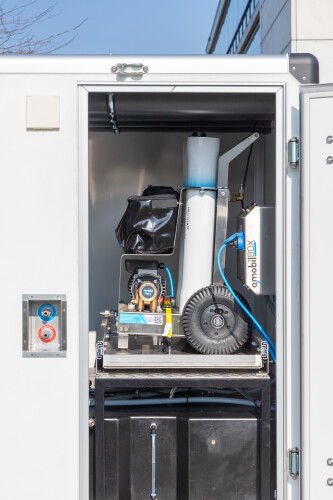

This means that applications such as PV cleaning (large robots or SOLA-TECS W PRO), which require 600 liters of pure water, can be carried out almost without interruption throughout the day (if water is produced in parallel). The OSMOBIL PRO X can be removed from the trailer via an integrated and easily accessible heavy-duty pull-out. This means that several construction sites can be approached at the same time - the osmosis unit can be removed at any time and independently provide water for one person in the glass cleaning area.

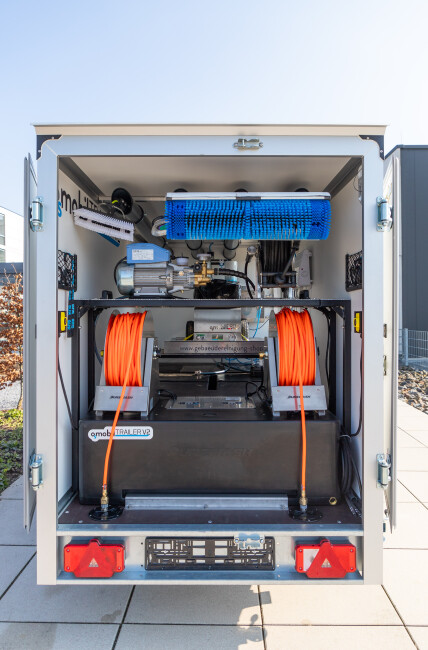

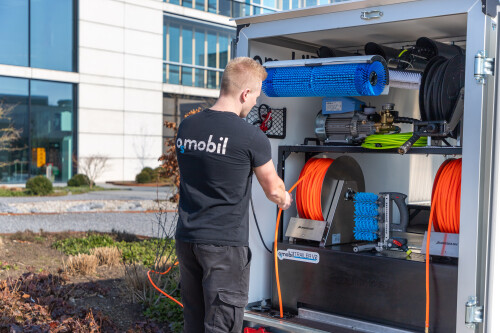

The OSMOBIL BOX, which is permanently mounted in the trailer, controls and fills the integrated and modified 810 liter tank. This allows you to conveniently fill the tank with clean water during rest periods or overnight - everything is controlled automatically. The integrated, separate and remote-controlled pumps, in conjunction with the two 100-meter hose reels, allow two employees to be deployed over a large area with a range of up to 200 meters.
The stainless steel dispensers from our partner Pure-Wash are now even electric, saving even more time and energy when the job is done!

We have tried to think of everything during development!
The best example: the hoses can be fed out of the trailer via an opening flap in the floor and a clever guide roller. The trailer doors can remain closed. This allows you to work safely at a great distance and out of your field of vision without anything being stolen from the trailer. The integrated pole rack under the roof of the trailer (holds up to 4 poles) and various storage compartments for brushes and small parts complete the picture. We have even thought of an electric frost monitor - this protects the water-bearing parts from damage at temperatures below freezing.

As a supplement, we continue to offer the trailer only with the "HD upgrade". In this version, the trailer is supplied with a permanently installed high-pressure unit from Kränzle and a high-pressure hose reel with 20 meters of high-pressure hose. This means you are perfectly equipped for high-pressure applications and rotating washing brushes or the GTR lamella cleaner.

Please note: Your trailer will be manufactured after we receive your order. We will contact you as soon as we receive your order and clarify all further details regarding collection, registration, etc. Please allow 8-12 weeks for delivery until the vehicle is in your yard.

Sponsored by the BG!
Did you know that the BG BAU subsidizes the OSMOBIL TRAILER with an occupational safety premium?
Simply submit the invoice after purchase together with the application to BG BAU and save money!
The contribution-dependent subsidy amount is 30% (max. € 750), the non-contributory subsidy amount is 50% and max. € 1,500. You can find a detailed description of the premium subsidy procedure in the download area or contact us if you have any further questions.
The occupational health and safety premium shown by the BG is subject to change and cannot be guaranteed by the contractor. The contractor only guarantees the basic eligibility of the product in question. It is the responsibility of the client to apply for the subsidy from the BG.

Important: The photos of the machine may show machines and equipment that are not included with the trailer. For example, the SOLA-TECS C and the GTR. We wanted to give as realistic an insight as possible into the trailer's range of functions.
