Description

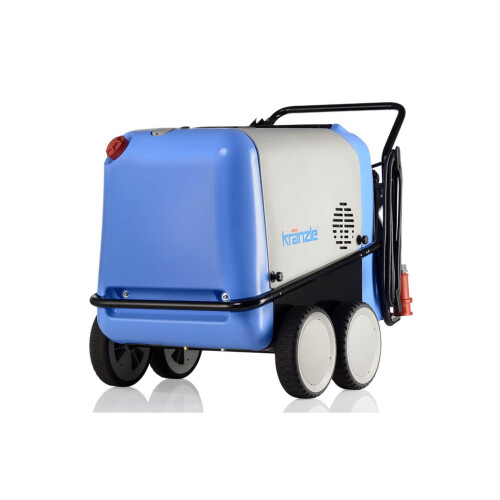

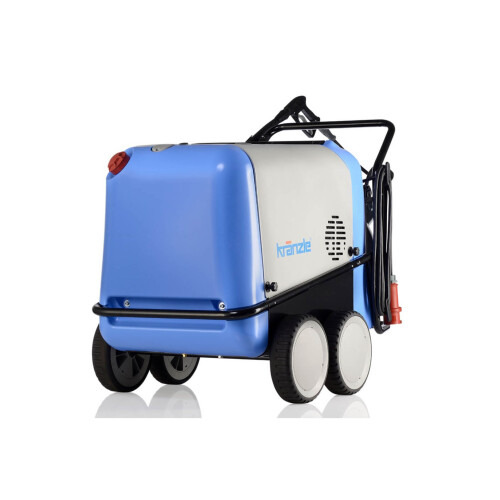

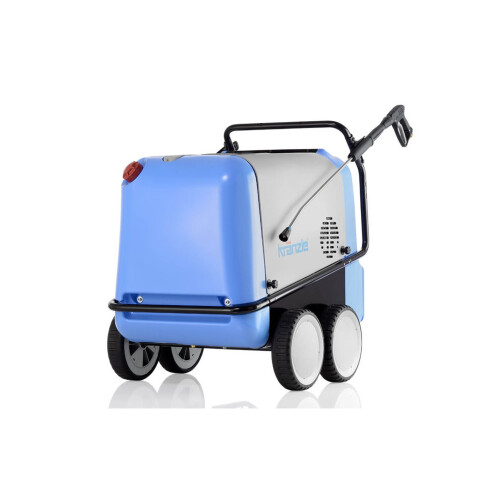

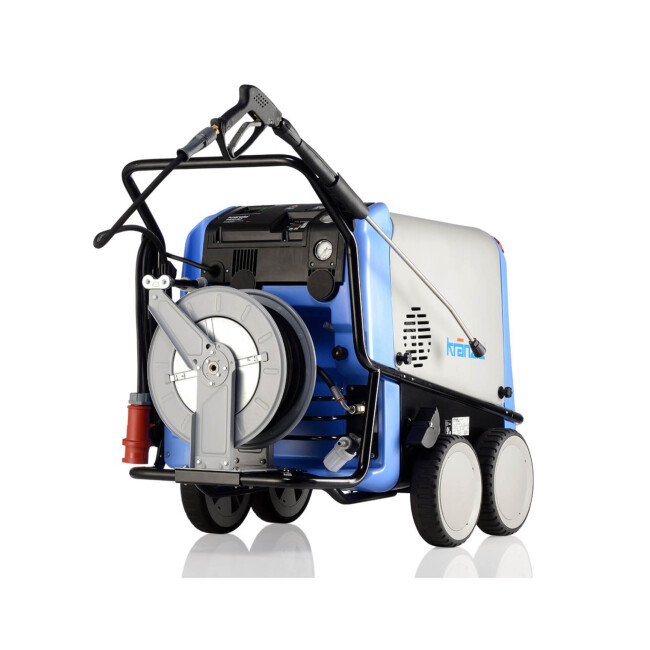

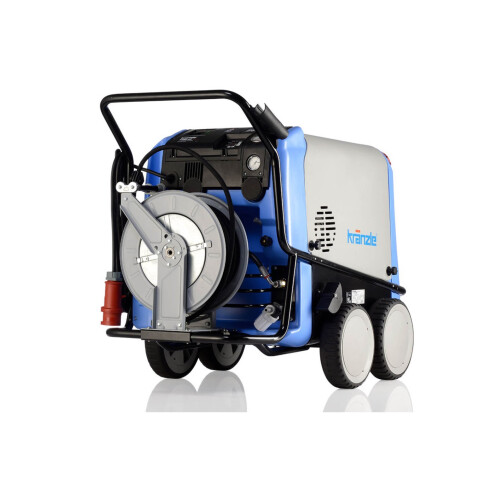

Kränzle hot water high-pressure cleaner therm-RP 1000 ATr combines state-of-the-art technology and first-class washing action at high working pressure, ideal for use in industries such as construction and agricultural machinery, agriculture or animal husbandry. The water temperature and heat output can be measured precisely via the digital control panel and controlled via two operating modes, which ensures precise operation even with partial quantities and low temperatures. Electronic monitors keep an eye on everything at all times: the appliance has a photocell to monitor the burner flame. Thanks to this and the safety devices such as the safety valve and flow monitor, safe operation is always guaranteed, even if you as the user are not in the vicinity. Furthermore, overheating protection measures the temperature of the flue gas opening - if the temperature exceeds 260°, the heater is automatically switched off. Another highlight: the automatic hose reel. The hose is rolled up automatically by means of a return spring inside the reel, while guide rollers allow the hose to be unrolled flexibly in all directions. The quick-change plug-in system and the total stop system with delayed motor shut-off are of course also included with the hot water appliance.
Special features
- Removable hood, easy to service
- Detergent suction, direct -without additional accessories
- Quick-change plug-in system
- Twist-Stop anti-twist protection
- Infinitely variable pressure regulation
- Flow monitor
- combustion chamber pre-ventilation
- Burner stop in case of fuel oil shortage
- fuel tank: 35 l
- Total stop system
- Water tank: 12 l volume
- Safety valve to protect against impermissibly high overpressure
- Pressure switch
- Differential pressure switch
- Overcurrent release
- Optical flame monitoring
- Operating hours counter
Technical data
High-pressure cleaner:
- Working pressure: 70 - 200 bar / 7 - 20 MPa
- Water output: 16.6 l/min / 1000 l/h
- Permissible overpressure: 220 bar / 22 MPa
- Motor speed: 1400 rpm
- Connection: 400 V / 3 ~ / 50 Hz / 13.5 A
- Power consumption: 8.0 kW
- Power output: 6.3 kW
- Mains connection cable: 7.5 m
- Plug: CEE 32 A
- Dimensions (L/W/H): 1300 x 800 x 1015 mm
- Weight: 240 kg
Hot water:
- Hot water output: 12 - 80 °C (infinitely variable)
- Steam level max.: 140 °C
- Heating oil consumption max. heating capacity: 6.1 kg/h / 7.1 l/h
- Heating oil consumption ΔT 45°: 5.6 / 6.6 kW
- Heating output: 65 kW
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: Plug-in coupling D12
- Working pressure: 250 bar/ 25 MPa
- Water output: 40 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle high-pressure cleaner hot water therm-RP 1000 ATr included:
- 1 x high pressure hose 20 m (DN8)

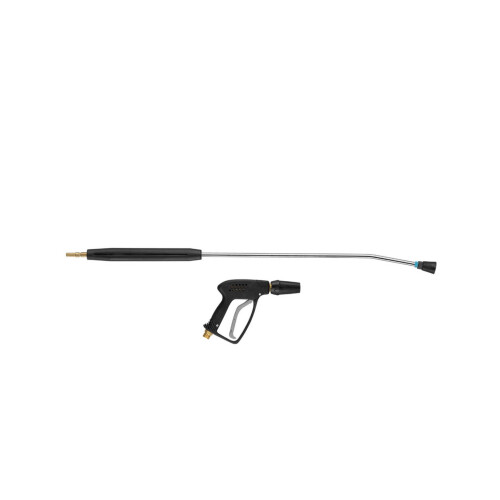

- 1 x Starlet safety shut-off gun, short

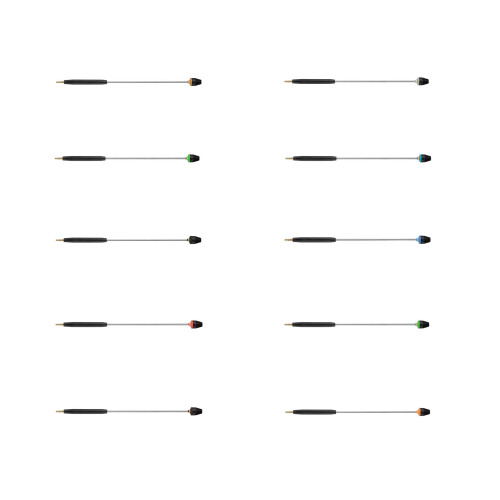

- 1 x lance with flat jet nozzle, 100 cm length, handle shell, 05 nozzle size (turquoise), 25° spray angle
- 1 x water inlet filter
