Description

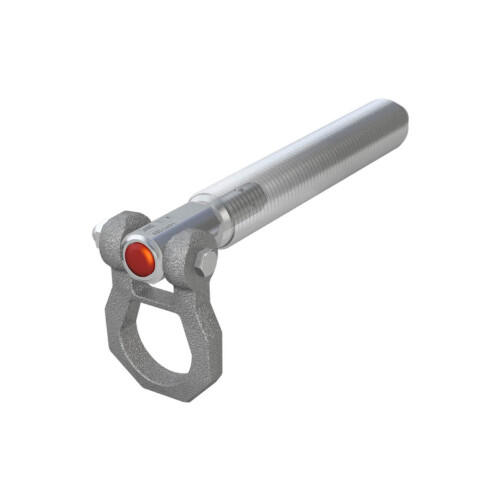

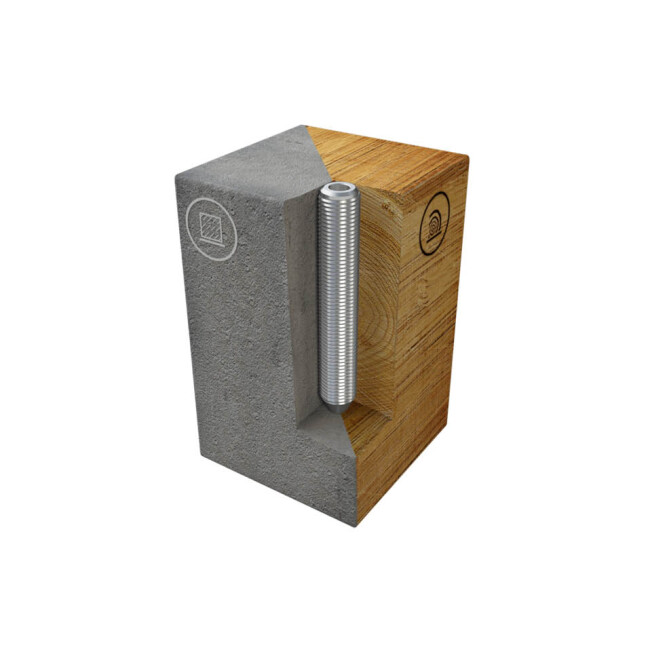

ABS-Lock II stainless steel installation sleeve for screwing into wood is permanently installed in the substrate and can be used with the ABS-Lock I, the removable anchor point. The sleeve, which is screwed into the wood, is available in various lengths. The flush finish of the sleeve ensures undisturbed aesthetics in the room, as does the plastic cover. The system is approved for use and securing by two people and is often used around windows.
Please select the desired sleeve length.
Special features
- Mounted firmly in the substrate
- perfect for use as window fall protection
- removable anchor point - never in the way
Technical data
- Substrate: Wood
- Area of application: window, facade/wall, overhead/ceiling
- Fastening: for screwing in
- Certification: DIBt approval / Ü mark
DIN EN 795:2012, B + CEN/TS 16415:2017
ANSI - Force directions: Transverse and axial load
- Max. Number of users: 2
- Material: Stainless steel
- Beam: min. 140 mm x 140 mm
- Available lengths: 100 mm, 150 mm, 200 mm
- Attention: Axial load of the wooden version only possible with countered version
Scope of delivery
- 1 x ABS-Lock II stainless steel installation sleeve for screwing into wood
incl. plastic plug and cover
