Description

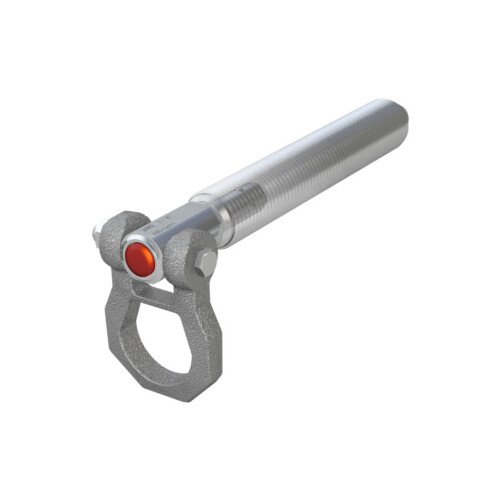

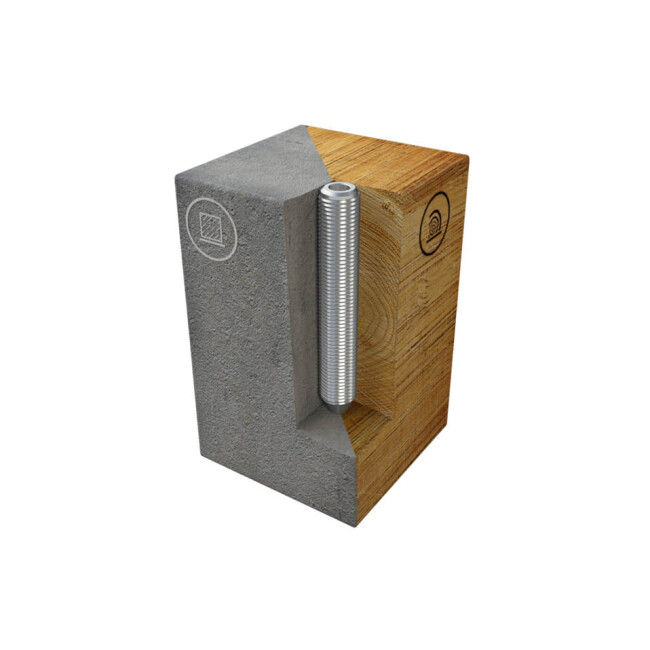

ABS-Lock II for gluing into concrete is a stainless steel installation sleeve that is permanently mounted in the substrate and is the counterpart to the removable ABS-Lock I anchor point. The sleeve is available in various lengths and is glued into concrete. This system is an ideal solution for window fall protection, as the anchorage point can be removed and windows can therefore be opened without any problems. The ABS-Lock II is supplied with a plug for protection when plastering and a plastic cover.
Please select the desired sleeve length.
Product videos Stories
Special features
- Mounted firmly in the substrate
- perfect for use as window fall protection
- removable anchor point - never in the way
Technical data
- Substrate: Concrete
- Area of application: window, facade/wall, overhead/ceiling
- Fastening: for gluing in
- Certification: DIBt approval / Ü mark
DIN EN 795:2012, B + CEN/TS 16415:2017
ANSI - Force directions: Transverse and axial load
- Max. Number of users: 2
- Material: Stainless steel
- Concrete: > C20/25
- Available lengths: 100 mm, 125 mm, 150 mm, 200 mm, 250 mm, 300 mm
Scope of delivery
- 1 x ABS-Lock II stainless steel installation sleeve for gluing into concrete
incl. plastic plug and cover
