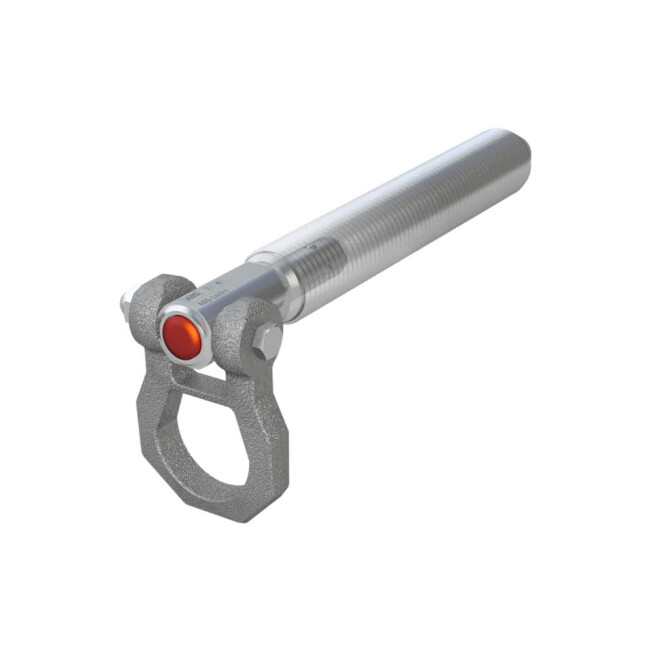

ABS-Lock I removable anchor point

  • Item number: 865
  • GTIN: 0745178701143
  • Removable stainless steel anchor point
  • can be inserted and removed at the touch of a button
  • Ideal for window fall protection

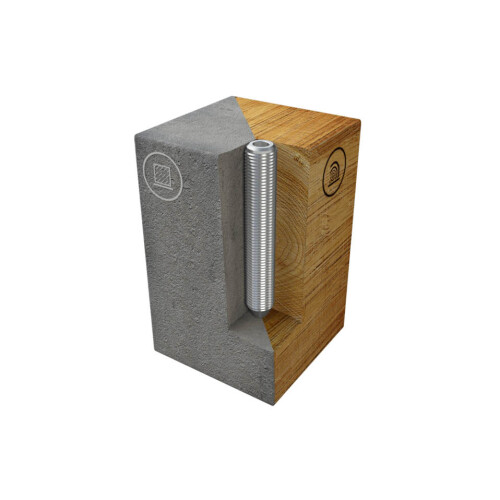

  • can only be used together with the ABS-Lock II installation sleeve
197,00 €
excl. 19% VAT. , plus. Shipping

Description

ABS-Lock I removable anchor point that can be inserted and removed at the touch of a button. In combination with the ABS-Lock II installation sleeves, it can be attached to various surfaces to secure a maximum of 2 users against falling. It is often used around windows and has general building authority approval from the DIBt.
It can easily withstand loads of 2 tons and more as soon as the locking balls of the anchor point lock.

Product videos Stories

Special features

  • Removable at the touch of a button
  • Crossbar protects against accidental opening
  • can be used with ABS-Lock II drive-in sleeve

Technical data

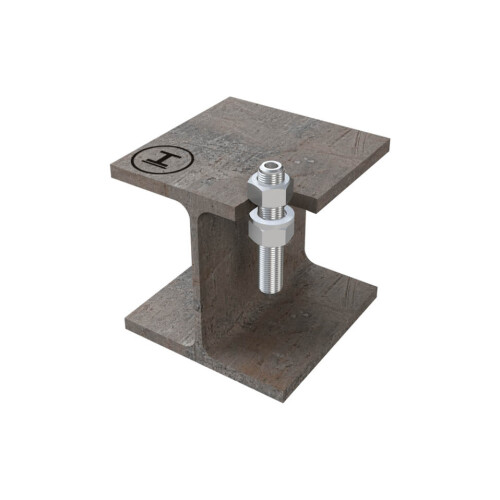

  • Substrate: steel, concrete, wood
  • Area of application: Facade/wall, window, overhead/ceiling
  • Certification: DIN EN 795:20123, B + DIN CEN/TS 16415:2017
    ANSI
  • Force directions: Transverse and axial load
  • Max. Number of users: 2
  • 360 ° rotatable
  • Material: Stainless steel

Scope of delivery

  • 1 x ABS-Lock I - removable anchor point

Downloads

PDF ABS-Lock I Montageanleitung
PDF ABS-Lock I EU-Baumusterprüfbescheinigung
PDF ABS-Lock I Produktbezeichnung
PDF ABS-Lock I Konformitätserklärung
