Description

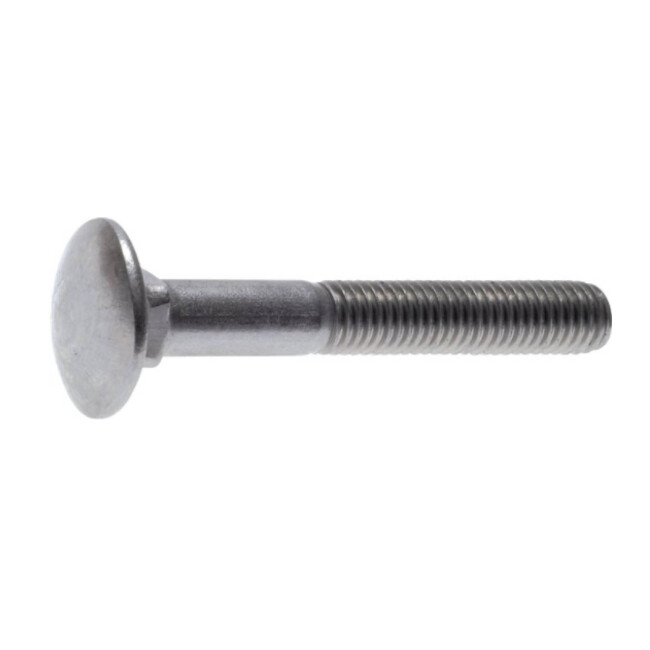

Truss-head bolt DIN 603, M 6x20, stainless steel A" is a suitable replacement bolt for the high-pressure kit for GARDINER telescopic poles for elements 9 and 6.
Special features
- Suitable spare part for the high-pressure kit for GARDINER telescopic poles for element 9 and 6
Technical data
- Material: Stainless steel A2 (without nut)
- d: M6
- l (mm): 20
- b (mm): *
- dk (mm): 16
- f (mm): 4
- k (mm): 3.5
- s (mm): 10
- v (mm): 6
- Weight: 7.4 g
Scope of delivery
- 1 x truss-head bolt DIN 603, M 6x20, stainless steel A2
