Description

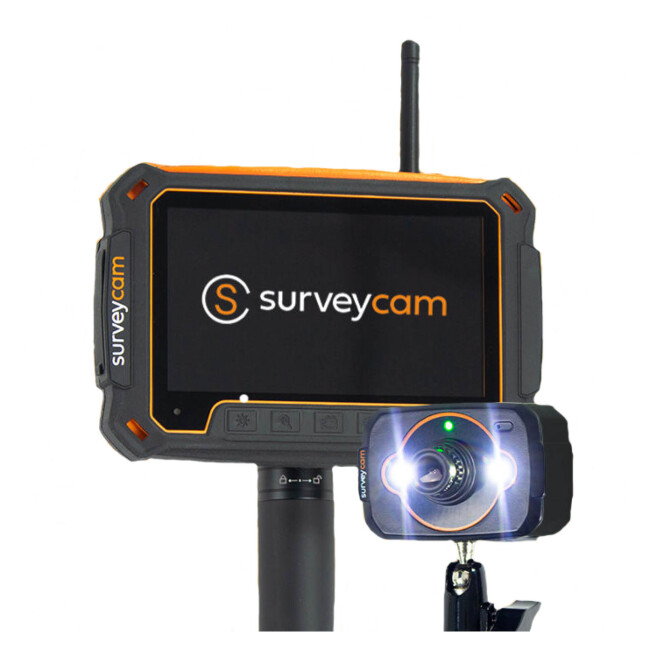

SkyVac HD camera set for gutter and interior cleaning was developed for high-quality and reliable inspection and documentation of hard-to-see areas at great heights at a high level. It consists of a coupled camera and a 5-inch HD monitor with integrated, rechargeable battery and is delivered to you in a protective case including accessories.

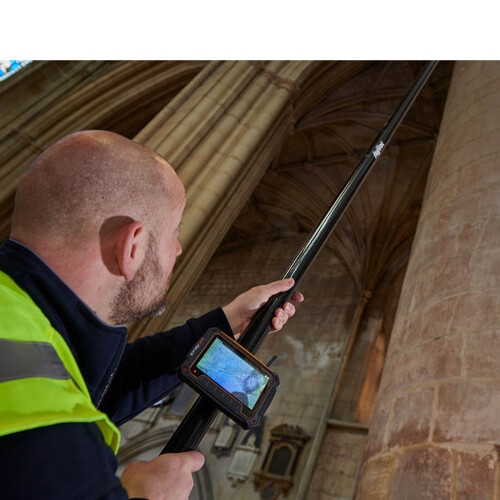

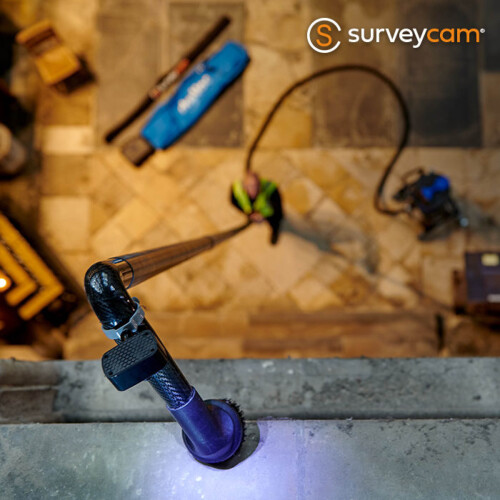

This set provides you with clear, high-quality images and videos in the best HD quality of hard-to-reach areas - whether in gutters or entrance halls - you can inspect these areas under optimum conditions at a distance of up to 100 m. The camera-mounted LEDs give you a clear view of the situation even in dark places with a range of 2 m, while the generous (removable) sunshield protects the screen from sun glare or rain when used outdoors. Ease of use for gutter inspections and work has also been considered: the raised function buttons with clear icons allow you to take pictures and videos while keeping your gloves on - ideal for cold and damp jobs. You can easily attach the monitor to your pole at eye level while the camera is on the gooseneck.
This allows you to carry out "pre-inspections" of the area to be cleaned, but also to carry out cleaning operations much more easily, thoroughly and comfortably.
Product videos Stories
Special features

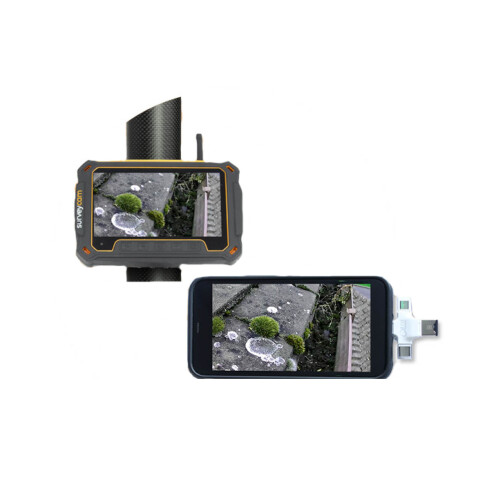

- Images and videos can be transferred to other devices via the TF card reader
- Reliable signal transmission with encrypted frequency transmission
- Incl. protective case for safe transportation to the place of use
- No more dangerous ladder work necessary
- MP4 video files for immediate playback on the screen - or for sharing
Technical data

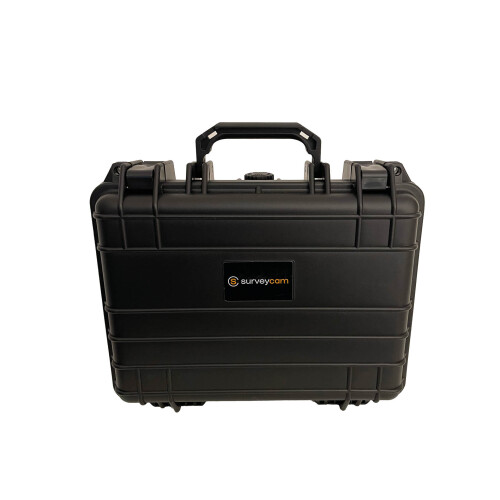

Suitcase:
- Dimensions (L/W/H): 33 x 28 x 12 cm
- Waterproof and lockable
- Foam-protected storage compartments

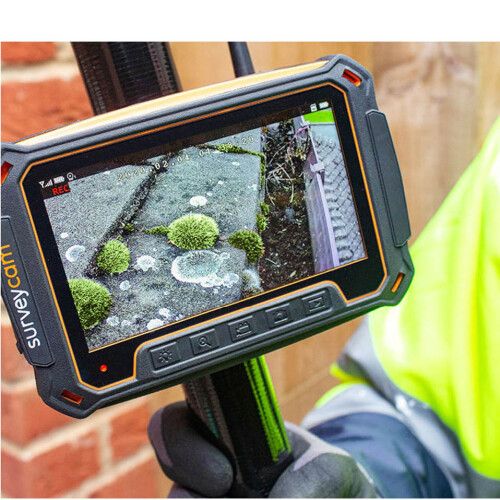

Monitor:
- Screen size: 5 inch TFT-LCD
- Screen resolution: 1280 x 720
- Unobstructed reception range: 100 m
- 3x zoom
- GFSK modulation mode
- Power supply: 5 V (VDC)
- Battery (integrated): 2500 mAh
- Charging time: 3 hours
- Working time (fully charged): 3 hours
- Memory: T-Flash card
- Max. Memory size: 64 GB
- Picture format: 1 x JPEG
- Video format: 1280 x 720 HD - MP4
- Image/video resolution: 720 pixels
- Weight: 255 g
- Dimensions: 15 x 2 x 10 cm
Camera:
- Image sensor: 1/4 inch JX-H62
- Effective pixels: 1280 x 720
- Viewing angle: 45°
- Transmission frequency: encrypted 240 ~ 2483 MHz
- Modulation mode: GFSK
- Unobstructed effective range: 100 m
- White LED light range: 2 m
- Power supply: 5 V (DVC)
- Battery (integrated): 1200 mAh
- Charging time: 2 hours
- Working time (fully charged): 2.5 hours (LED off) / 2 hours (LED on)
- Dimensions (L/W/H): 60 x 40 x 40 mm
- Weight: 65 g
- Weatherproof: IP64 for light showers
Scope of delivery
5-inch HD monitor:
- 1 x antenna
- 1 x 8GB TF card
- 1 x sunshade for the monitor
- 1 x TF card reader
- 1 x black bracket
Camera:

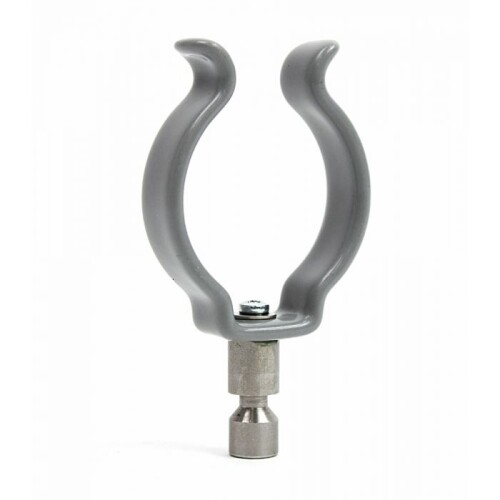

- 1 x camera mount
- 1 x plug adapter
- 1 x car charger
- 2 x USB charging cable
