Description

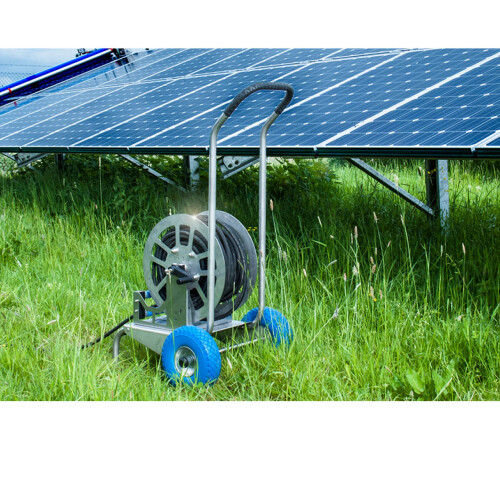

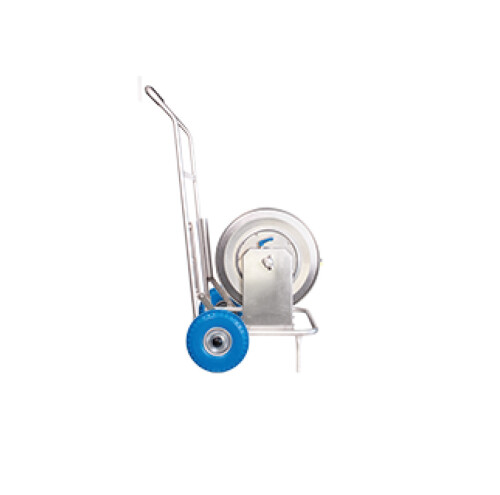

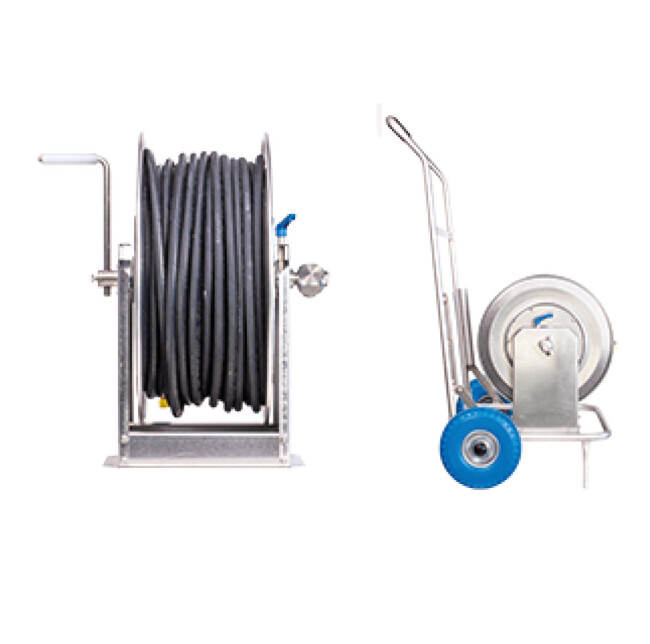

The SOLA-TECS STH-150 high-pressure hose reel is a robust and high-quality stainless steel hose reel and is optionally available with a practical trolley - maneuverable and easy to operate like a hand truck. For off-road use, the trolley has extra-large wheels so that you can drive over hill and dale. Safety is ensured by a mechanical brake integrated in the bearing, which enables finely adjustable braking of the drum up to blocking. The drum has an almost closed steel plate hub and runs in maintenance-free plastic bearing bushes. Thanks to its compact design, the high-pressure hose reel can hold up to 100 m of high-pressure hose (NW6).
Special features
- Very robust
- Compact design
Technical data
- Material: Stainless steel
- Max. pressure: 300 bar
- Temperature: -25° C to 110° C
- Max. load capacity: 100 kg
- Hose length NW6 max.: 100 m
- Hose length NW8 max.: 75 m
- Hose length NW10 max.: 50 m
- L/W/H (without trolley): 460 x 450 x 515 mm
- Weight (without trolley): 5 kg
- L/W/H (with trolley): 800 x 570 x 1150 mm
- Weight (with trolley): 20 kg
- Connection: M22 x 1.5AG
Scope of delivery
- 1 x SOLA-TECS STH-150 high-pressure hose reel with or without trolley
