Description

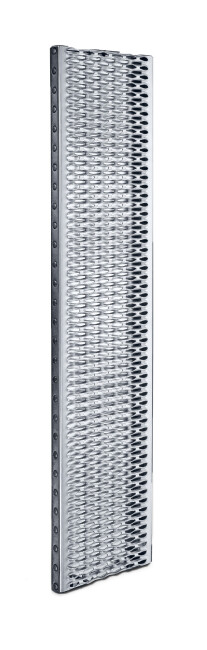

SMB Solar Multiboard 2040 mm is a mobile, lightweight work platform that is ideal for working safely on photovoltaic systems and at the same time reliably protects the solar modules. Weighing just 12 kg, the Multiboard is made of robust aluminum and offers non-slip stability thanks to its special surface structure. This minimizes the risk of accidents and ensures safe working conditions.
In addition to the safety of the worker, the focus is also on protecting the PV modules: the Multiboard protects the modules from damage during installation, maintenance or cleaning - a decisive advantage, as manufacturers generally advise against stepping directly on the modules.

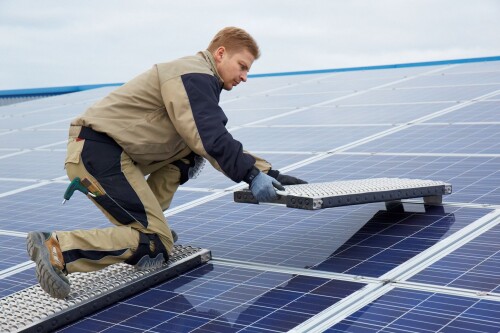

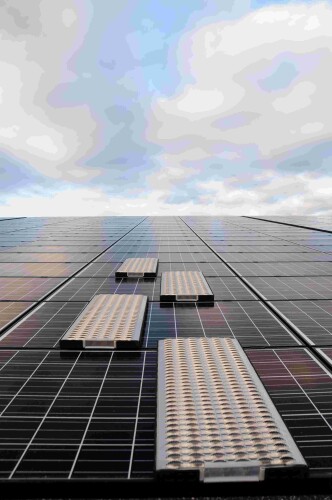

The SMB Solar Multiboard 2040 mm distributes the user's weight evenly over the module surface, avoiding point loads. This significantly reduces the risk of micro-cracks in the solar cells, which could lead to reduced performance or even irreparable damage to the system. It is simply fixed in place by placing and inserting the bracket between two modules - uncomplicated and effective.
Special features
- protects the worker & the PV module
- made of aluminum
- lowers the costs
- made in Germany
Technical data
- Base support: aluminum with anti-slip surface
- Protective layer: UV-resistant PE, glued & mechanically fastened

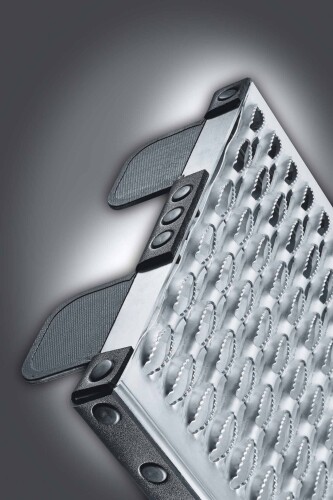

- Lugs: Aluminium incl. vulcanized rubber coating
- Thickness of tab: 6 mm
- Insertion depth in spacer gap: 55 mm
- Handle (centered at the lower end): 150 x 30 mm (WxH)
- Load: max. 150 kg (one person per board)
- Roof pitch (overall average): up to 40° (according to DIN 51 130)
- Board (LxWxH): 2040 x 400 x 60 mm
- Weight: 12 kg
Scope of delivery
- 1 x SMB Solar Multiboard 2040 mm
