Description

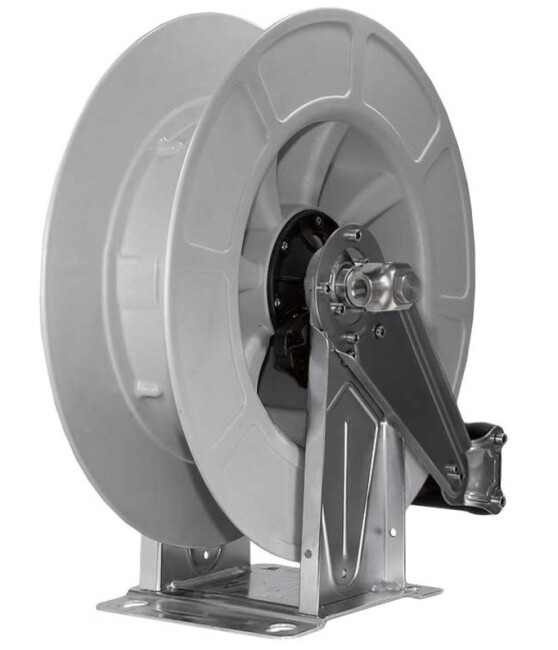

OSMOBIL HD Trailer automatic HD hose reel is also installed in the OSMOBIL Trailer and offers an efficient and time-saving option for 20 meters of HD hose (NW8) to save set-up time and to use the hose cleanly and without twisting. The internal telescopic hose for the SOLA-TECS CSOLA-TECS HD hose 25m internal) also fits on this reel due to the lower nominal diameter (NW6) with a length of 25 meters!The automatic function conveniently retracts the hose at the end of the job.
As this product has now been established in the OSMOBIL trailer for years, we now also offer this professional part separately.
The hose is inserted and connected using M22 external threads.
Special features
- Extremely robust
- incl. automatic feed
Technical data
- approx. 13 kg weight
- for 20 meter hose NW8
- for 25 meter hose NW 6
- Hose connection: M22 AG
- Connection inlet: M22 AG
- up to 300 bar
- up to 90°
- Dimension 1: 460 mm / Dimension 2: 420 mm / Dimension 3: 140 mm / Dimension 4: 186 mm
Scope of delivery
- 1 x dispenser
