Description

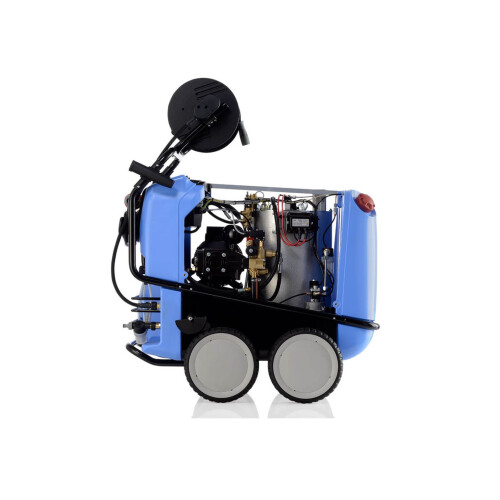

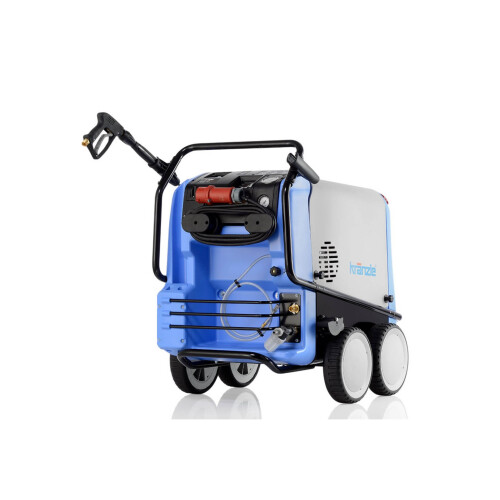

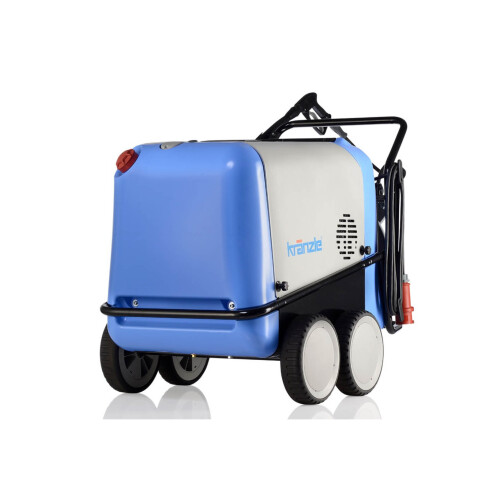

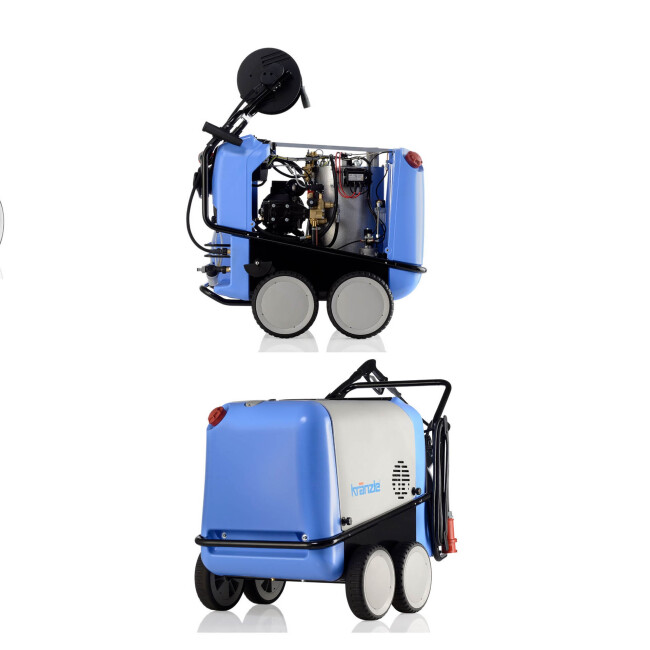

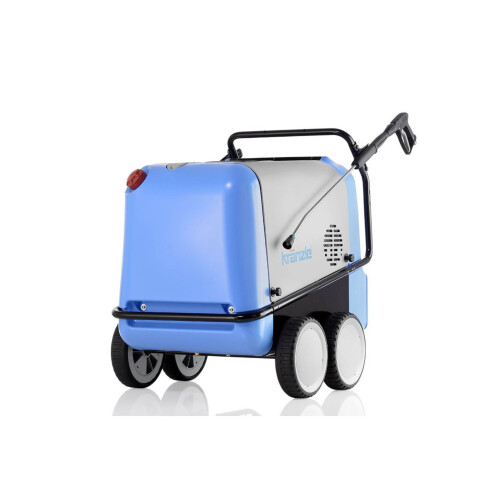

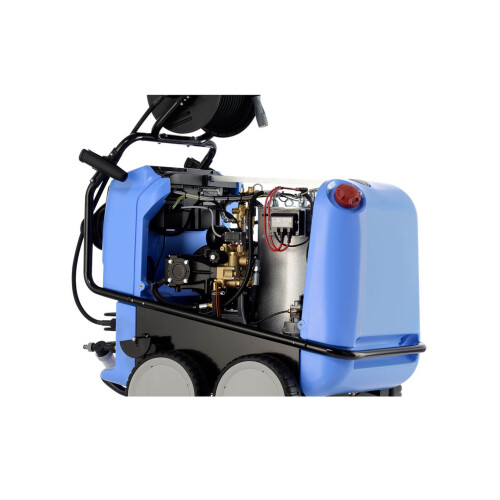

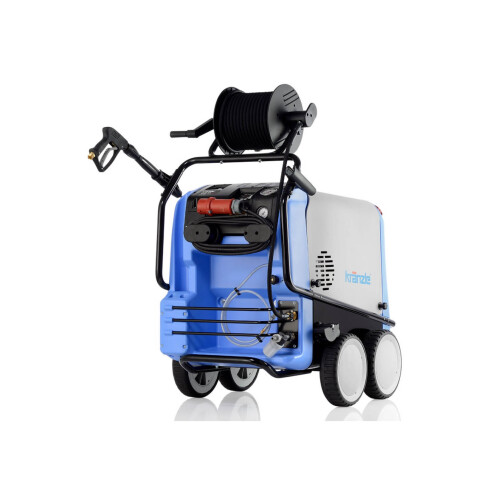

With its new in-line pump, the Kränzle therm-RP 1600 hot water high-pressure cleaner offers a water output of up to 1600 l/min and is therefore perfect for applications where a high washing effect at high working pressure is required.
The highlights at a glance:
- Combustion chamber: the outstanding thermal efficiency guarantees low fuel oil consumption and low emissions
- Safety valve: protects against impermissibly high overpressure
- Flow monitor: prevents the heating chamber from overheating in the event of a lack of water
- Pressure switch: only releases combustion when working pressure is present
- Differential pressure switch: controls the automatic switch-off if the safety shut-off gun remains closed for 30 seconds
- Overcurrent trigger: switches off the high-pressure cleaner in the event of excessive power consumption
- Optical flame monitoring: switches off the fuel supply when the burner flame goes out
- Pressure control valve: enables infinitely variable regulation of the water volume and water pressure, as well as unpressurized bypass operation
- Thermostat control in °C (operating mode 1): a thermostat measures the temperature at the end of the heating coil and controls the burner until the desired temperature is reached (the ACTUAL temperature is shown on the display)
- Burner output in % (operating mode 2): the burner is switched on and off at a corresponding cycle frequency based on the set percentage (setpoint value). The water temperature at the end of the heating coil is shown in °C as the ACTUAL value. Advantage: water temperature maintained to the degree (+/-1°C), even when operating with partial quantities and low temperatures
- Operating hours counter: simple determination of service intervals
- and much more.

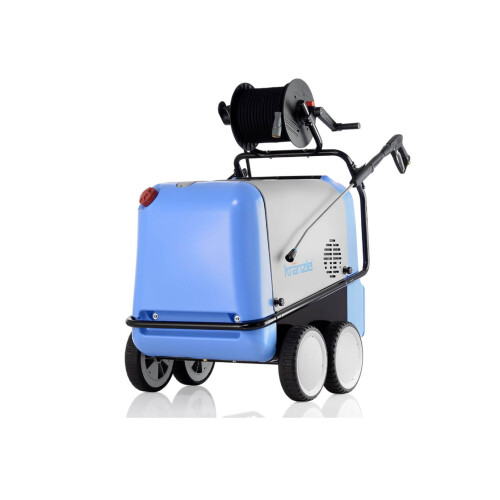

This high-pressure cleaner is available with or without an integrated hose reel and optionally with a stainless steel heating coil. Please select the model you require.
Special features
- Quick-change plug-in system
- Twist-Stop anti-twist protection
- First-class flushing effect at high working pressure
- Kränzle in-line pump
- Detergent suction - direct and without additional accessories
- organizing system
- Digital temperature regulation
- Parking brake
- Service-friendly, removable hood
- Monitoring of safety-relevant functions
- Infinitely variable pressure regulation
- Direct suction: 2.5 m suction height
- Flow monitor
- Burner stop in case of fuel oil shortage
- Operating hours counter
- Fuel tank: 35 l
- Combustion chamber pre-ventilation
Technical data
High pressure cleaner:
- Working pressure: 70 - 150 bar / 7 - 15 MPa
- Water output: 26.7 l/min / 1600 l/h
- Permissible overpressure: 170 bar / 17 MPa
- Motor speed: 1400 rpm
- Connection: 400 V / 3 ~ / 50 Hz / 14.3 A
- Power consumption: 8.0 kW
- Power output: 6.3 kW
- Mains connection cable: 7.5 m
- Plug: CEE 32 A
- Dimensions (L/W/H):
1050 x 800 x 1015 mm (without hose reel)
1050 x 800 x 1300 mm (with hose reel) - Weight: 210 / 218 kg
Hot water:
- Hot water output: 12 - 80 °C (infinitely variable)
- Steam level max.: 140 °C
- Heating oil consumption max. heating capacity: 7.7 kg/h / 9.2 l/h
- Heating oil consumption ΔT 45°: 5.6 / 6.6 kW
- Heating output: 84 kW
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: Plug-in coupling D12
- Working pressure: 250 bar/ 25 MPa
- Water output: 40 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle high-pressure cleaner hot water therm-RP 1600 included:
- 1 x high pressure hose 10 / 20 m (DN8)

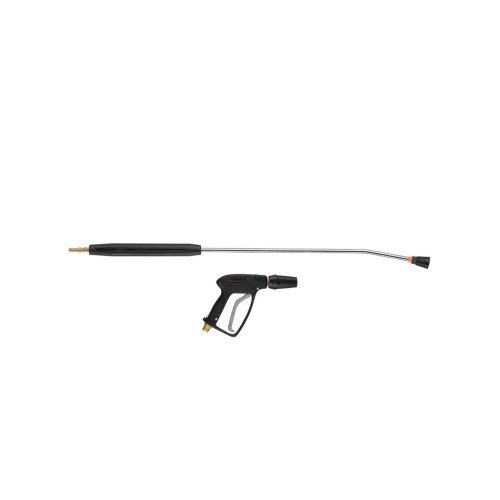

- 1 x Starlet safety shut-off gun, short
- 1 x lance with flat jet nozzle, 100 cm length, handle, 11 nozzle size (orange), 25° spray angle
- 1 x water inlet filter
