Kränzle high-pressure cleaner hot water therm CA 12/150

With us, you can easily lease or finance. We offer attractive conditions through our partners Albis and PEAC.

  • Item number: 812
  • Entry-level model with all important basic functions
  • Analog temperature regulation
  • flow monitor
  • combustion chamber pre-ventilation
  • Fuel tank: 25 l
  • Available with or without hose reel
  • Working pressure: 30-150 bar
  • Water output: 12 l/min
  • Weight: 159 / 164 kg
Hose reel
Article currently out of stock
  • Article out of print
Contract period Monthly rate
24 Months 166,30 € *
30 Months 138,16 € *
36 Months 115,50 € *
42 Months 101,97 € *
48 Months 90,28 € *
54 Months 84,07 € *
60 Months 76,02 € *
To use the installments, you must select the leasing payment method in the checkout.

The choice is yours. Use two strong partners by your side. We will inquire with both for you and, in case of doubt, select the cheaper provider for you.

Leasing
Payment of the installment for the use of the goods. The goods remain the property of the leasing company.

Financing / Hire Purchase
Similar to a loan, the goods become your property after payment of the last installment.

Non-binding estimate

Description

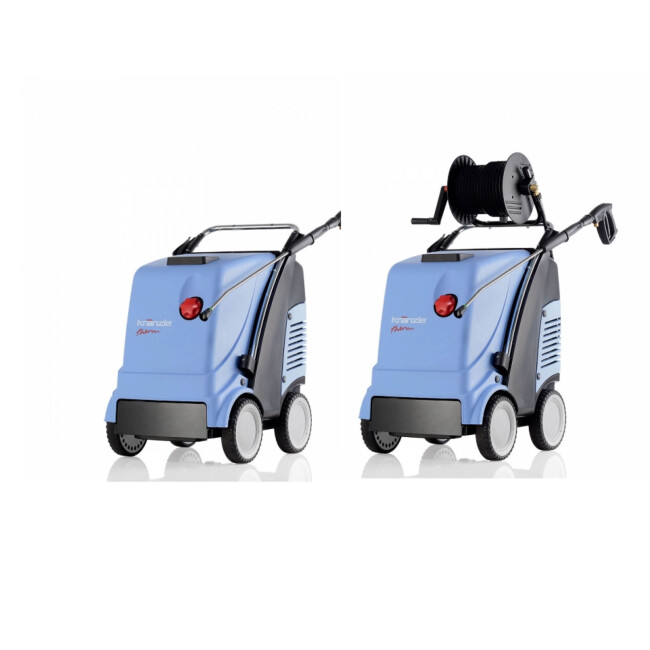

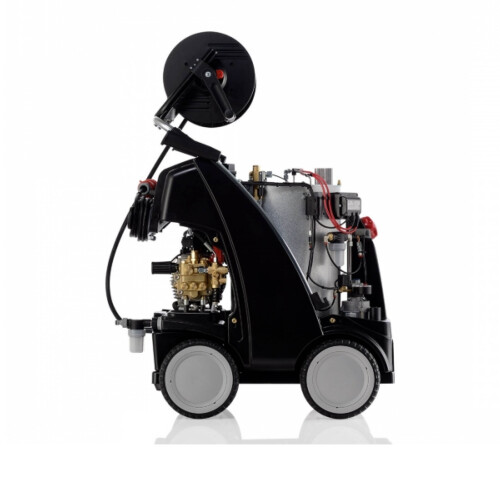

Kränzle high-pressure cleaner hot water therm CA 12/150 - your entry-level model into the world of hot water high-pressure cleaners with increased cleaning power and disinfecting effect. This model offers all the important basic functions: compact design, front and rear impact protection, working pressure up to 150 bar, solid rubber tires, flow monitor and much more. You can regulate the water temperature on the control panel and the mechanical components are always protected thanks to the removable hood. The cleaning lance and high-pressure gun can be stored in the storage system and can therefore be taken anywhere. The parking brake ensures that the 4-wheeled high-pressure cleaner stays in place every time it is used. This model is available with or without a convenient hose reel with folding crank handle.

Special features

  • All-terrain chassis
  • Infinitely variable working pressure
  • Clearly arranged control panel for regulating the water temperature
  • Flow monitoring
  • combustion chamber pre-ventilation
  • Removable hood
  • Parking brake
  • tidying system
  • ram protection

Technical data

High-pressure cleaner:

  • Working pressure: 30 - 150 bar / 3 - 15 MPa
  • Water output: 12 l/min / 720 l/h
  • Permissible overpressure: 165 bar / 16.5 MPa
  • Motor speed: 1400 rpm
  • Connection: 400 V / 3 ~ / 50 Hz / 7.2 A
  • Power consumption: 3.8 kW
  • Power output: 3.0 kW
  • Mains connection cable: 7.5 m
  • Fuel tank with supply monitoring: 25 l
  • Dimensions (L/W/H):
    860 x 580 x 970 mm (without hose reel)
    860 x 580 x 1220 mm (with hose reel)
  • Weight: 159 / 164 kg

Hot water:

  • Hot water output: 12 - 80 °C (infinitely variable)
  • Steam level max.: 140 °C
  • Heating oil consumption max. heating capacity: 5.4 kg/h / 6 .4 l/h
  • Heating oil consumption ΔT 45°: 3.5 / 4.1 kW
  • Heating output: 58 kW

Safety shut-off gun:

  • Inlet: M22x1.5AG
  • Outlet: Plug-in coupling D12
  • Working pressure: 207 bar/ 27 MPa
  • Water output: 30 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle high-pressure cleaner hot water therm CA 12/150 included:
  • 1 x high pressure hose 10 / 15 m (DN8)

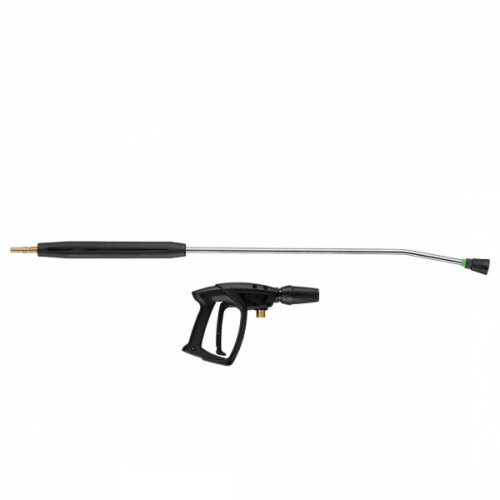

  • 1 x safety shut-off gun M2000, short
  • 1 x lance with flat jet nozzle, 100 cm length, handle, 045 nozzle size (green), 25° spray angle
  • 1 x water inlet filter

Downloads

PDF Kränzle Hochdruckreiniger Heisswasser therm CA 12/150 - Betriebsanleitung
PDF Kränzle Hochdruckreiniger Heisswasser therm CA 12/150 - Datenblatt
