Description
Kränzle cold water high-pressure cleaner HD 7/122 TS impresses with its versatility, a handy and compact design as well as its robust suitability for everyday use. The high-pressure cleaner also impresses with its slow-running, quiet and durable 4-pole electric motor, which ensures that this professional device is one of the quietest in its class.
The quick-change plug-in system ensures a simple and safe connection of the safety shut-off gun to the lance and the working pressure is infinitely variable thanks to the pressure regulation. For stubborn dirt, the high-pressure cleaner even allows the use of special cleaning agents thanks to the injector process.
Another highlight of this series: the total stop system: energy consumption down, service life up: to reduce the load on the high-pressure pump and drive, the motor switches off automatically when the high-pressure gun is closed.
But everything has also been thought of in the design: compact, quick to hand with a stainless steel handle and space-saving.
Special features
- Quick-change plug-in system D12
- Use of cleaning agent possible
- Total stop system
- Pressure regulation
- Compact design
Technical data
High-pressure cleaner:
- Working pressure: 30 - 120 bar | 3 - 12 MPa
- Water output: 7 l/min | 420 l/h
- Permissible overpressure: 135 bar | 13.5 MPa
- Motor speed: 1400 rpm
- Connection: 230 V | 1 ~ | 50 Hz | 7.5 A
- Power consumption: 1.6 kW
- Power output: 1.0 kW
- Mains connection cable: 5 m
- Dimensions (L/W/H): 440 x 200 x 330 mm
- Weight: 23 kg
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: D12 plug-in coupling
- Working pressure: 207 bar/ 27 MPa
- Water output: 30 l/min
- Max. temperature: 150
Scope of delivery

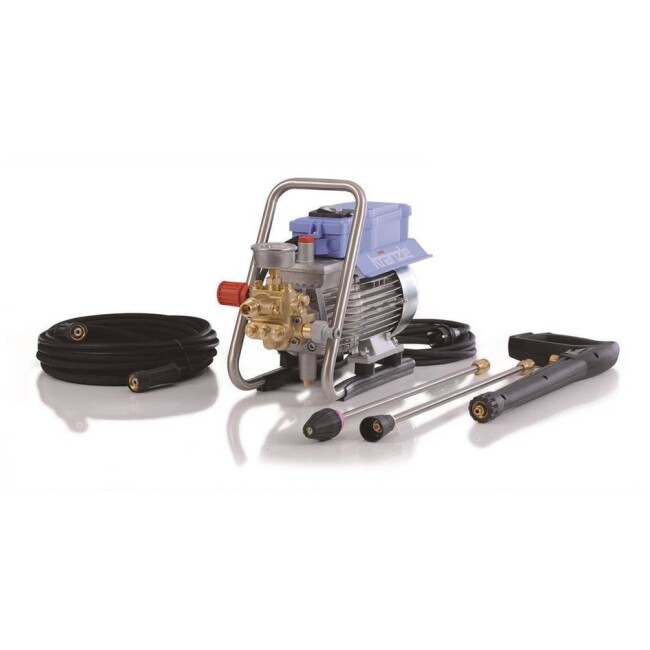

- 1 x Kränzle cold water high-pressure cleaner HD 7/122 TS included:
- 1 x high pressure hose 10 m (DN6)
- 1 x safety shut-off gun M2000 - long
- 1 x lance with flat jet nozzle, 028 nozzle size (pink), 50 cm length, 20° spray angle
- 1 x lance with dirt killer, 028 nozzle size (pink), 50 cm length
