Description

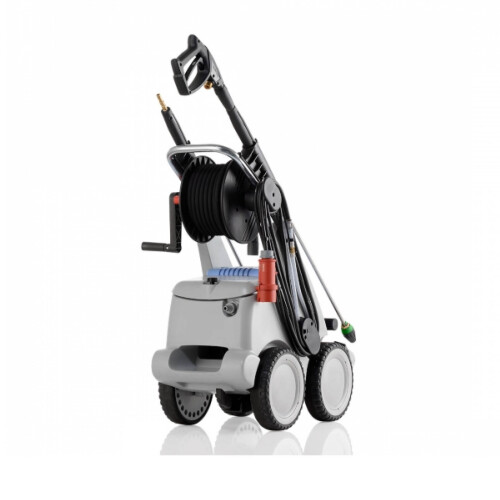

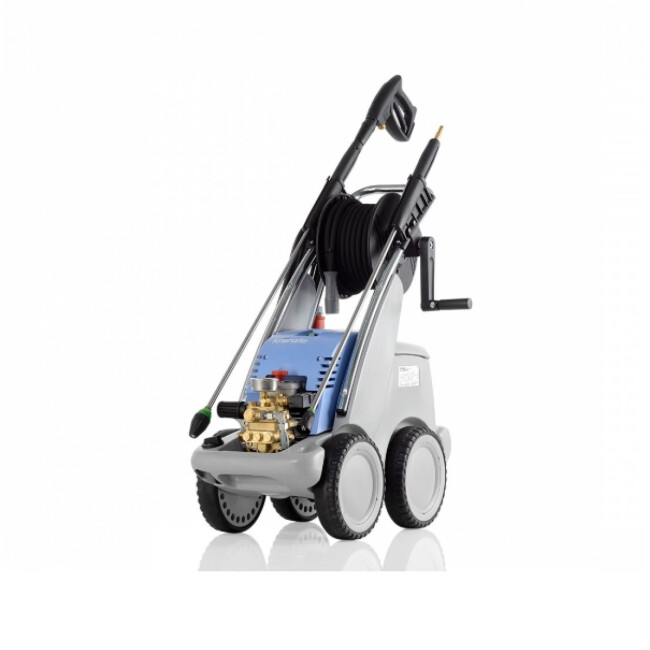

Kränzle cold water high-pressure cleaner quadro 799 TST: powerful and robust with all-terrain chassis on 4 wheels and solid rubber tires that easily overcome any obstacle during operation.
Frequent switching on and off of the motor leads to heavy loads on the power supply and increased wear on devices of this size. But Kränzle has also developed a solution to this problem: After closing the gun, the pump operates in bypass for a further 30 seconds, only then does the motor of this appliance switch off. The integrated water tank with a volume of 10 l also serves to protect against damage to the high-pressure pump (in the event of a water shortage), as does the front ram protection. Of course, this model also features the quick-change plug-in system, a convenient hose reel, a large stainless steel pressure gauge and practical holders for cleaning lances and a high-pressure gun.
Special features
- Quick-change plug-in system D 12
- Total stop system with delayed motor shutdown
- Safety cut-out
- Pressure regulation: Infinitely variable working pressure
- Detergent suction
- Parking brake
- Water tank: volume 10 l
- ram protection
- Oversized gearbox and oil housing
Technical data
High-pressure cleaner:
- Working pressure: 30 - 180 bar | 3 - 18 MPa
- Water output: 13 l/min | 780 l/h
- Permissible overpressure: 200 bar | 20 MPa
- Motor speed: 1400 rpm
- Connection: 400 V | 3 ~ | 50 Hz | 8.5 A
- Power consumption: 5.5 kW
- Power output: 4.0 kW
- Mains connection cable: 7.5 m
- Dimensions (L/W/H): 780 x 395 x 870 mm
- Weight: 63 kg
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: D12 plug-in coupling
- Working pressure: 207 bar/ 27 MPa
- Water output: 30 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle cold water high-pressure cleaner quadro 799 TST with integrated hose reel included:
- 1 x high pressure hose 20 m (DN6)

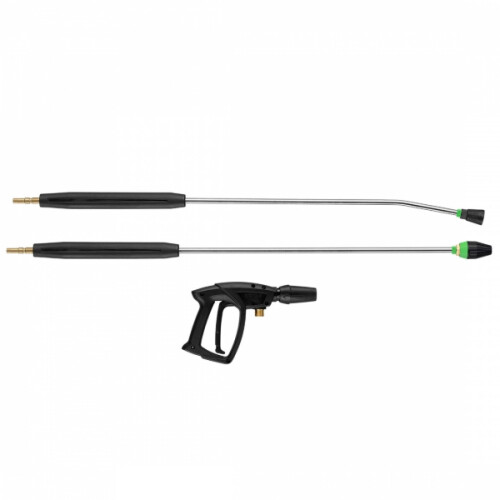

- 1 x safety shut-off gun M2000, short
- 1 x lance with flat jet nozzle, 100 cm long, handle, 045 nozzle size (green), 25° spray angle
- 1 x lance with dirt killer, 100 cm length, handle, 045 nozzle size (green)
