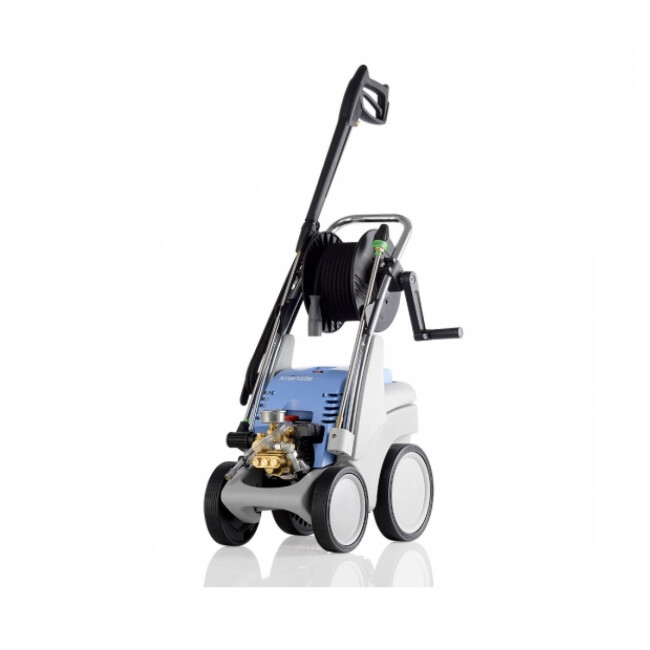

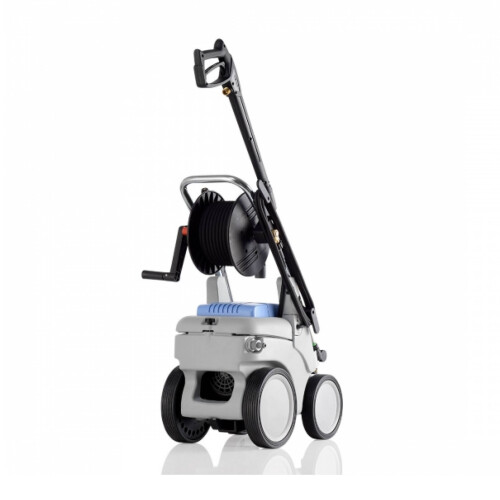

Kränzle cold water high-pressure cleaner quadro 11/140 TST: compact and all-terrain with double-axle chassis and on 4 wheels - perfect for applications that require frequent relocation. The parking brake always ensures a secure footing during use.
As with the Profi series, only the best quality is used in this model, such as the oversized gearbox and oil housing, which significantly extend the service life in tough continuous use. The integrated hose reel with folding crank handle is also part of the standard equipment here, as are the robust impact protection and the integrated water tank. The appliance also has an automatic switch-off function (total stop system) to reduce wear and tear and protect all components. Once you have started up your appliance using the main switch, the motor starts automatically when the high-pressure gun is activated - when the gun is closed, the appliance is switched off by a pressure switch. The safety shut-off gun included in the scope of delivery and the lance with flat jet nozzle and dirt killer round off the cleaning equipment perfectly.
Special features
- Convenient hose reel with folding crank handle
- impact protection
- organizing system
- Quick-change plug-in system D12
- Total stop system
- Pressure regulation
- Detergent suction
- Water tank: Volume 5l
Technical data
High-pressure cleaner:
- Working pressure: 30 - 140 bar | 3 - 14 MPa
- Water output: 11 l/min | 660 l/h
- Permissible overpressure: 155 bar | 15.5 MPa
- Motor speed: 1400 rpm
- Connection: 230 V | 1 ~ | 50 Hz | 14 A
- Power consumption: 3.3 kW
- Power output: 2.4 kW
- Mains connection cable: 5 m
- Dimensions (L/W/H): 590 x 360 x 850 mm
- Weight: 47 kg
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: D12 plug-in coupling
- Working pressure: 207 bar/ 27 MPa
- Water output: 30 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle cold water high-pressure cleaner quadro 11/140 TST with integrated hose reel included:
- 1 x high pressure hose 15 m (DN6)

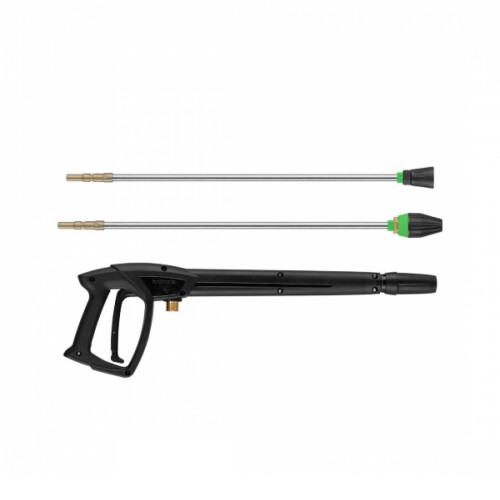

- 1 x safety shut-off gun M2000 - long
- 1 x lance with flat jet nozzle, 045 nozzle size (green), 50 cm long, 20° spray angle
- 1 x lance with dirt killer, 045 nozzle size (green)
