Description

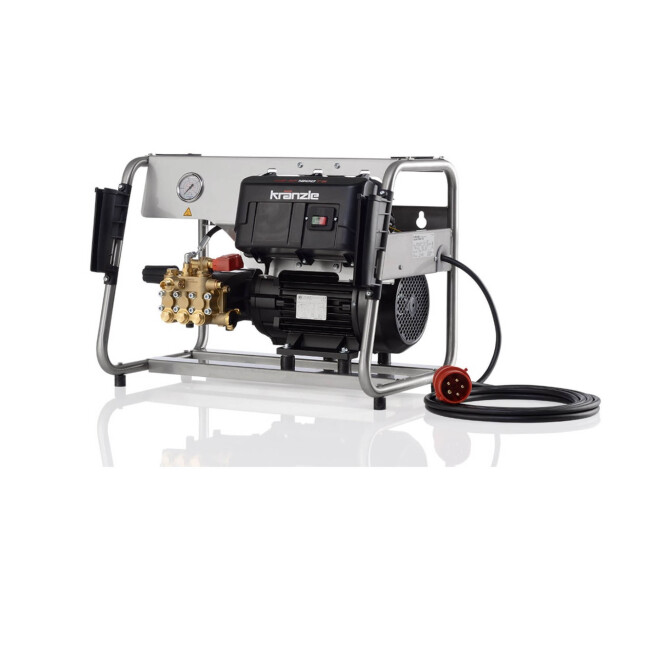

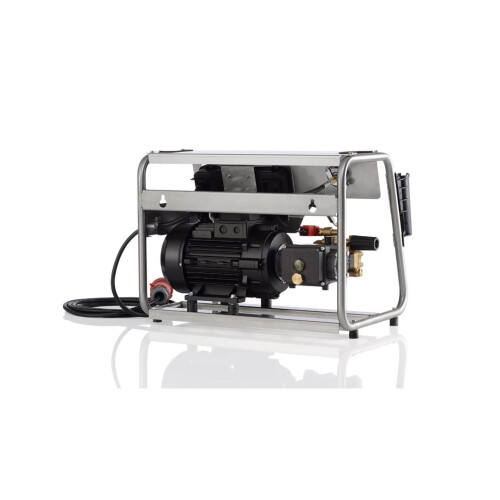

Kränzle cold water high-pressure cleaner WS(C)-RP 1400 TS with in-line pump technology and high flushing effect for perfect cleanliness and maximum efficiency when working. Whenever a high flushing effect is required, the Kränzle power packs with in-line pump are in their element - perfect for agriculture or animal husbandry, construction or industry. Especially in confined spaces, this cold water professional can be used optimally, whether as a stand-alone unit or for wall mounting - you decide! The advantages of the new in-line pump at a glance:
- Pump as a separate unit
- Can be used with various engine sizes
- Stable crankshaft with connecting rods lubricated in an oil bath
- Large oil volume
- Power transmission as in a car engine via crankshaft, connecting rod and plunger
- Forced return of the plunger

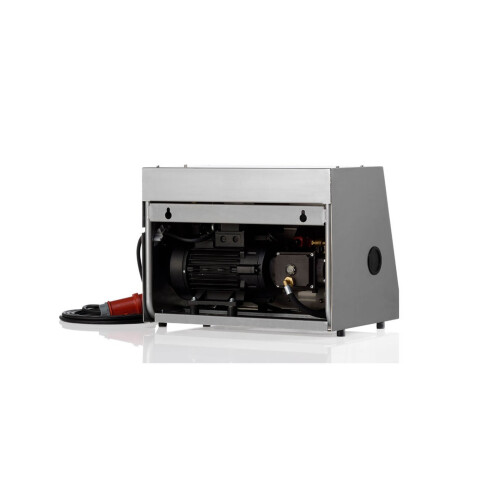

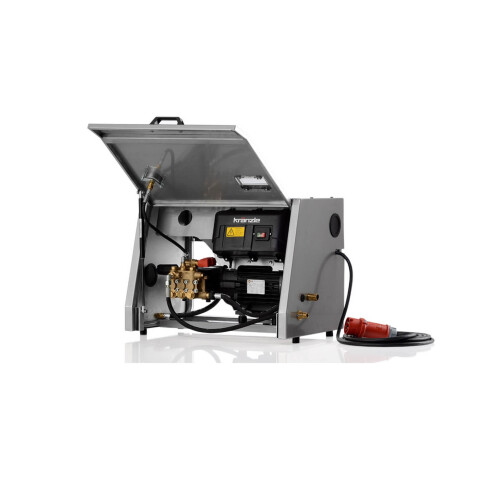

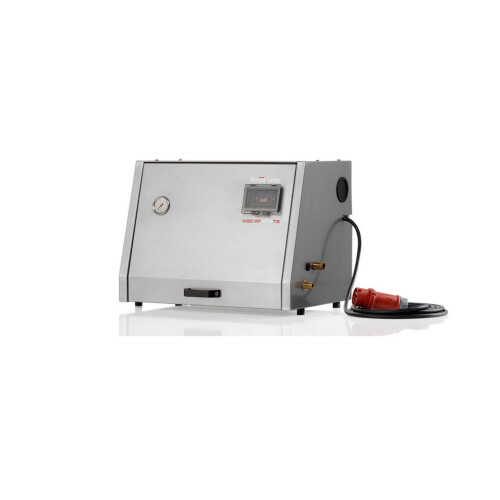

The appliance is available with or without stainless steel frame and protective cover including gas pressure spring, which always ensures that the hood remains securely fixed in any position. The integrated organization system also ensures that the safety shut-off gun and lances are always kept tidy on the appliance. Of course, the appliance also features the total stop system with delayed motor shut-off, infinitely variable pressure regulation and the quick-change plug-in system for quick and easy lance replacement to reduce the load on the high-pressure pump.
Special features
- In-line pump with unloader valve and pressure switch
- Total-Stop system with delayed motor shutdown to relieve the high-pressure pump
- Quick-change plug-in system
- Pressure regulation, working pressure infinitely variable
- Organization system

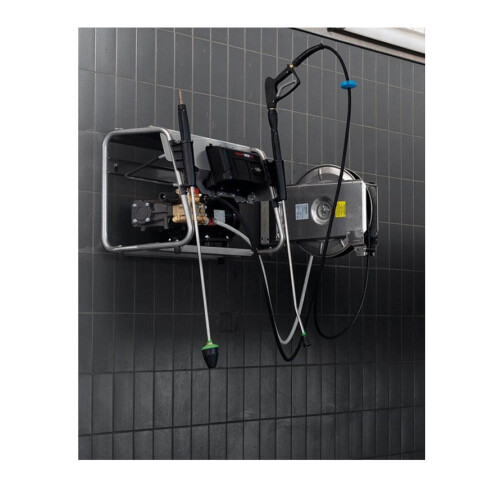

- Bracket for wall mounting
- Floor-standing and wall-mounted unit
- Stainless steel cover protects against soiling, durable & corrosion-resistant
Technical data
- Working pressure: 30 - 170 bar / 3 - 17 MPa
- Water output: 23.3 l/min / 1400 l/h
- Permissible overpressure: 200 bar / 20 MPa
- Motor speed: 1400 rpm
- Connection: 400 V / 3 ~ / 50 Hz / 14.3 A
- Power consumption: 8.0 kW
- Power output: 6.3 kW
- Mains connection cable: 7.5 m
- Plug: CEE 32A
- Dimensions (L/W/H): 670 x 430 x 510 mm
- Weight: 62 / 65 kg
Safety shut-off gun:
- Input: M22x1.5AG
- Outlet: Plug-in coupling D12
- Working pressure: 250 bar/ 25 MPa
- Water output: 40 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle cold water high-pressure cleaner WS(C)-RP 1400 TS
- 1 x high pressure hose 10 m (DN8)
- 1 x Starlet safety shut-off gun
- 1 x lance with flat jet nozzle, 1000 mm, with handle, nozzle size 08 (red), 25° spray angle
