Description

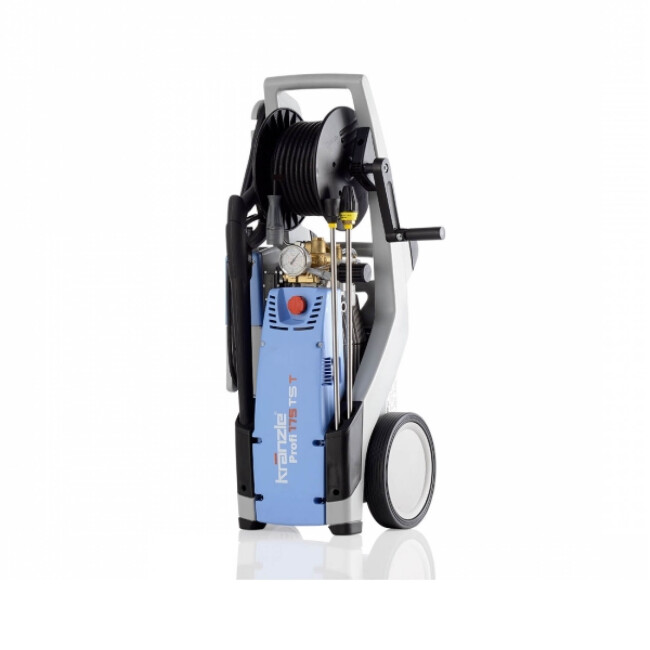

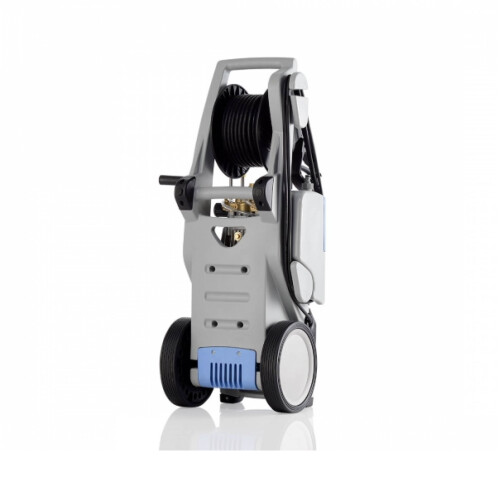

Kränzle high pressure cleaner cold water Profi 175 TST stands for performance without limits thanks to the specially manufactured industrial pump and the trend-setting design. This high-pressure cleaning device absolutely lives up to the name "Profi" - for the following reasons:
- oversized gearbox and oil housing to extend service life
- integrated hose reel to prevent hose chaos - no more tangled or untraceable hoses
- integrated organization system for stowing the high-pressure gun and lances
- Large stainless steel pressure gauge for easy reading of the working pressure
- All-terrain and stair-compatible Roto-Mold chassis
- Total stop system to relieve the high-pressure pump
- D12 quick-change plug-in system
- Integrated water tank to protect against pump damage due to lack of water
Technical data
High-pressure cleaner:
- Working pressure: 30 - 150 bar | 3 - 15 MPa
- Water output: 12 l/min | 720 l/h
- Permissible overpressure: 175 bar | 17.5 MPa
- Motor speed: 1400 rpm
- Connection: 400 V | 3 ~ | 50 Hz | 7.2 A
- Power consumption: 3.8 kW
- Power output: 3.0 kW
- Mains connection cable: 5 m
- Dimensions (L/W/H): 355 x 375 x 980 mm
- Weight: 45 kg
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: D12 plug-in coupling
- Working pressure: 207 bar/ 27 MPa
- Water output: 30 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle cold water high pressure cleaner Profi 175 TST with integrated hose reel included:
- 1 x high pressure hose 15 m (DN6)

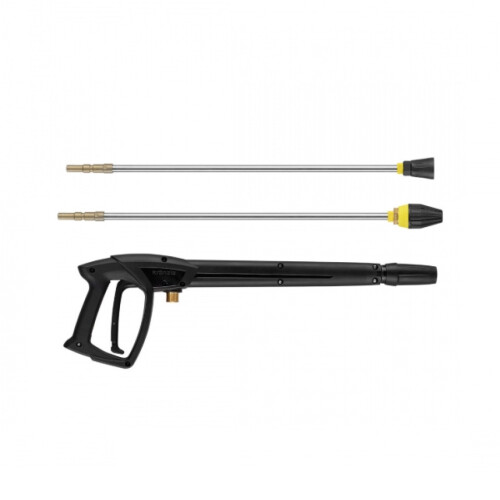

- 1 x safety shut-off gun M2000 - long
- 1 x lance with flat jet nozzle, 042 nozzle size (yellow), 50 cm length, 20° spray angle
- 1 x lance with dirt killer, 042 nozzle size (yellow)
