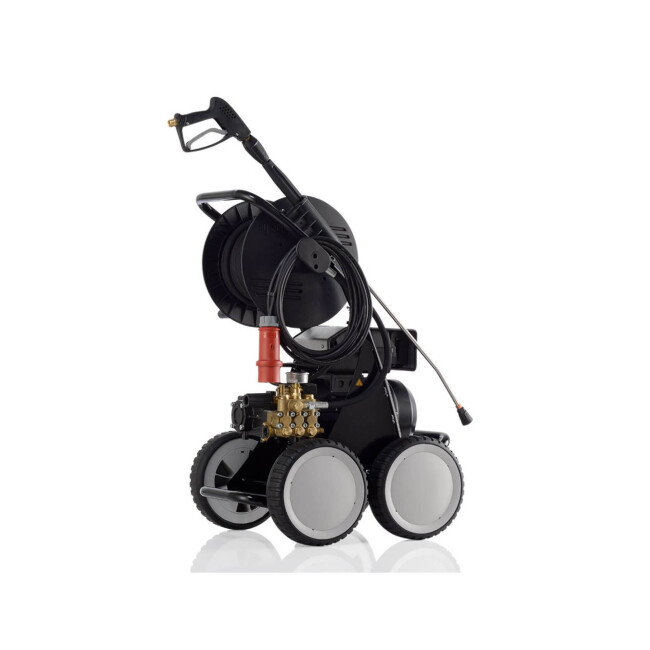

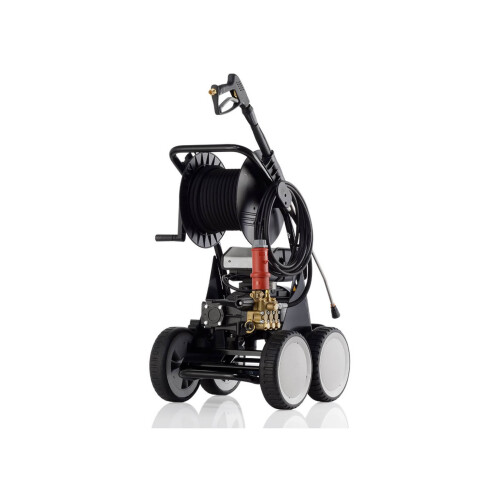

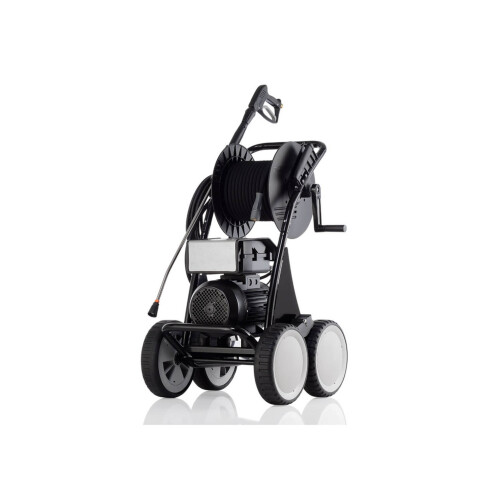

Kränzle high pressure cleaner cold water LX-RP 1600 TST

With us, you can easily lease or finance. We offer attractive conditions through our partners Albis and PEAC.

  • Item number: 886
  • GTIN: 4012314111316
  • Robust, powerful with in-line pump
  • Excellent flushing effect at high working pressure
  • Infinitely variable working pressure
  • Total stop system
  • Twist-Stop anti-twist protection
  • Direct suction 2.5 m
  • Working pressure: 30-150 bar
  • Water output: 26.7 l/min
  • Weight: 94 kg
Article currently out of stock
  • Article out of print

Description

Kränzle cold water high pressure cleaner LX-RP 1600 TST is a robust and powerful cold water high pressure cleaner with in-line pump and excellent washing effect at high working pressure. Thanks to the pressure regulation, this can be infinitely adjusted and read on the large stainless steel pressure gauge. Versatile in use, this expert accompanies you to any location on its 4 wheels. The parking brake ensures a secure stand during use and the organization system is responsible for transporting and storing the safety shut-off gun and lances. A bumper also protects the high-pressure pump from damage.
The innovative in-line pump was specially developed for a particularly high flushing effect: the pump technology with all water-carrying parts is identical to the axial pump that has been tried and tested for decades. However, the drive unit has a crankshaft instead of a swash plate, which moves plungers in series via connecting rods. The crankshaft can be designed for a longer stroke and can therefore pump larger quantities of water.
Of course, the device also has the popular quick-change plug-in system as well as a convenient and space-saving hose reel for the high-pressure hose.

Special features

  • Quick-change plug-in system
  • Twist-Stop anti-twist protection
  • in-line pump
  • Organization system
  • Space-saving and convenient hose reel
  • Parking brake
  • Infinitely variable pressure regulation

Technical data

  • Working pressure: 30 - 150 bar / 3 - 15 MPa
  • Water output: 26.7 l/min / 1600 l/h
  • Permissible overpressure: 170 bar / 17 MPa
  • Motor speed: 1400 rpm
  • Connection: 400 V / 3 ~ / 50 Hz / 14.3 A
  • Power consumption: 8.0 kW
  • Power output: 6.3 kW
  • Mains connection cable: 7.5 m
  • Plug: CEE 32A
  • Dimensions (L/W/H): 735 x 580 x 1020 mm
  • Weight: 94 kg

Safety shut-off gun:

  • Input: M22x1.5AG
  • Outlet: D12 plug-in coupling
  • Working pressure: 250 bar/ 25 MPa
  • Water output: 40 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle cold water high-pressure cleaner LX-RP 1600 TST
  • 1 x High pressure hose 20 m (DN8) on hose reel

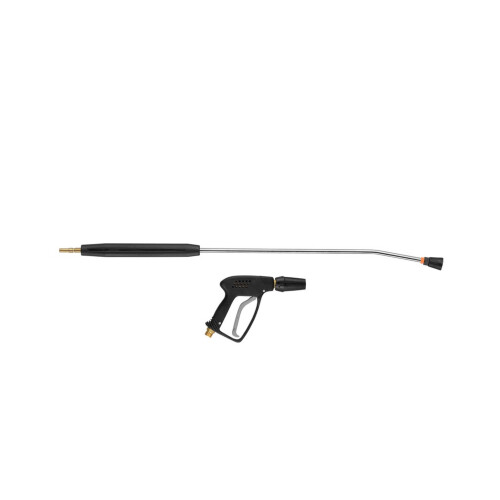

  • 1 x Starlet safety shut-off gun
  • 1 x lance with flat jet nozzle, 1000 mm, with handle, nozzle size 11 (orange), 40° spray angle

Downloads

PDF Kränzle Hochdruckreiniger Kaltwasser LX-RP 1600 TST - Bedienungsanleitung
PDF Kränzle Hochdruckreiniger Kaltwasser LX-RP 1600 TST - Datenblatt
