Description

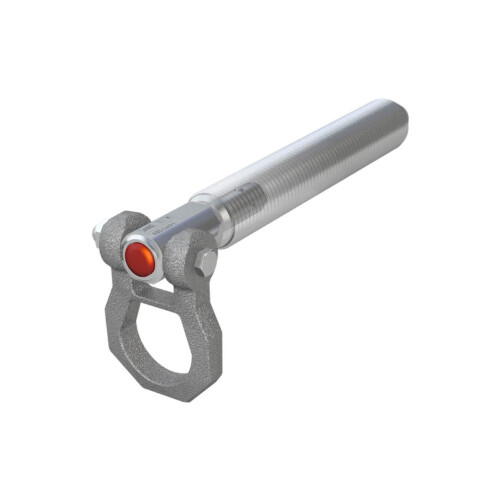

ABS-Lock II-ST stainless steel installation sleeve for countering with steel in variable lengths for the removable ABS-Lock I anchor point for fall protection. Together with the ABS-Lock I, the ABS-Lock II offers you reliable fall protection at the touch of a button: the ABS-Lock I anchorage eye is simply inserted into the sleeve and can be removed again at any time. This popular system has a general building authority approval (2 persons) and can be covered with the plastic cap provided after successful installation.
Product videos Stories
Special features

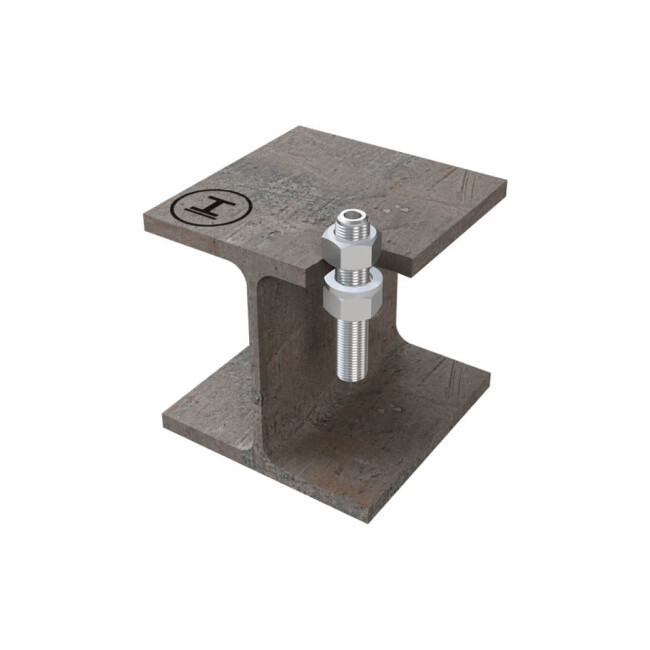

- for mounting in steel substrates
- for steel and load-bearing timber constructions
- can be used with ABS-Lock I
Technical data
- Substrate: Steel + wood
- Area of application: facade/wall, window, overhead/ceiling
- Fastening: for countering
- Certification: DIN EN 795:2012, A + DIN CEN/TS 16415:2017
DIBt approval/ Ü mark
ANSI - Force directions: Transverse and axial load
- Max. Max. number of users: 2
- Material: Stainless steel
- Available lengths: 100 mm, 150 mm, 200 mm
- Observe the installation specifications of the abZ (Z-14.9-988)!
Scope of delivery
- 1 x ABS-Lock II ST stainless steel installation sleeve for locking through steel
incl. stainless steel fixing set
incl. plastic plug and cover
