Description

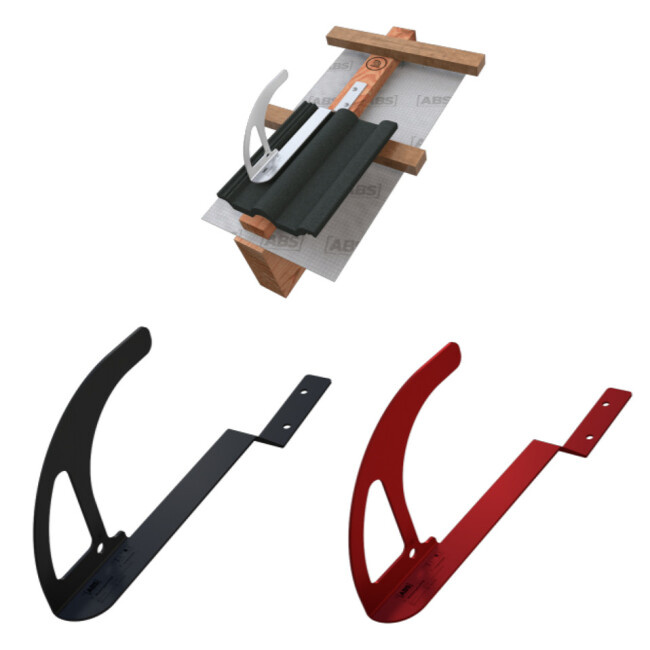

ABS-Lock DH04-OG serves as an anchor point and ladder hook in one to secure your work on the tiled roof.
It can be loaded in any direction, so you don't just have to move under the anchorage device.
You can temporarily screw the ABS-Lock into the wooden rafters or permanently attach it to the roof tiles using the 2 stainless steel screws supplied. Both options are possible thanks to the quick and easy installation.
To match the aesthetics of the building, the ABS-Lock is available in stainless steel, brick red or anthracite gray and is delivered to you including a fastening set.
Note on handling PPE & Co.: We are also happy to advise you as our customer on the subject of PPE, anchor points etc. However, our advice here only relates to the technical properties and functions of the respective product. Unfortunately, we cannot provide any information on the actual procedure for using the products and the evaluation of relevant work situations, possible accidents and the creation of risk assessments. We strongly recommend that you attend a course on PPE and occupational safety at your local employers' liability insurance association.
Special features
- safe operation on steel roofs
- different colors for the aesthetics of the building
- quick and easy installation
Technical data
- Certification: DIN EN 517: 2006, B
- Force directions: Shear load
- Surface: Wood
- Max. number of users: 1
- Fastening: screw in
- Area of application: pitched roof
- Rafters: min. 60 x 120 mm
- Attachment point + ladder hook
Scope of delivery
- 1 x safety hook
- Fastening material
