Description

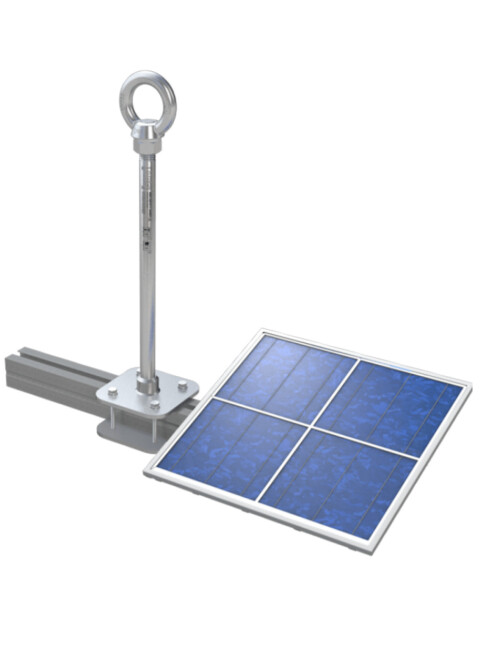

ABS-Lock X Solar is used as an attachment point for solar thermal and PV modules and is simply clamped around its support using a base and counter plate (100 x 100 mm). The ABS-Lock X Solar is designed for up to 3 users and can be loaded in all directions.
Please note: Before installing the ABS-Lock X Solar, please check the load-bearing capacity of the system supports!
Note on handling PPE & Co.: We are also happy to advise you as our customer on the subject of PPE, anchor points etc. However, our advice here only relates to the technical properties and functions of the respective product. Unfortunately, we cannot provide any information on the actual procedure for using the products and the evaluation of relevant work situations, possible accidents and the creation of risk assessments. We strongly recommend that you attend a course on PPE and occupational safety at your local employers' liability insurance association.
Special features
- with support tube as end and corner post
- can be used as a single anchor point or extended to form a lifeline system
- deformable support (Ø 16 mm), which reduces the force effect in the event of a fall
- Simple assembly
Technical data
- Certification: DIN EN 795:2012, A + DIN CEN/ TS 16415:2017
- Intermediate support + end and curve support
- Direction of force: Transverse and axial load
- Max. Max. number of users: 3
- Fastening: clamp
- Area of application: Flat and pitched roofs
- Profiles up to 50 x 50 mm
Scope of delivery
- ABS-Lock X Solar fall protection system
- Fastening material
