Description
1100 liter storage tank for pure water made of high-quality polyethylene (HD-PE) with galvanized pipe supports is perfect for storing freshly produced pure water. The tank can therefore be used optimally as a pure water filling station and supply your employees and vehicles with pure water before the start of operations. We would be happy to advise you when it comes to setting up a pure water filling station. We can provide you with all the relevant components.
The tank model offered here holds up to 1100 liters of pure water. The tank has a 400 mm maintenance dome at the top and a 2" connection. The tank also has a molded 155 mm flange on the underside. We recommend organizing filling and removal via the top. We would be happy to advise you on implementation.
Product videos Stories
Technical data
- Screw cap DN400 with clamping lock
- Union nut with 2" threaded insert
- Galvanized steel bandages
- Molded-in, lower flange (bolt circle 155 with 8 M10 threads, max. 17 mm deep) closed
- Plastic storage container made of high-molecular low-pressure polyethylene (HD-PE)

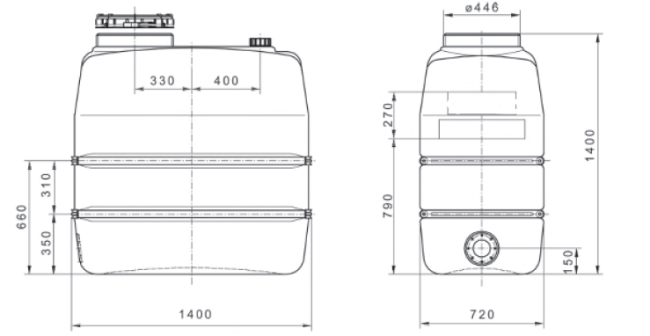

- Dimensions (L/W/H): 140 x 72 x 140 cm
- Weight: 55 kg
- Capacity: 1100 l
Scope of delivery
- 1 x 1100 liter storage tank for pure water
