Stop cross OnTop

Description

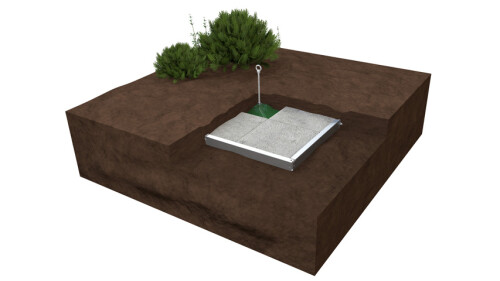

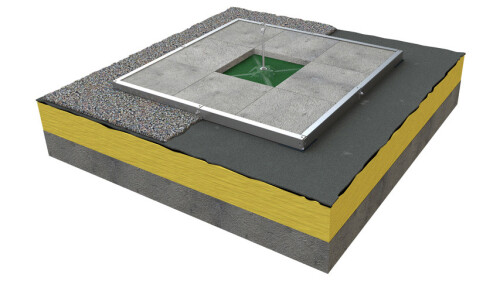

OnTop anchor cross: this is a reliable and space-saving fall protection system for flat roofs without roof penetration. One person can be secured with this fall arrest system. The anchorage device can also be used as an intermediate support in a lifeline system. This system consists of a high-quality stainless steel frame with aluminum cross struts, which is equipped with a central anchor point made of malleable stainless steel.

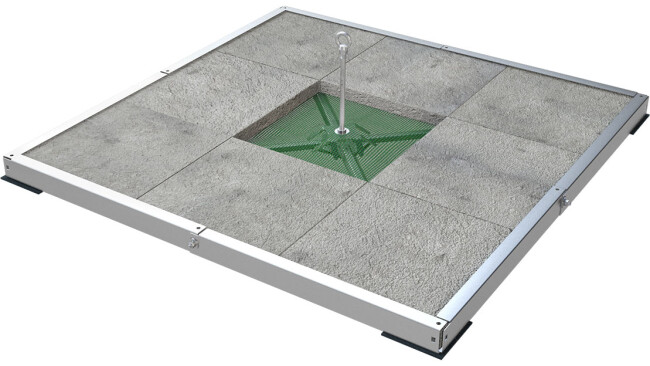

The OnTop anchor cross is weighted with 8 concrete plates (50 x 50 x 5 cm), each weighing 28 kg. These 8 weights are attached to a 150 x 150 cm frame. The concrete slabs are not included in the scope of delivery. A net made of PE fabric is stretched over the frame. It can be used both as a restraint system and as a fall arrest system. The total weight of 245 kg generates a roof load of 108.9 kg per square meter. The system includes a stainless steel fastening set and 5 EPDM patches to protect the roof cladding.

Note on handling PPE & Co.: We are also happy to advise you as our customer on the subject of PPE, anchor points etc. However, our advice here only relates to the technical properties and functions of the respective product. Unfortunately, we cannot provide any information on the actual procedure for using the products and the evaluation of relevant work situations, possible accidents and the creation of risk assessments. We strongly recommend that you attend a course on PPE and occupational safety at your local employers' liability insurance association.
