Description

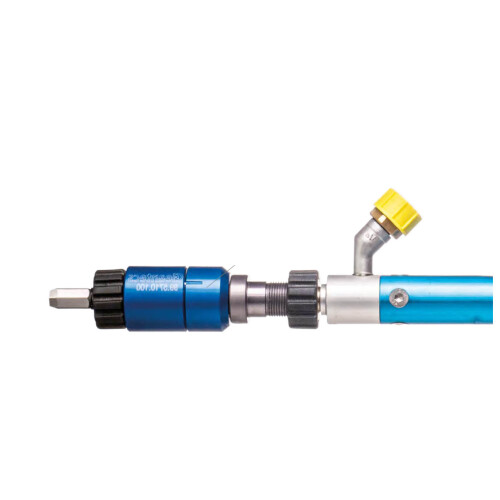

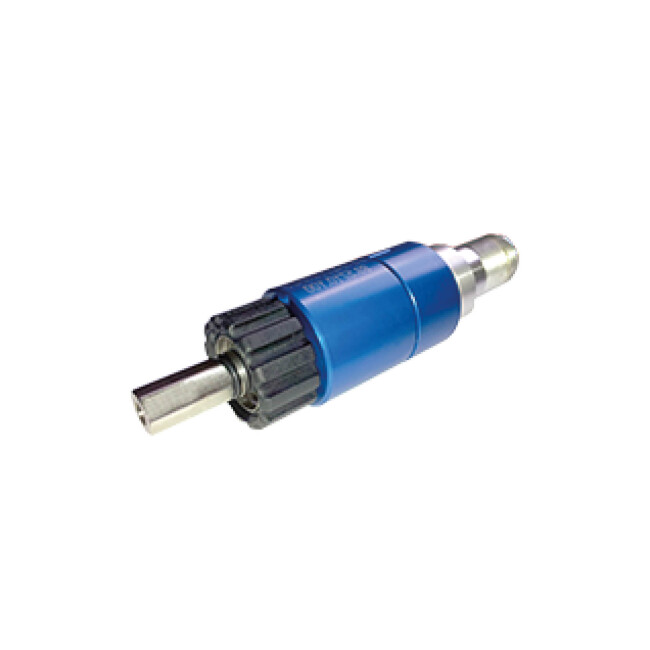

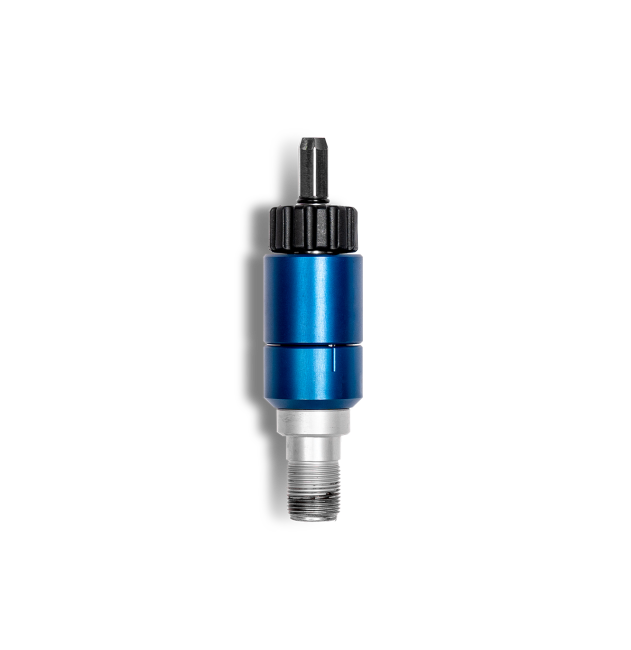

SOLA-TECS C swivel joint is used for simple and horizontal control. It is a movable connection between the brush and the lance bow. When the Pole is rotated, the angle of the brush changes. The advantage of this is that the last row of modules can be cleaned at an angle of up to 12° rather than across.
When cleaning roof edges, for example, there is always a risk that the brush will go over the edge of the roof and be difficult to pull back. This is exactly what the swivel joint prevents, allowing you to set the brush at a slight angle and clean the last row of modules safely.
Furthermore, you can move sideways from module to module without exerting too much force thanks to the swivel movements.

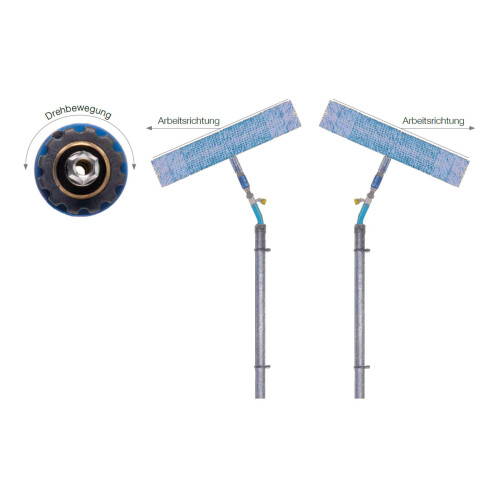

The swivel joint can be set to a rotation range of 0°, 30° and 60°. This corresponds to an angle of 0°, 7° and 12° on the brush.
Product videos Stories
Special features
- For simple and horizontal control of the SOLA-TECS C
- Movable connection between brush and lance arch
- For cleaning the last row of modules at an angle of up to 12°
- Swivel movement without great effort
Technical data
- Max. operating pressure: 140 bar
- Max. temperature: 40°C
- Connection: M 22x1.5 AG
- Outlet: M 22x1.5 AG
- Suitable for SOLA-TECS C solar cleaning devices
Scope of delivery
- 1 x SOLA-TECS C swivel joint
