Description

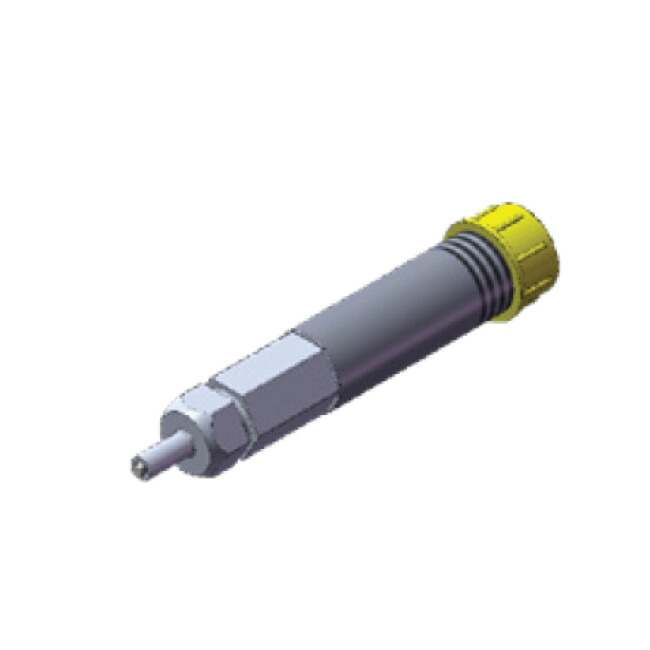

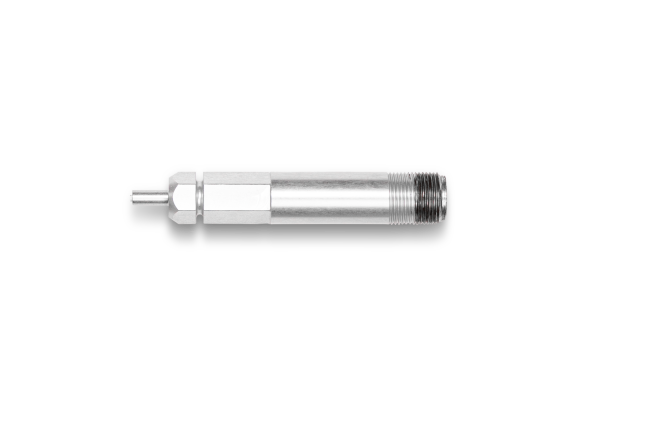

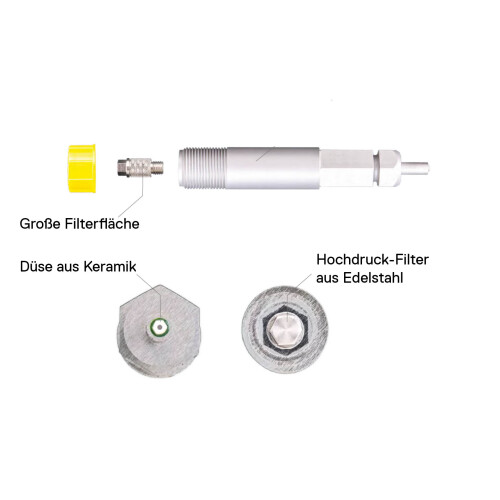

SOLA-TECS C connection pin for increasing or reducing the water flow, for flexible and economical operation. All SOLA-TECS C units are fitted with a 9 l/min nozzle as standard, which means a water flow rate of 9 liters per minute at a water pressure of 100 bar.
By adapting the nozzle (connection pin), it is now possible to reduce the water consumption from approx. 9 l/min to 5 l/min. However, it should be noted that the working time may be longer due to the lower rinsing force, as the higher the water flow rate, the better the rinsing effect.
If you want to clean with a reduced water volume, please select the corresponding connection pin for your SOLA-TECS C:
- SOLA-TECS C600 and C800 = connection pin 0.9 = 5 l/min nozzle
- SOLA-TECS C1000 = connection pin 1.1 = 7 l/min nozzle
If you need the SOLA-TECS C connection pin 1.2 = 9 l/min nozzle to increase the water level or as a spare part, you can also obtain it here.
Please select the appropriate SOLA-TECS C connection pin.
Product videos Stories
Special features
- To reduce or increase water consumption
- Ecologically valuable
- Economically flexible
Technical data
Connection pin 0.9
- Working pressure: 100 - 120 bar
- Max. temperature: 40°C
- Water consumption: 5 l/min
- Suitable for: SOLA-TECS C600 and C800
Connection pin 1.1
- Working pressure: 100 - 120 bar
- Max. temperature: 40°C
- Water consumption: 7 l/min
- Suitable for: SOLA-TECS C1000
Connection pin 1.2
- Working pressure: 100 - 120 bar
- Max. temperature: 40°C
- Water consumption: 9 l/min
Scope of delivery
- 1 x connection pin - please select accordingly
