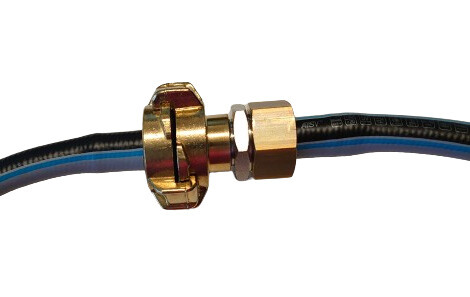

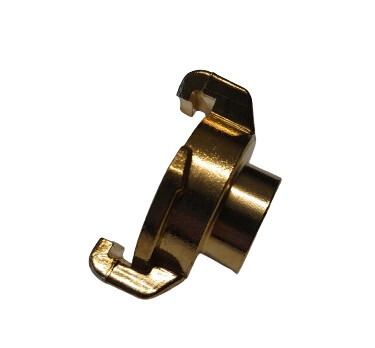

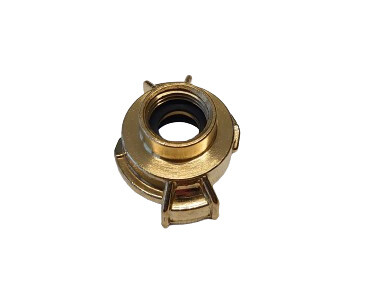

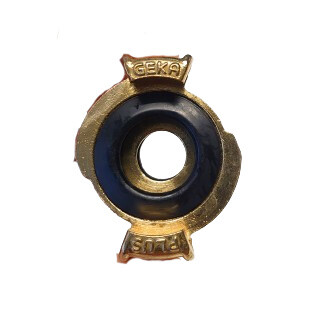

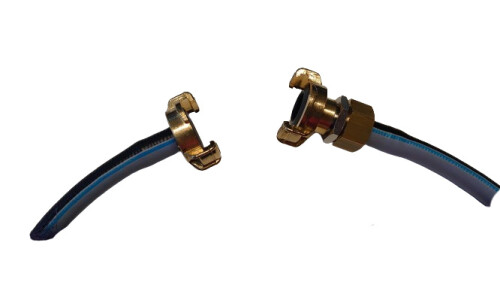

OSMOBIL threaded piece with internal thread G1/2"

  • Item number: 1889-001
  • GTIN: 4015933023053
  • for connecting hoses and units
  • with NBR flat sealing ring
  • made of brass
  • quick & easy to attach
  • internal thread: G1/2 (19.17 mm)
Internal thread
3,90 €
excl. 19% VAT. , plus. Shipping

Description

OSMOBIL threaded piece with internal thread G1/2" (19.17 mm) for connecting hoses and units. Thanks to the flat sealing ring made of NBR, the threaded piece sits firmly and securely on the hose. The OSMOBIL threaded fitting with internal thread G1/2" made of brass can be fitted quickly and easily.

Technical data

  • Material (body): Brass
  • Material (seal): NBR (Perbunan)
  • Operating pressure: up to max. 40 bar
  • Claw distance: 40 mm
  • Vacuum resistance: up to 10 m water column
  • Temperature range: -5° C to + 100° C

Scope of delivery

  • 1 x OSMOBIL threaded piece with internal thread G1/2"
