Description

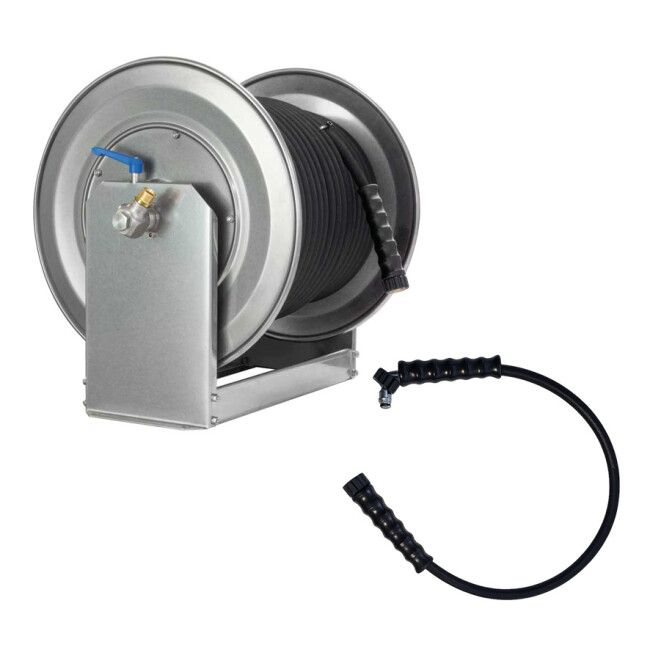

OSMOBIL TRAILER V3 high-pressure hose reel with 50-metre high-pressure hose including connector for professional use impresses with its sophisticated technology, high-quality workmanship and maximum practicality. The set consists of a robust high-pressure hose reel, a 50-metre high-pressure hose and a suitable connector for direct connection to a high-pressure cleaner, providing a complete, ready-to-use solution for demanding cleaning tasks.Thanks to its high quality, the hose reel is ideal for daily use with high-pressure cleaners and for mobile applications. It is perfectly matched to the OSMOBIL TRAILER V3 and can also be perfectly integrated into individual installation kits for vehicles or trailers.
A special highlight is the integrated mechanical brake in the bearing, which allows the hose to be braked in a finely controlled manner - right up to complete blocking. This enables controlled unwinding and rewinding, which reduces wear and significantly increases working comfort.
The OSMOBIL TRAILER V3 high-pressure hose reel is ideal for a wide range of professional applications and is perfect for solar cleaning with the SOLA-TECS C, among other things.
Special features
- Set of high-pressure reel & 50 meter high-pressure hose & connector
- for professionals
- high quality
- for installation sets
- perfect for solar cleaning with the SOLA-TECS C
Technical data
- High-pressure hose reel:
- Material: Stainless steel V2A
- Inlet: M22x1.5 AG
- Outlet: DKO 22x1.5
- Swivel joint: Stainless steel with polyamide handle
- High-pressure hose:
- Length: 50 m
- Nominal diameter: 10 mm
- Pressure: max. 300 bar
- Temperature: 90°C
- 2SC DN 10
- Material: black, coiled top rubber
- Fittings material: galvanized steel
- Connecting piece:
- Hose: 2SC-08 SW
- Length: 1 m
- Inlet/outlet: DKO 22 : DKO 22-90° + GKS
- Color: black
Scope of delivery
- 1 x OSMOBIL TRAILER V3 high-pressure hose reel 50 meters incl. connector
