Description

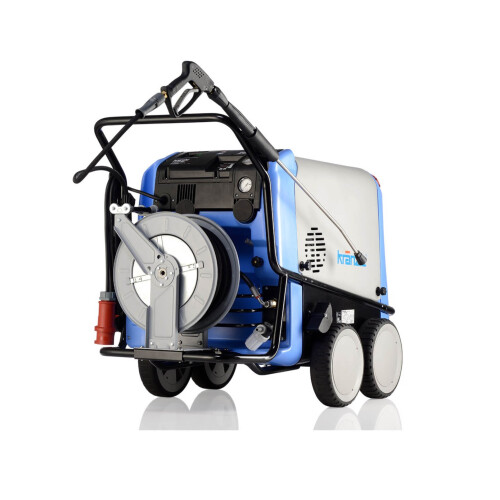

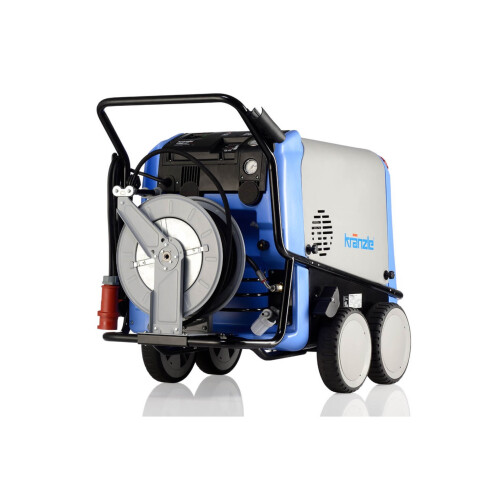

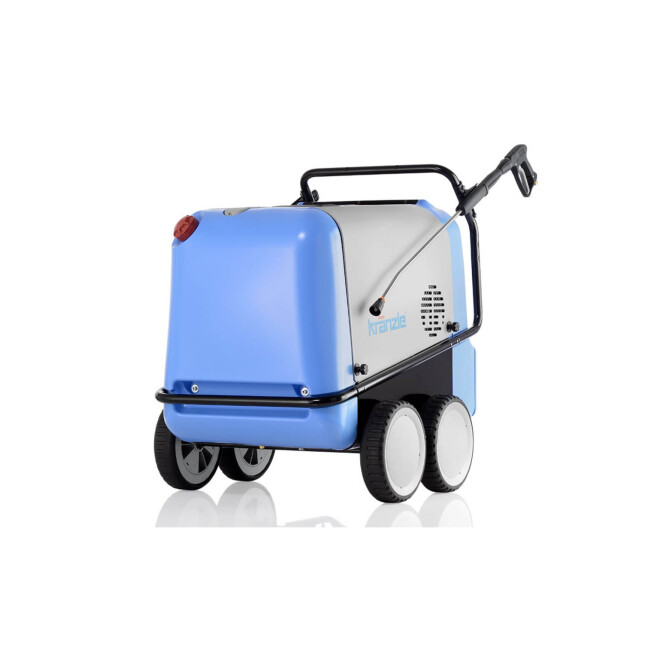

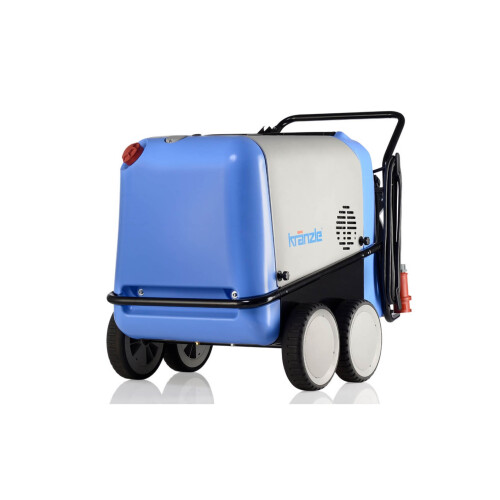

Kränzle high-pressure cleaner hot water therm-RP 1600 ATr with automatic hose reel and digital control panel for regulating the water temperature.
Operating mode 1: Thermostat control in °C. A thermostat measures the temperature at the end of the heating coil and controls the burner until the desired temperature is reached. (The ACTUAL temperature is shown on the display).
Operating mode 2: Burner output in %. The burner is switched on and off at a corresponding cycle frequency based on the set percentage (SET value). The water temperature at the end of the heating coil is shown in °C as the ACTUAL value. The advantage of this operating mode is that the water temperature is kept accurate to the degree (+/- 1°C), even when operating with partial quantities and low temperatures.
The appliance has an operating hours counter for easy determination of service intervals, as well as an automatic hose reel for automatic hose rewinding. The innovative in-line pump with integrated unloader valve and pressure switch ensures a first-class flushing effect at high working pressure and electronic monitors keep an eye on everything at all times. Simply push it on its four wheels to the desired location - ergonomically - and you can remove stubborn dirt with the help of heat.
Special features
- Removable hood, easy to service
- Detergent suction, direct -without additional accessories
- Quick-change plug-in system
- Twist-Stop anti-twist protection
- Infinitely variable pressure regulation
- Flow monitor
- combustion chamber pre-ventilation
- Burner stop in case of fuel oil shortage
- Fuel tank: 35 l
- Total stop system
- Water tank: 12 l volume
- Safety valve to protect against impermissibly high overpressure
- Pressure switch
- Differential pressure switch
- Overcurrent release
- Optical flame monitoring
- Operating hours counter
Technical data
High pressure cleaner:
- Working pressure: 70 - 150 bar / 7 - 15 MPa
- Water output: 26.7 l/min / 1600 l/h
- Permissible overpressure: 170 bar / 17 MPa
- Motor speed: 1400 rpm
- Connection: 400 V / 3 ~ / 50 Hz / 14.3 A
- Power consumption: 8.0 kW
- Power output: 6.3 kW
- Mains connection cable: 7.5 m
- Plug: CEE 32 A
- Dimensions (L/W/H): 1300 x 800 x 1015 mm
- Weight: 240 kg
Hot water:
- Hot water output: 12 - 80 °C (infinitely variable)
- Steam level max.: 140 °C
- Heating oil consumption max. heating capacity: 7.7 kg/h / 9.2 l/h
- Heating oil consumption ΔT 45°: 5.6 / 6.6 kW
- Heating output: 84 kW
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: Plug-in coupling D12
- Working pressure: 250 bar/ 25 MPa
- Water output: 40 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle high-pressure cleaner hot water therm-RP 1200 ATr included:
- 1 x high pressure hose 20 m (DN8)

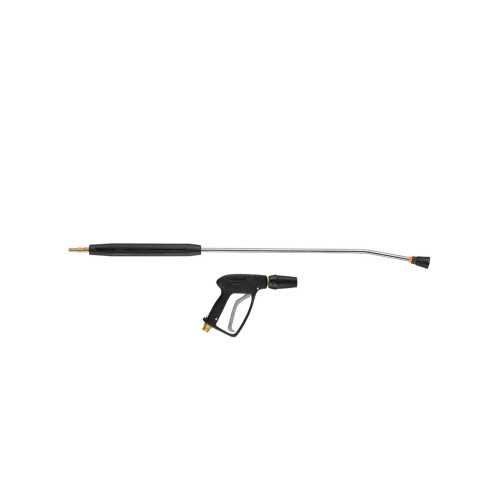

- 1 x Starlet safety shut-off gun, short
- 1 x lance with flat jet nozzle, 100 cm length, handle, 11 nozzle size (orange), 25° spray angle
- 1 x water inlet filter
