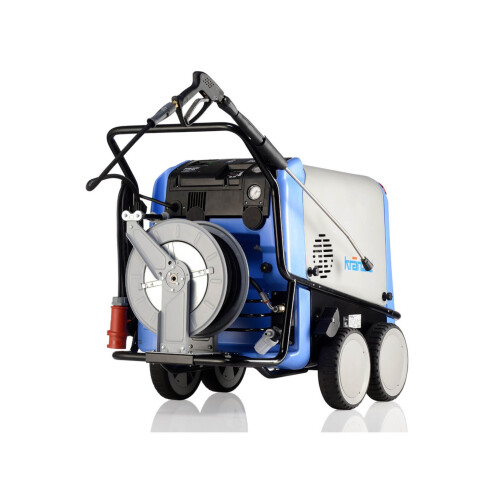

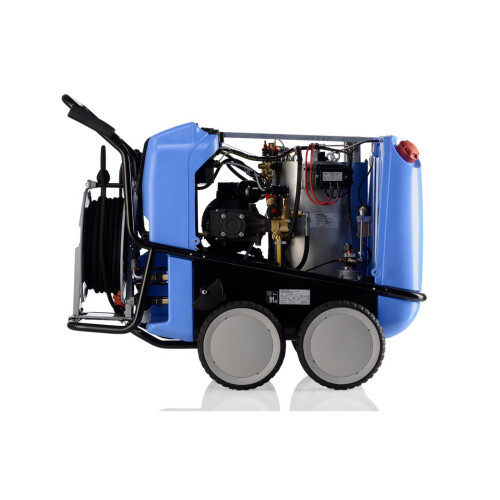

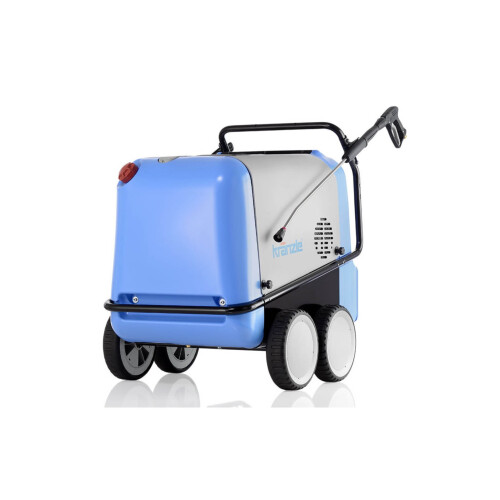

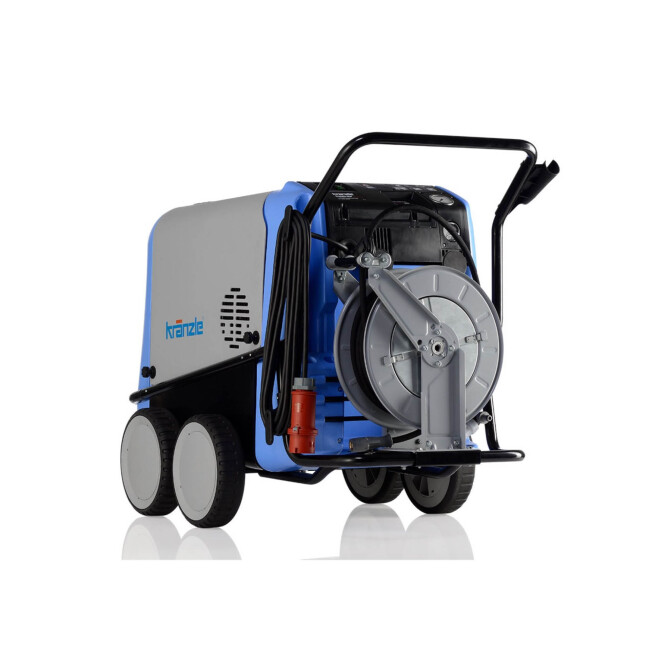

Kränzle high-pressure cleaner hot water therm-RP 1200 ATr

With us, you can easily lease or finance. We offer attractive conditions through our partners Albis and PEAC.

  • Item number: 889
  • GTIN: 4012314300468
  • with in-line pump for best flushing effect
  • Automatic hose rewind
  • Safety shutdown
  • Optical flame monitoring
  • Direct suction: 2.5 m suction height
  • Water tank: 12 l volume
  • Digital control panel
  • Working pressure: 70-190 bar
  • Water output: 20 l/min
  • Weight: 240 kg
Article currently out of stock
  • Article out of print

Description

Kränzle hot water high-pressure cleaner therm-RP 1200 ATr with high safety and operating comfort in daily use as well as a hose reel with automatic hose rewind. This hot water unit impresses with its impressively high cleaning and flushing effect! The new in-line pump enables even greater water flow with a significantly higher flushing effect than conventional pumps. The combustion chamber is designed for continuous professional use and the outstanding thermal efficiency guarantees low heating oil consumption and low emissions. The digital control panel is precise: thanks to the digital temperature control, the water temperature and heat output can be measured precisely and controlled via two operating modes. Optical flame monitoring, an operating hours counter and numerous safety features make this appliance a reliable, environmentally friendly and quiet professional against stubborn soiling. You too can save water and energy - with maximum cleaning efficiency.

Special features

  • Removable hood, easy to service
  • Detergent suction, direct -without additional accessories
  • Quick-change plug-in system
  • Twist-Stop anti-twist protection
  • Infinitely variable pressure regulation
  • Flow monitor
  • combustion chamber pre-ventilation
  • Burner stop in case of fuel oil shortage
  • Fuel tank: 35 l
  • Total stop system
  • Water tank: 12 l volume
  • Safety valve to protect against impermissibly high overpressure
  • Pressure switch
  • Differential pressure switch
  • Overcurrent release
  • Optical flame monitoring
  • Operating hours counter

Technical data

High-pressure cleaner:

  • Working pressure: 70 - 190 bar / 7 - 19 MPa
  • Water output: 20 l/min / 1200 l/h
  • Permissible overpressure: 210 bar / 21 MPa
  • Motor speed: 1400 rpm
  • Connection: 400 V / 3 ~ / 50 Hz / 14.3 A
  • Power consumption: 8.0 kW
  • Power output: 6.3 kW
  • Mains connection cable: 7.5 m
  • Plug: CEE 32 A
  • Dimensions (L/W/H): 1300 x 800 x 1015 mm
  • Weight: 240 kg

Hot water:

  • Hot water output: 12 - 80 °C (infinitely variable)
  • Steam level max.: 140 °C
  • Heating oil consumption max. heating capacity: 7.1 kg/h / 8.5 l/h
  • Heating oil consumption ΔT 45°: 5.6 / 6.6 kW
  • Heating output: 84 kW

Safety shut-off gun:

  • Inlet: M22x1.5AG
  • Outlet: Plug-in coupling D12
  • Working pressure: 250 bar/ 25 MPa
  • Water output: 40 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle high-pressure cleaner hot water therm-RP 1200 ATr included:
  • 1 x high pressure hose 20 m (DN8)

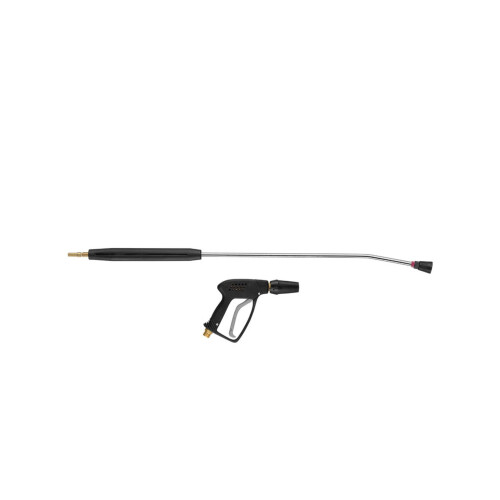

  • 1 x Starlet safety shut-off gun, short
  • 1 x lance with flat jet nozzle, 100 cm length, handle shell, 065 nozzle size (dark red), 25° spray angle
  • 1 x water inlet filter

Downloads

PDF Kränzle Hochdruckreiniger Heisswasser therm-RP 1200 ATr - Betriebsanleitung
PDF Kränzle Hochdruckreiniger Heisswasser therm-RP 1200 ATr - Datenblatt
