Kränzle high-pressure cleaner hot water therm C 13/180

With us, you can easily lease or finance. We offer attractive conditions through our partners Albis and PEAC.

  • Item number: 814
  • All-terrain chassis
  • Working pressure up to 180 bar
  • impact protection
  • Optical flame monitoring and overheating protection
  • Burner stop in case of fuel oil shortage
  • Total stop system with delayed engine shutdown
  • Available with or without hose reel
  • Working pressure: 30-180 bar
  • Water output: 13 l/min
  • Weight: 164 / 169 kg
Hose reel
Article currently out of stock
  • Article out of print
Contract period Monthly rate
24 Months 181,50 € *
30 Months 150,78 € *
36 Months 126,05 € *
42 Months 111,29 € *
48 Months 98,53 € *
54 Months 91,75 € *
60 Months 82,97 € *
To use the installments, you must select the leasing payment method in the checkout.

The choice is yours. Use two strong partners by your side. We will inquire with both for you and, in case of doubt, select the cheaper provider for you.

Leasing
Payment of the installment for the use of the goods. The goods remain the property of the leasing company.

Financing / Hire Purchase
Similar to a loan, the goods become your property after payment of the last installment.

Non-binding estimate

Description

Kränzle hot water high-pressure cleaner therm C 13/180 is characterized by its compact design, working pressure of up to 180 bar, large wheels with solid rubber tyres and impact protection at the front and rear.
In addition, this hot water high-pressure cleaner, like all models in the high-pressure hot water series, has the innovative quick-change plug-in system, the practical organization system and the total stop system - here with delayed engine shutdown. Thanks to this delay when switching off, the full working pressure is immediately available again during very short breaks in work. Features such as a flow monitor, optical flame monitoring, overcurrent release, pressure switch and low fuel switch ensure safe operation.

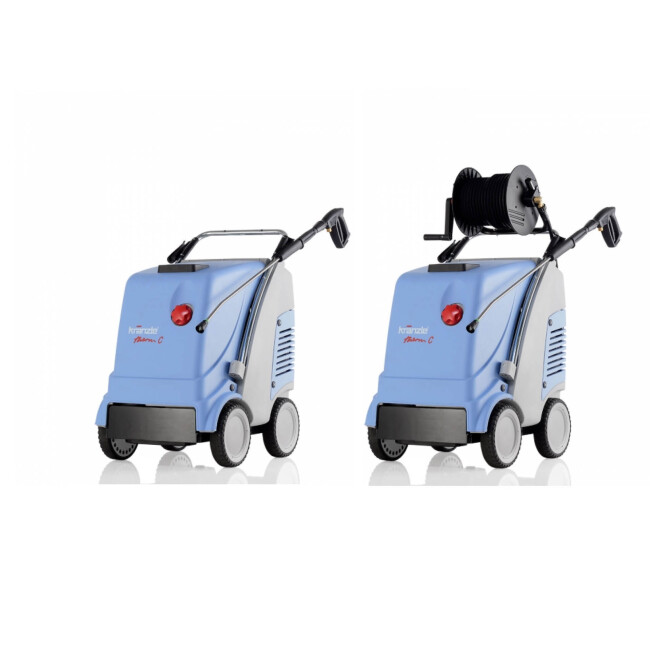

The therm C 13/180 is available with or without a hose reel.

Special features

  • Total stop system with delayed motor shutdown
  • Clearly arranged control panel for regulating the water temperature
  • Safety cut-out
  • pressure regulation
  • flow monitor
  • flow monitoring
  • Combustion chamber pre-ventilation
  • Safety thermostat
  • 4-fold safety system with overload protection
  • Burning stop in case of fuel oil shortage
  • Removable hood
  • Optical flame monitoring system
  • fuel tank 25 l

Technical data

High-pressure cleaner:

  • Working pressure: 30 - 180 bar / 3 - 18 MPa
  • Water output: 13 l/min / 780 l/h
  • Permissible overpressure: 200 bar / 20 MPa
  • Motor speed: 1400 rpm
  • Connection: 400 V / 3 ~ / 50 Hz / 8.7 A
  • Power consumption: 4.8 kW
  • Power output: 4.0 kW
  • Mains connection cable: 7.5 m
  • Fuel tank with supply monitoring: 25 l
  • Dimensions (L/W/H):
    860 x 580 x 970 mm (without hose reel)
    860 x 580 x 1220 mm (with hose reel)
  • Weight: 164 / 169 kg

Hot water:

  • Hot water output: 12 - 80 °C (infinitely variable)
  • Steam level max.: 150 °C
  • Heating oil consumption max. heating capacity: 5.8 kg/h / 6 .8 l/h
  • Heating oil consumption ΔT 45°: 3.8 / 4.5 kW
  • Heating output: 60 kW

Safety shut-off gun:

  • Inlet: M22x1.5AG
  • Outlet: Plug-in coupling D12
  • Working pressure: 207 bar/ 27 MPa
  • Water output: 30 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle high-pressure cleaner hot water therm C 13/180 included:
  • 1 x high pressure hose 10 / 15 m (DN8)

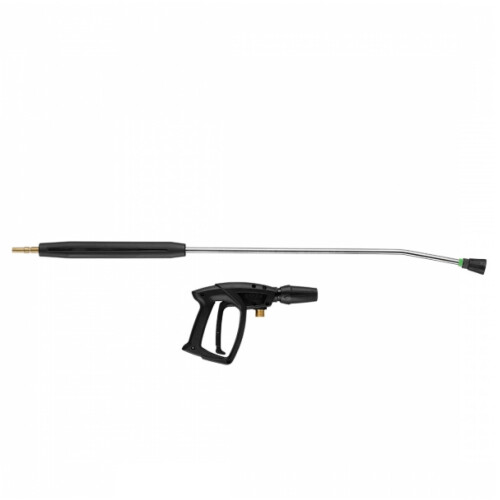

  • 1 x safety shut-off gun M2000, short
  • 1 x lance with flat jet nozzle, 100 cm length, handle, 045 nozzle size (green), 25° spray angle
  • 1 x water inlet filter

Downloads

PDF Kränzle Hochdruckreiniger Heisswasser therm C 13/180 - Betriebsanleitung
PDF Kränzle Hochdruckreiniger Heisswasser therm C 13/180 - Datenblatt
