Description

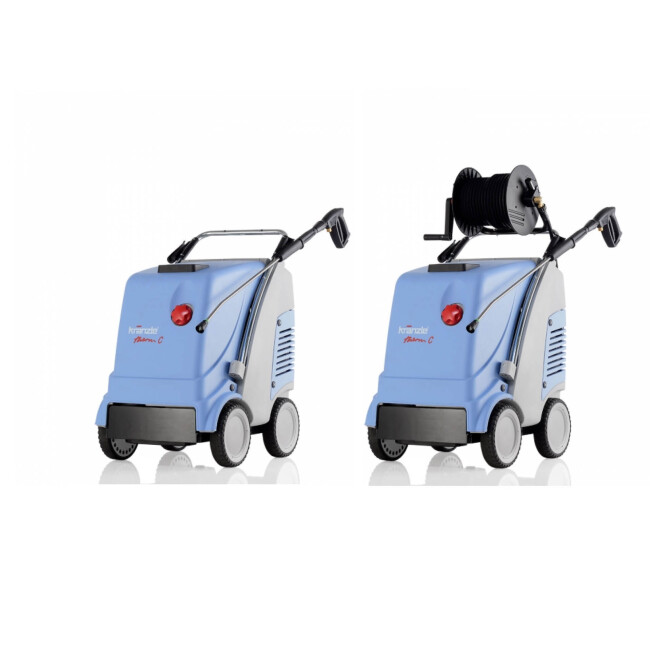

Kränzle high-pressure cleaner hot water therm C 11/130 stands for perfection, precision and innovation at the cutting edge of technology - reliable, environmentally friendly and quiet. This hot water high-pressure cleaner comes to you on 4 wheels with wide solid rubber tires and parking brake for a secure hold as well as off-road capability, organization system, ram protection front and rear, high-pressure hose, safety shut-off gun, lance with flat nozzle and water inlet filter. This model also has optical flame monitoring and overheating protection - what does that mean?
This appliance has a photocell to monitor the burner flame. This ensures safe operation at all times, even if you as the user are not in the vicinity. Overheating protection also measures the temperature of the flue gas opening; if the temperature exceeds 260°C, the heating is automatically switched off. The safety devices monitor safety-relevant functions at all times. The therm C 11/130 is available with or without a hose reel.
Special features
- Total stop system with delayed motor shutdown
- Clearly arranged control panel for regulating the water temperature
- Safety cut-out
- Flow monitoring
- combustion chamber pre-ventilation
- Safety thermostat
- 4-fold safety system with overload protection
- Burning stop in case of fuel oil shortage
- Removable hood
- Optical flame monitoring system
Technical data
High-pressure cleaner:
- Working pressure: 30 - 130 bar / 3 - 13 MPa
- Water output: 11 l/min / 660 l/h
- Permissible overpressure: 145 bar / 14.5 MPa
- Motor speed: 1400 rpm
- Connection: 230 V / 1 ~ / 50 Hz / 15 A
- Power consumption: 3.4 kW
- Power output: 2.3 kW
- Mains connection cable: 5 m
- Fuel tank with supply monitoring: 25 l
- Dimensions (L/W/H):
860 x 580 x 970 mm (without hose reel)
860 x 580 x 1220 mm (with hose reel) - Weight: 164 / 169 kg
Hot water:
- Hot water output: 12 - 80 °C (infinitely variable)
- Steam level max.: 140 °C
- Heating oil consumption max. heating capacity: 5.1 kg/h / 6 .1 l/h
- Heating oil consumption ΔT 45°: 3.2 / 3.8 kW
- Heating output: 55 kW
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: Plug-in coupling D12
- Working pressure: 207 bar/ 27 MPa
- Water output: 30 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle high-pressure cleaner hot water therm C 11/130 included:
- 1 x high pressure hose 10 / 15 m (DN8)

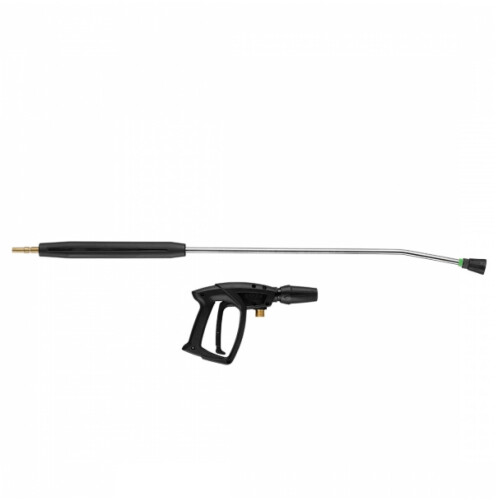

- 1 x safety shut-off gun M2000, short
- 1 x lance with flat jet nozzle, 100 cm length, handle, 045 nozzle size (green), 25° spray angle
- 1 x water inlet filter
