Description

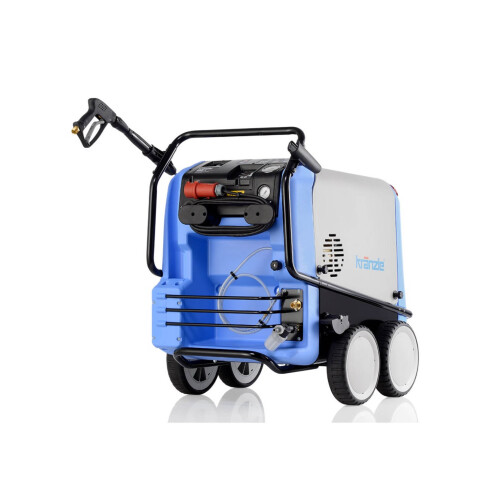

Kränzle high-pressure cleaner hot water therm 895-1, a powerful and environmentally friendly high-pressure cleaner that stands for maximum performance, reliability, safety and ease of use in daily operation. The new combustion chamber is designed for continuous professional use and the excellent thermal efficiency guarantees low fuel oil consumption and low emissions. The adjustable burner output is set via temperature or percentage output according to the setpoint, controllable via the digital control panel. The integrated flow monitor switches the oil burner off if there is a lack of water, thus preventing the heating chamber from overheating. This appliance also has a detergent and direct suction system with a suction height of 2.5 m, as well as a 12 l water tank. The therm-1 series also comes with an operating hours counter as standard, as well as the quick-change plug-in system and the total stop system with delayed motor shutdown. Further features can be found under special features.

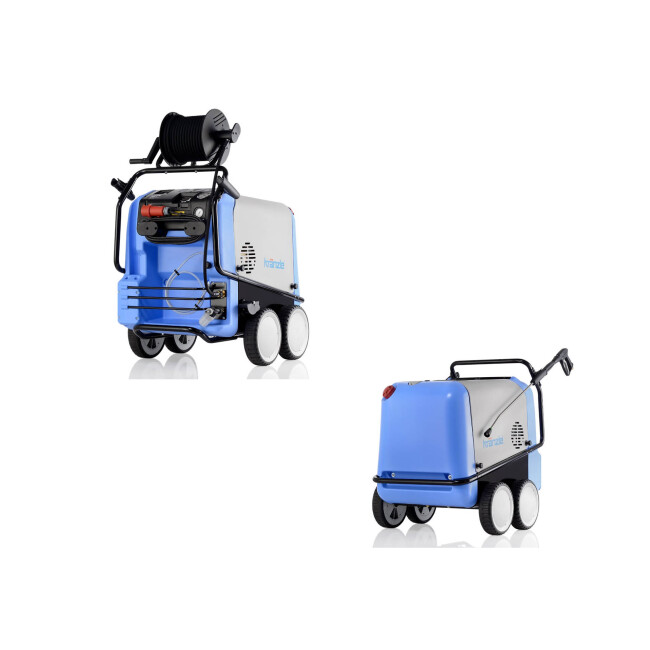

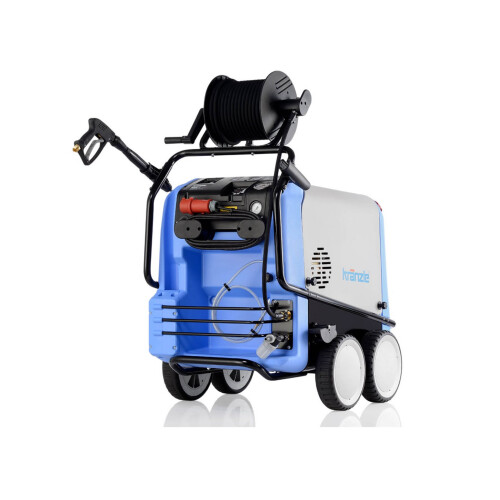

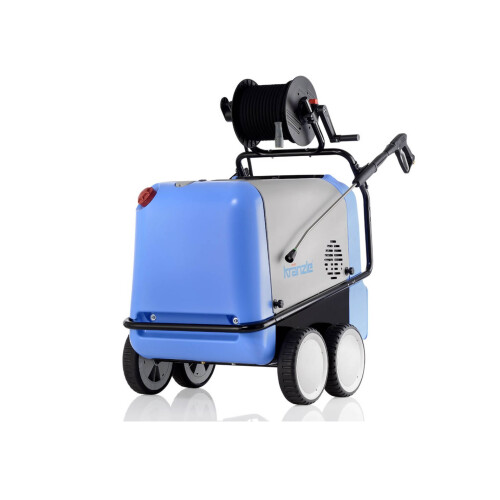

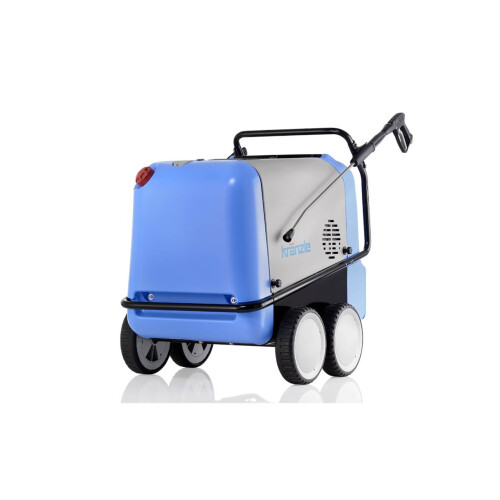

The hot water professional is available with or without an integrated hose reel. Please select the model you require.
Special features
- All-terrain chassis with parking brake and impact protection
- Pressure regulation
- Digital control panel
- order system
- Safety cut-out
- combustion chamber pre-ventilation
- Digital thermostat
- flow monitor
- Optical flame monitoring
- Overheating protection
- Burner stop in case of fuel oil shortage
- Operating hours counter
- Cleaning agent suction
- Water tank: 12 l volume
- Quick-change plug-in system
- Total stop system with delayed engine shutdown
- Direct suction: 2.5 m suction height
Technical data
High-pressure cleaner:
- Working pressure: 30 - 195 bar / 3 - 19.5 MPa
- Water output: 14.9 l/min / 895 l/h
- Permissible overpressure: 215 bar / 21.5 MPa
- Motor speed: 1400 rpm
- Connection: 400 V / 3 ~ / 50 Hz / 12 A
- Power consumption: 6.4 kW
- Power output: 5.0 kW
- Mains connection cable: 7.5 m
- Fuel tank: 35 l
- Dimensions (L/W/H):
1050 x 800 x 1015 mm (without hose reel)
1050 x 800 x 1300 mm (with hose reel) - Weight: 214 / 222 kg
Hot water:
- Hot water output: 12 - 86 °C (infinitely variable)
- Steam level max.: 155 °C
- Heating oil consumption max. heating capacity: 6.0 kg/h / 7.1 l/h
- Heating oil consumption ΔT 45°: 4.3 / 5.1 kW
- Heating output: 65 kW
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: Plug-in coupling D12
- Working pressure: 250 bar/ 25 MPa
- Water output: 40 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle high pressure cleaner hot water therm 895-1 included:
- 1 x high pressure hose 10 / 20 m (DN8)
- 1 x Starlet safety shut-off gun, short
- 1 x lance with flat jet nozzle, 100 cm length, handle shell, 045 nozzle size (green), 25° spray angle
- 1 x water inlet filter
