Description

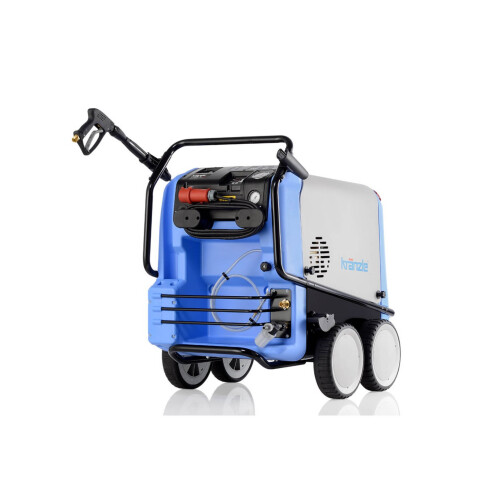

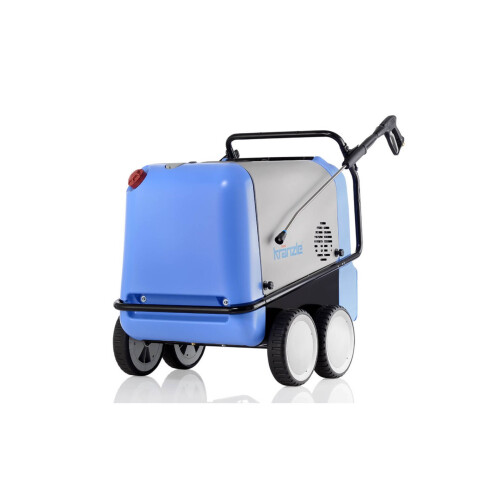

Kränzle hot water high-pressure cleaner therm 1165-1 impresses in every respect: all-terrain chassis with removable hood, full technical equipment and simple operation for daily use.

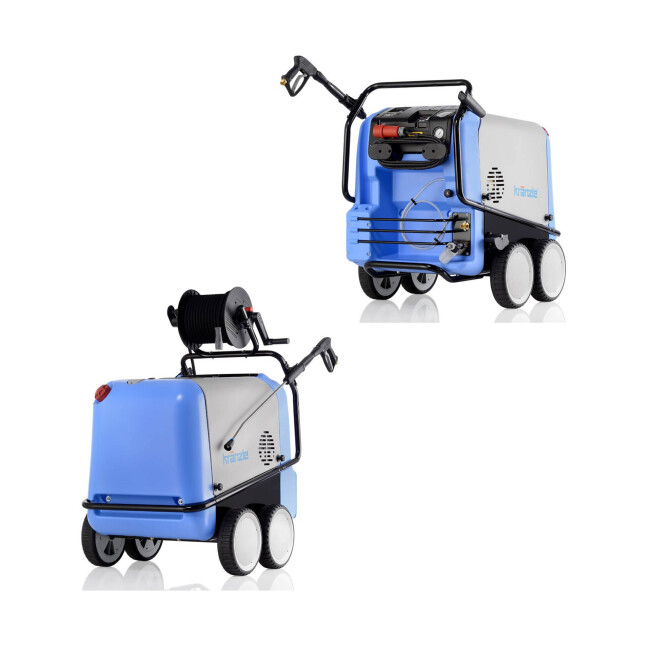

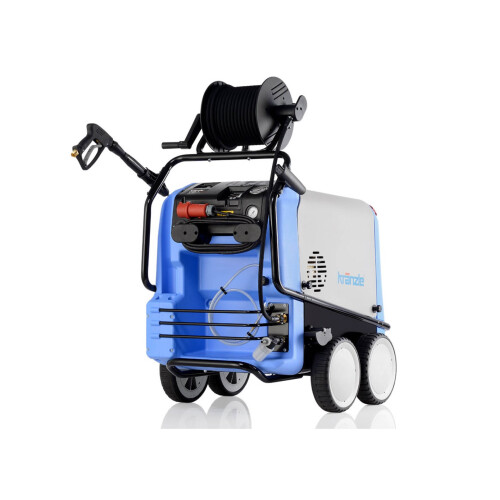

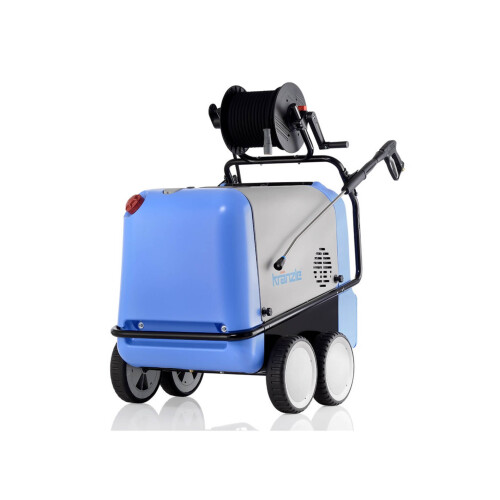

This hot water professional high-pressure cleaner is available with or without an integrated hose reel. If you opt for the model with hose reel, you always have a convenient place for your high-pressure hose, which can be easily rolled up and unrolled using the folding crank handle. The safety shut-off gun and cleaning lances can also be stored in the storage system and can therefore be taken to any location without having to lug them around. The appliance also has a flow monitor that switches off the oil burner if there is a lack of water, thus preventing the heating chamber from overheating. There are also two pressure switches: the first controls the burner release and only allows combustion when the working pressure is present. The second differential pressure switch enables the machine to be switched off automatically if the gun is closed for longer than 30 seconds. The overcurrent release switches the machine off in the event of excessive current consumption. A comprehensive safety package, the digital control panel with two different temperature modes and many other special features (see below) round off the equipment.
Special features
- All-terrain chassis with parking brake and impact protection
- Pressure regulation
- Digital control panel
- order system
- Safety cut-out
- combustion chamber pre-ventilation
- Digital thermostat
- flow monitor
- Optical flame monitoring
- Overheating protection
- Burner stop in case of fuel oil shortage
- Operating hours counter
- Cleaning agent suction
- Water tank: 12 l volume
- Quick-change plug-in system
- Total stop system with delayed engine shutdown
- Direct suction: 2.5 m suction height
Technical data
High-pressure cleaner:
- Working pressure: 30 - 165 bar / 3 - 16.5 MPa
- Water output: 19.4 l/min / 1165 l/h
- Permissible overpressure: 180 bar / 18 MPa
- Motor speed: 1400 rpm
- Connection: 400 V / 3 ~ / 50 Hz / 12 A
- Power consumption: 6.4 kW
- Power output: 5.0 kW
- Mains connection cable: 7.5 m
- Fuel tank: 35 l
- Dimensions (L/W/H):
1050 x 800 x 1015 mm (without hose reel)
1050 x 800 x 1300 mm (with hose reel) - Weight: 214 / 222 kg
Hot water:
- Hot water output: 12 - 82 °C (infinitely variable)
- Steam level max.: 155 °C
- Heating oil consumption max. heating capacity: 7.1 kg/h / 8.5 l/h
- Heating oil consumption ΔT 45°: 5.6 / 6.6 kW
- Heating output: 78 kW
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: Plug-in coupling D12
- Working pressure: 250 bar/ 25 MPa
- Water output: 40 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle high pressure cleaner hot water therm 1165-1 included:
- 1 x high pressure hose 10 / 20 m (DN8)
- 1 x Starlet safety shut-off gun, short
- 1 x lance with flat jet nozzle, 100 cm length, handle shell, 07 nozzle size (blue), 25° spray angle
- 1 x water inlet filter
