Description
Kränzle hot water high-pressure cleaner therm 1017 impresses with its technology, quality and performance and scores with the best cleaning power. Even stubborn dirt is no problem for the robust and powerful hot water high-pressure cleaner thanks to the steam stage.The optical flame monitoring and overheating protection always ensure safety at work: If you as the user are not near your appliance, a photocell is available to monitor the burner flame and the heating switches off automatically at over 260 °C. The twist-stop anti-twist protection is also an extremely useful feature: a special screw connection prevents the high-pressure hose from twisting during use, so that you can work at any time without any annoying "hose chaos". Furthermore, the therm 1017 is absolutely user- and service-friendly thanks to the removable hood, the integrated organization system (practical holders for the high-pressure gun and cleaning lances) and the optionally available space-saving hose reel. Of course, the quick-change plug-in system, the total stop system with delayed motor shut-off, the infinitely variable pressure regulation, the detergent suction and safety devices, such as a flow monitor, are also standard features of this model. All you have to do is decide whether you want the appliance with or without a hose reel.
Special features
- Quick-change plug-in system
- Safety shutdown
- Total stop system with delayed motor shutdown
- Pressure regulation
- Detergent suction
- Direct suction: 2.5 m
- Water tank: 12 l volume
- Flow monitor
- Combustion chamber pre-ventilation
- Optical flame monitoring & overheating protection
- Burner stop in case of fuel oil shortage
Technical data
High-pressure cleaner:
- Working pressure: 30 - 150 bar / 3 - 15 MPa
- Water output: 16.7 l/min / 1,000 l/h
- Permissible overpressure: 170 bar / 17 MPa
- Motor speed: 1400 rpm
- Connection: 400 V / 3 ~ / 50 Hz / 8.5 A
- Power consumption: 5.5 kW
- Power output: 4.0 kW
- Mains connection cable: 7.5 m
- Fuel tank: 35 l
- Dimensions (L/W/H):
1050 x 800 x 1015 mm (without hose reel)
1050 x 800 x 1300 mm (with hose reel) - Weight: 193 / 198 kg
Hot water:
- Hot water output: 12 - 80 °C (infinitely variable)
- Steam level max.: 140 °C
- Heating oil consumption max. heat output: 6.2 kg/h / 7 .4 l/h - eco: 4.8 kg/h / 6.3 l/h
- Heating oil consumption ΔT 45°: 5.6 / 6.6 kW
- Heat output: 68 kW
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: Plug-in coupling D12
- Working pressure: 250 bar/ 25 MPa
- Water output: 40 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle high-pressure cleaner hot water therm 1017 included:
- 1 x high pressure hose 10 / 20 m (DN8)

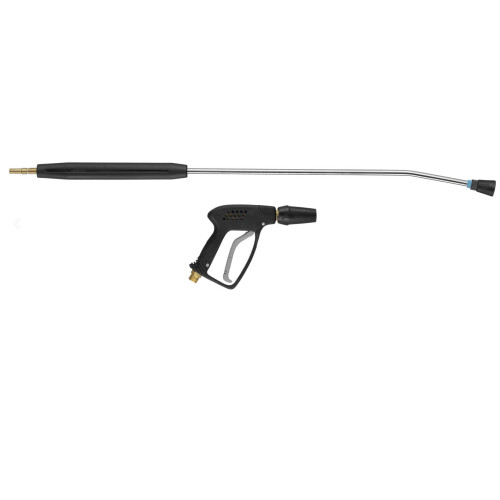

- 1 x Starlet safety shut-off gun, short
- 1 x lance with flat jet nozzle, 100 cm length, handle, 06 nozzle size (violet), 25° spray angle
