Description

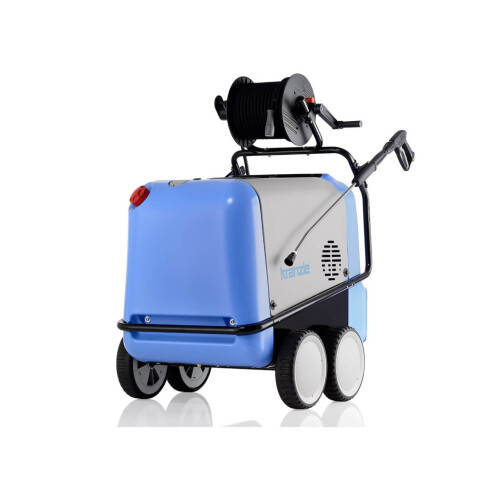

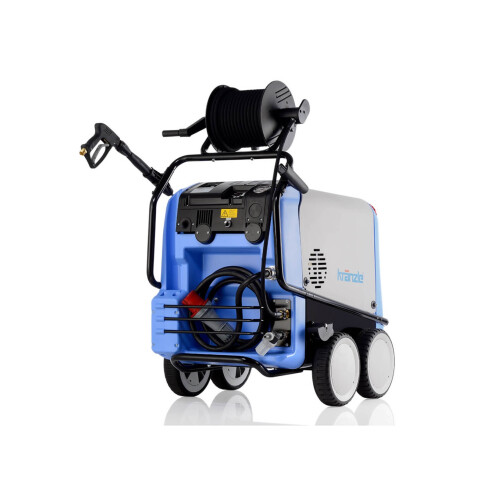

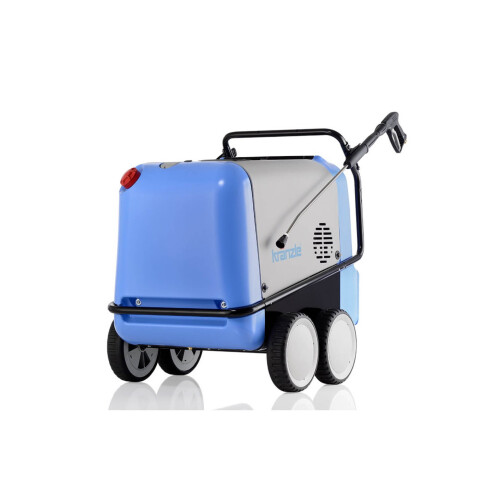

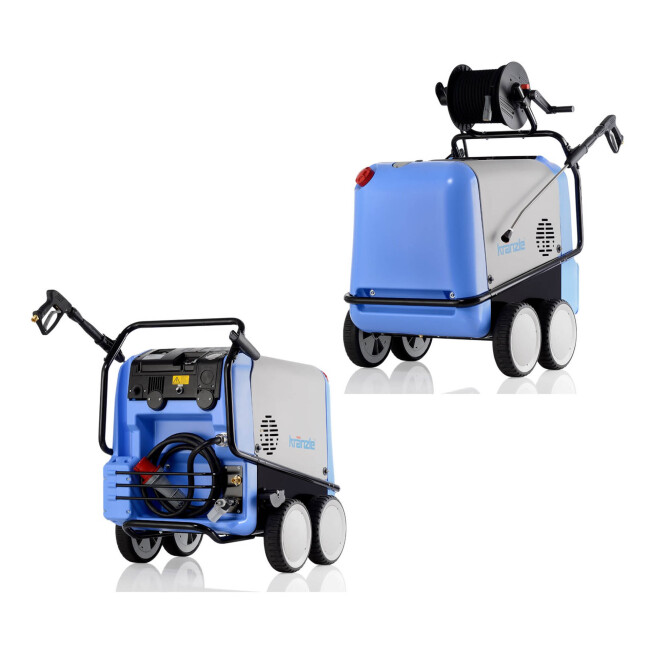

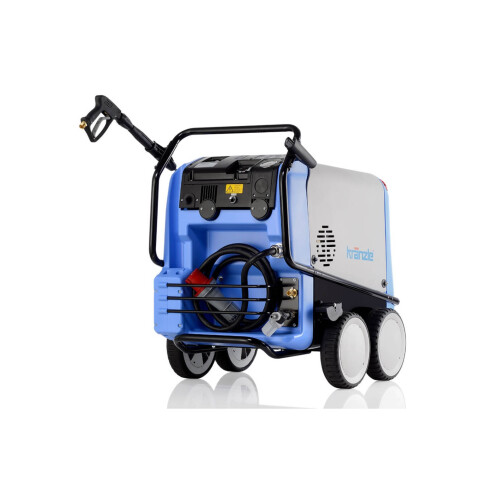

Kränzle high-pressure cleaner hot water e-therm 500 M 24 with stable heat: The electrically heated instantaneous water heater enables temperatures of up to 80°C even in continuous operation. This hot water professional is particularly suitable for use in closed rooms without exhaust air, in clean rooms or in health and hygiene-sensitive areas, and is available with or without an integrated hose reel. The temperature and heat output can be precisely controlled via the digital thermostat so that the water temperature can be maintained to the exact degree for constant work. The operating hours counter included as standard also determines the required service intervals. The appliance is also characterized by its all-terrain chassis, large wheels with wide solid rubber tyres, excellent parking brake and integrated storage system. This means that the appliance can be pushed to any location with full equipment. The quick-change plug-in system, total stop system with delayed motor shut-off, infinitely variable pressure regulation, detergent and direct suction and safety shut-off are of course also standard features of this professional appliance.
Special features
- Electrically heated instantaneous water heater
- Emission-free cleaning with hot water up to 80°C
- Quick-change plug-in system
- All-terrain mobility, large wheels with solid rubber tires and parking brake
- Total stop system with delayed engine shutdown
- Safety shut-off
- Flow monitoring
- 4-fold safety system with overload protection
- Pressure regulation
- Detergent suction
- Direct suction: 2.5 m suction height
- Water tank: 12 l volume
- Operating hours counter
Technical data
High-pressure cleaner:
- Working pressure: 30 - 130 bar / 3 - 13 MPa
- Water output: 8 l/min / 480 l/h
- Permissible overpressure: 150 bar / 15 MPa
- Motor speed: 1400 rpm
- Connection: 400 V / 3 ~ / 50 Hz / 39 A
- Power consumption: 27 kW
- Mains connection cable: 5 m
- Plug: CEE 32 A
- Dimensions (L/W/H):
1050 x 800 x 1015 mm (without hose reel)
1050 x 800 x 1450 mm (with hose reel) - Weight: 128 / 135 kg
Hot water:
- Heating input water: 34 °C
- Heating output: 24 kW
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: Plug-in coupling D12
- Working pressure: 250 bar/ 25 MPa
- Water output: 40 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle high-pressure cleaner hot water e-therm 500 M 24 included:
- 1 x high pressure hose 10 / 20 m (DN8)

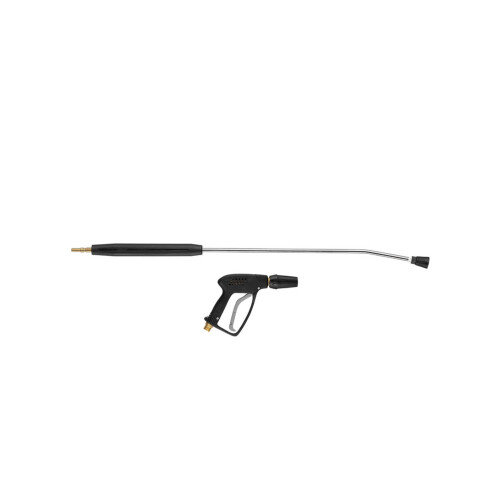

- 1 x Starlet safety shut-off gun, short
- 1 x lance with flat jet nozzle, 100 cm length, handle, 03 nozzle size (white), 25° spray angle
- 1 x water inlet filter
