Description

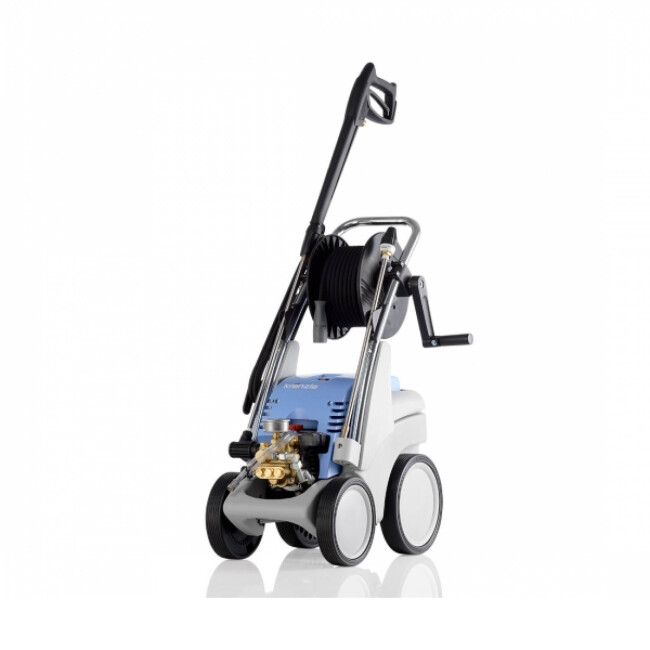

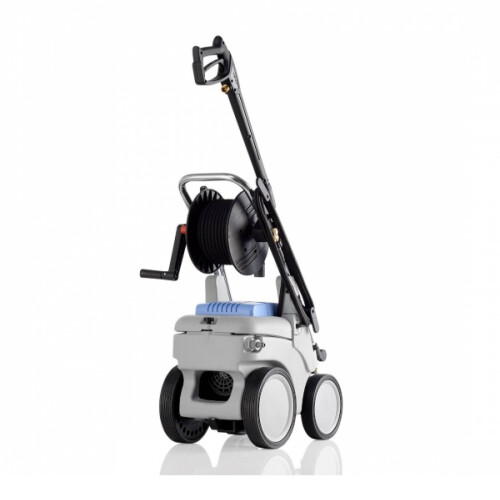

The Kränzle cold water high-pressure cleaner quadro 9/170 TST with its double-axle chassis and 4 wheels sets new standards in terms of stability and stability and is perfectly suited for applications with frequent relocation. The front and rear impact protection serves to protect against damage, including to the high-pressure pump. The quadro 9/170 TST also has a 5 l water tank, which has the advantage that the pump draws water from the water tank so that additives can be applied at the same working pressure. In addition to the integrated water tank, this appliance naturally also has a convenient hose reel with folding crank handle, an organization system, the quick-change plug-in system, infinitely variable pressure regulation, the total stop system and a detergent suction system. In addition to the safety shut-off gun, the scope of delivery also includes a lance with flat jet nozzle and dirt killer.
Special features
- Convenient hose reel with folding crank handle
- impact protection
- organizing system
- Quick-change plug-in system D12
- Total stop system
- Pressure regulation
- Detergent suction
- Water tank: Volume 5l
Technical data
High-pressure cleaner:
- Working pressure: 30 - 170 bar | 3 - 17 MPa
- Water output: 9 l/min | 540 l/h
- Permissible overpressure: 190 bar | 19 MPa
- Motor speed: 1400 rpm
- Connection: 230 V | 1 ~ | 50 Hz | 14 A
- Power consumption: 3.3 kW
- Power output: 2.4 kW
- Mains connection cable: 5 m
- Dimensions (L/W/H): 590 x 360 x 850 mm
- Weight: 47 kg
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: D12 plug-in coupling
- Working pressure: 207 bar/ 27 MPa
- Water output: 30 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle cold water high-pressure cleaner quadro 9/170 TST with integrated hose reel included:
- 1 x high pressure hose 15 m (DN6)

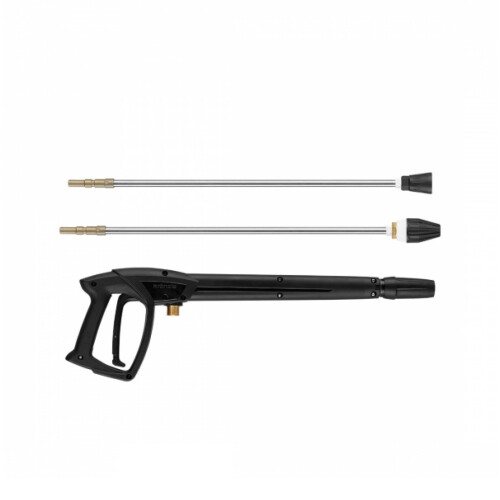

- 1 x safety shut-off gun M2000 - long
- 1 x lance with flat jet nozzle, 03 nozzle size (white), 50 cm long, 20° spray angle
- 1 x lance with dirt killer, 03 nozzle size (white), 50 cm length
