Kränzle high-pressure cleaner cold water quadro 1200

  • Item number: 820
  • large quadro series
  • Professional dirt removal
  • Safety shutdown
  • Stainless steel chassis
  • Working pressure: 30-180 bar
  • Water output: 19 l/min
  • With (89 kg) or without (83 kg) integrated hose reel
Hose reel
Article currently out of stock
  • Article out of print

Description

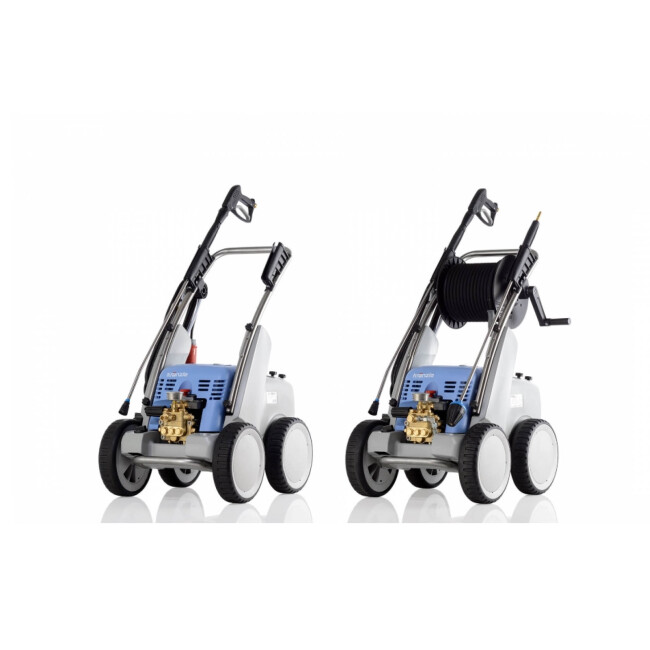

Kränzle cold water high-pressure cleaner quadro 1200 is particularly powerful and ensures the best cleaning results with outstanding pump quality. The heart of every high-pressure cleaner is the high-pressure pump. This is why Kränzle only uses forged special brass for the pump heads - this not only offers outstanding quality, but also increases the durability of the high-pressure pump. In this model, which is available with or without a hose reel, the powerful high-pressure pump is mounted horizontally and the robust housing ensures high stability. The high-pressure cleaner can be easily transported to any work site, even off-road, on the ergonomic and removable handlebar and on its 4 large wheels with solid rubber tires, and secured with the parking brake.The chassis is made of stainless steel, which also increases durability and is corrosion-resistant. To reduce the load on the high-pressure pump, this model naturally also has the total stop system with delayed motor shut-off, infinitely variable pressure regulation, the quick-change plug-in system, a detergent suction system and an integrated 12 l water tank, which prevents damage to the high-pressure pump in the event of a water shortage.
Please select the right model for you - with or without hose reel.

Special features

  • Oversized gearbox and oil housing
  • Large stainless steel pressure gauge
  • Roto-Mold chassis - practically indestructible
  • Pressure regulation
  • Total stop system with delayed motor shutdown to relieve the high-pressure pump
  • Ergonomic, removable stainless steel handle and chassis
  • tidying system
  • ram protection
  • Detergent suction
  • Safety cut-out

Technical data

High-pressure cleaner:

  • Working pressure: 30 - 180 bar | 3 - 18 MPa
  • Water output: 19 l/min | 1140 l/h
  • Permissible overpressure: 200 bar | 20 MPa
  • Motor speed: 1400 rpm
  • Connection: 400 V | 3 ~ | 50 Hz | 12 A
  • Power consumption: 7.5 kW
  • Power output: 5.5 kW
  • Mains connection cable: 7.5 m
  • Dimensions (L/W/H): 770 x 570 x 990 mm
  • Weight: 83 / 89 kg

Safety shut-off gun:

  • Inlet: M22x1.5AG
  • Outlet: D12 plug-in coupling
  • Working pressure: 250 bar/ 25 MPa
  • Water output: 40 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle cold water high-pressure cleaner quadro 1200 included:
  • 1 x high pressure hose 10 / 20 m (DN8)

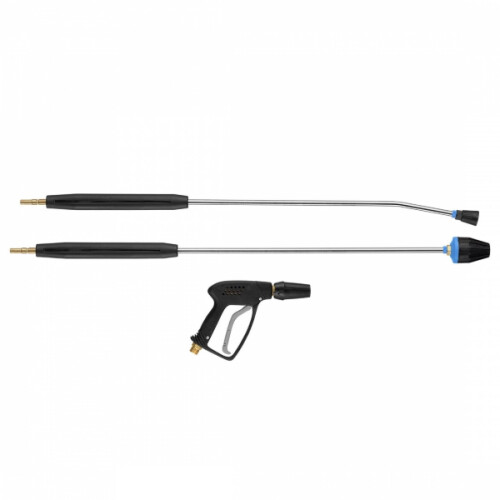

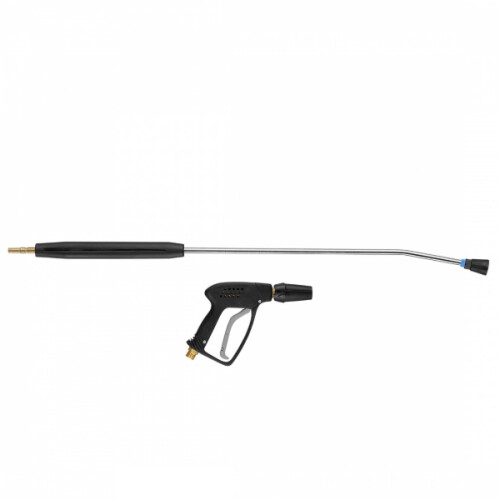

  • 1 x Starlet safety shut-off gun, short
  • 1 x lance with flat jet nozzle, 100 cm length, handle shell, 07 nozzle size (blue), 25° spray angle
  • 1 x lance with turbo killer, 100 cm length, handle, 07 nozzle size (blue) - only included in the version with hose reel!
