Description

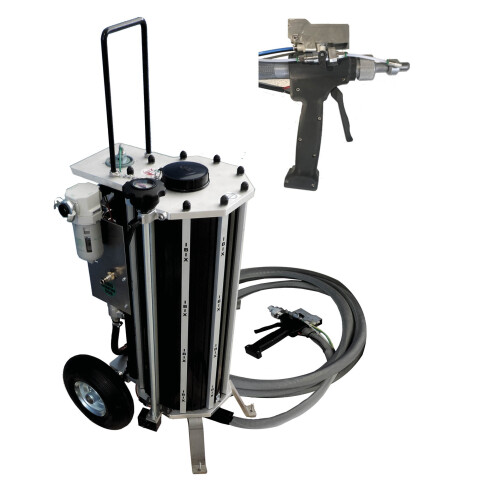

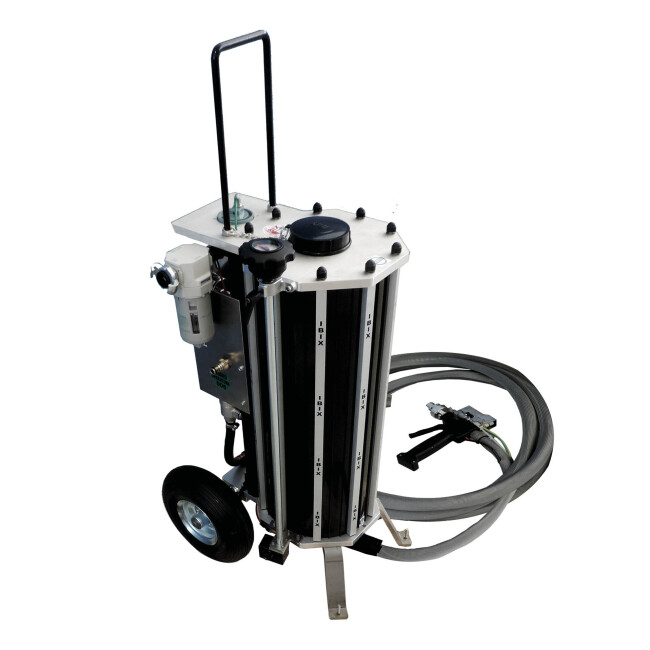

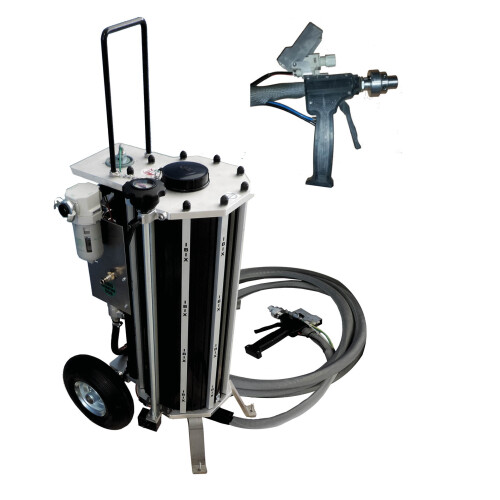

The IBIX Phoenix blasting unit combines all the most important IBIX technologies in terms of convenience and effectiveness in a single system. This not only saves you a lot of time when working, but also valuable material. Thanks to the resistant wheels, the fine blasting unit can be driven over hill and dale and offers more mobility on site. Attention has also been paid to greater convenience when using and adjusting the settings. For example, the abrasive flow setting can be controlled from above and the air pressure and water regulation can be adjusted on the gun. Thanks to the new internal hopper, the abrasive in the tank can be discharged more quickly without having to tip the machine over.
The IBIX Phönix is available in the following versions:
- Phoenix Dual Silver - with H2O gun
- Phoenix Helix Gold - with Helix gun

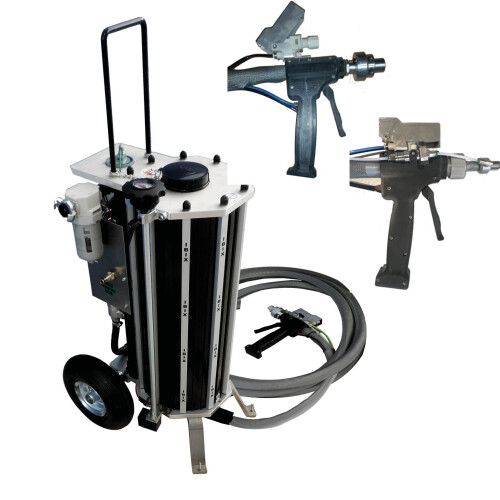

- Phoenix 25 Platinum - with H2O and Helix gun
Special features
- Best technology for comfort and efficiency in sandblasting, combined in a single system

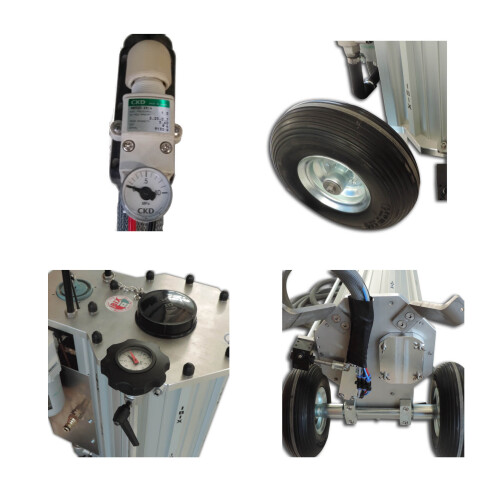

- Blasting agent regulation from above
- Regulation of air pressure and water at the gun

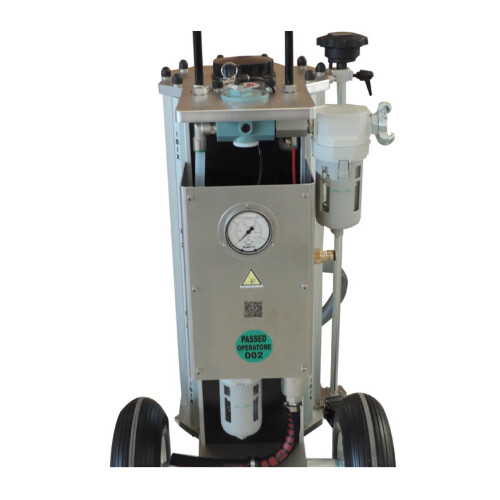

- Continuous pressure display
- quick emptying of the remaining abrasive from the container thanks to the integrated hopper
Technical data
- Structure: completely made of aluminum
- Air pressure: 0.2 to 7.5 bar
- Particle size / grain size: from 38 µm to 1400 µm
- Hose length: 10 m
- Standard nozzles: 5.5 mm
- Tank volume: 24.8 l
- Max. Height: 990 mm
- Max. Width: 316 mm
- Max. Length: 426 mm
- Unladen weight: approx. 40 kg
- Vibrations at the handle: 1.157 m/s2 (air) / 1.186 m2 (water)
- Suitable for the following surfaces: steel, aluminum, stainless steel, wood, marble, glass, concrete, masonry, stone, etc.
Scope of delivery
- IBIX blasting unit Phoenix Dual Silver:
incl. 5.5 mm cyl. nozzle, aluminum holder, sieve, gloves - IBIX Phoenix Helix Gold:
incl. helix nozzle, aluminum holder, sieve, gloves - IBIX Phoenix 25 Platinum:
incl. helix and dual gun
