IBIX 9 Trilogy Start

With us, you can easily lease or finance. We offer attractive conditions through our partners Albis and PEAC.

  • Item number: 411
  • GTIN: 0745114573353
  • Fine blasting unit with triple function
  • Standard, dual and helix process
  • Structure completely made of aluminum
  • Quick emptying
  • optimizes abrasive consumption and increases efficiency during use
  • high comfort, ergonomic handle, easy pressure regulation
Article currently out of stock
  • Artikel vergriffen

Description

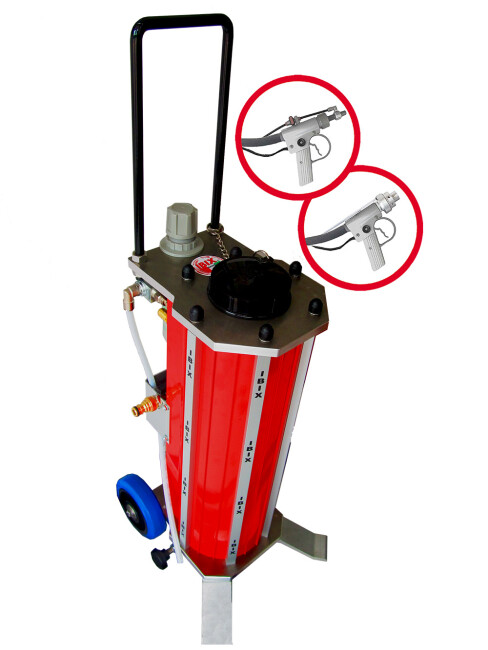

The IBIX 9 Trilogy Start is a fine blasting unit with triple function, which enables any cleaning to be carried out: standard, dual & helix process.
The blasting unit with removable wet blasting nozzle can also be used as a normal blasting unit.
Furthermore, you can also mount the patented Helix gun on this machine, combining dry H2O and Helix technology for the first time.
The benefits are clear: exceptional versatility and applicability of the machine, allowing you to drastically reduce the time spent cleaning, blasting, restoring and treating surfaces in the future.
The conical bottom tank improves the flow of abrasive and avoids contamination between different abrasives.

IBIX H2O Selective cleaning system:

  • Dual system: can be used as a dry blasting unit and with water
  • Blasting unit with quick coupling system for easy and immediate connection to the water supply

IBIX Helix rotating vortex cleaning system

  • Combination with the Venturi effect, which creates a spiral rotation due to the special shape of the outlet cone -> the air requirement of the machine is reduced and at the same time the contact surface is increased
  • Use of a special eddy current nozzle made of tungsten carbonate
  • Long service life and durability, even when using extremely hard abrasives

Attention: The helix gun is not suitable for processing bi-carbonate!

Product videos Stories

Special features

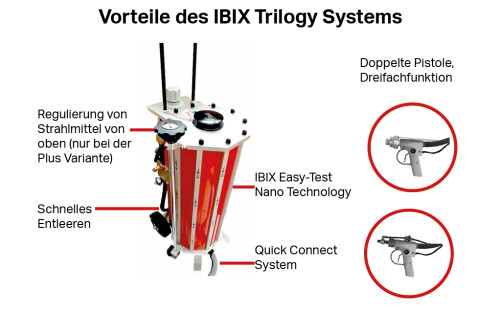

  • Triple jet technology: standard, dual and helix process
  • Fast emptying: Optimizes abrasive consumption and increases efficiency when working
  • Dual function with the Dual System: enables the use of water to bind dust or in combination with bicarbonate as a non-abrasive cleaning method
  • High level of comfort during use: ergonomic handle, easy pressure regulation incl. pressure gauge for precise measurement of the amount of abrasive used

Technical data

  • Air pressure: adjustable in the range from 0.2 to 7.5 bar (depending on the compressor used)
  • Precise dosing of the abrasive
  • Structure completely made of aluminum
  • Grain size of the abrasive: 38 µm to 600 µm with different specific weight
  • Minimum air requirement: 670 l/min
  • Standard nozzle for dry blasting and H2O gun: 3.0 mm cylindrical
  • Standard nozzle for Helix gun: 3.0 mm Venturi
  • Air hose + abrasive + water hose (length 3 m + 10 m extension) with quick coupling system "QuickConnect" included
  • Tank volume: 9 liters
  • Empty weight: approx. 18 kg
  • Dimensions (H/W/L): 890 x 310 x 350 mm

Scope of delivery

  • 1 x IBIX blasting unit 9 Trilogy incl.
    Air hose + abrasive + water hose (length 3 m + 3 m extension) with "Quick Connect" quick coupling system
    Two guns:
    H2O: for use as a dry blasting unit incl. mountable wet blasting nozzle
    patented Helix gun: a special eddy current nozzle made of tungsten carbide with Venturi profile sets the abrasive into rotation
  • 1 x starter package incl.
    3 mm helix nozzle, aluminum holder, sieve, gloves
