Description

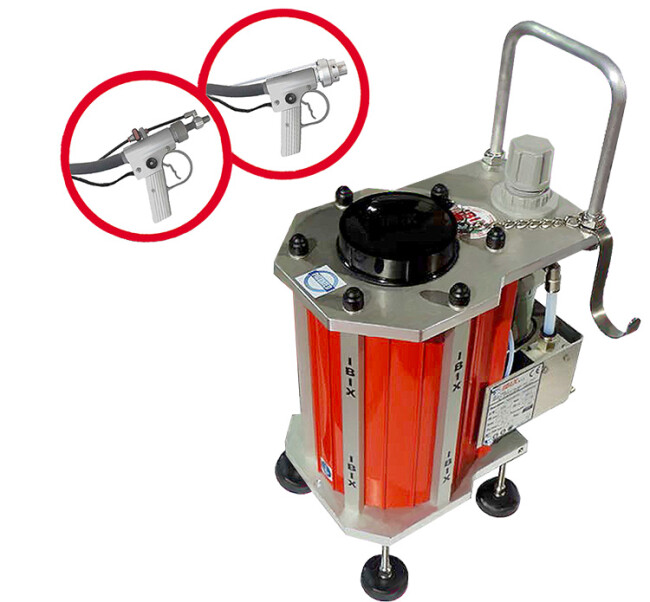

The IBIX 3 Trilogy Start with triple blasting technology, which enables any cleaning to be carried out: Standard, Dual & Helix process.
The IBIX 3 Trilogy Start is particularly suitable for smaller applications and for creating a sample area. Equipped with a 3-liter tank, the blasting unit has the same features as the larger systems and enables the user to process even small areas to a high standard of quality. This is the perfect system for surface preparation. Dirt layers can be removed in an intermittent manner - without removing the original surface - thanks to the control of the working parameters such as working pressure, blasting medium quantity, size and type of nozzle as well as the distance between the nozzle and the surface. Thanks to its slim design and low weight, the blasting unit is ideal for use in confined and hard-to-reach areas.

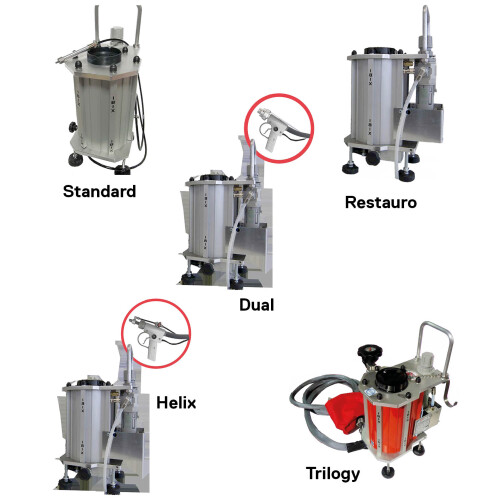

The IBIX 3 blasting unit is available here in the Trilogy version with triple blasting technology. The IBIX blasting unit 3 Trilogy combines the standard, dual and helix methods in one device.
Special features
- perfect for smaller applications
- small, compact, powerful
- always constant air and abrasive flow
- requires only a small amount of compressed air
- can be operated by one person
- Available in different versions
- slim design, low weight
Technical data
- Air pressure: adjustable in the range from 0.2 to 7.5 bar (depending on the compressor used)
- Micrometric dosing of the abrasive
- Crown size of the abrasive: 38 µm to 600 µm
- Compressed air supply: min. 300 l/min
- Standard nozzle: 3 mm cylindrical
- Helix system: 3 mm Venturi nozzle
- Hose length: 3m
- Tank volume: 3 l
- Capacity: 2.5 l
- Dimensions: 500 x 220 x 270 mm
- Empty weight: approx. 10 kg
Scope of delivery
- 1 x IBIX blasting device 3 Trilogy incl. 3 mm helix nozzle, sieve, gloves
