IBIX 28 Trilogy Plus Start

With us, you can easily lease or finance. We offer attractive conditions through our partners Albis and PEAC.

  • Item number: 1520
  • GTIN: 4255636901474
  • Triple beam technology
  • Standard, dual and helix process combined in one system
  • Convenient pressure adjustment at the top of the bowl
  • Exceptional versatility and applicability
  • Can be used as a dry blasting device and with water
  • Incl. H2O and patented Helix gun
Article currently out of stock
  • Article out of print

Description

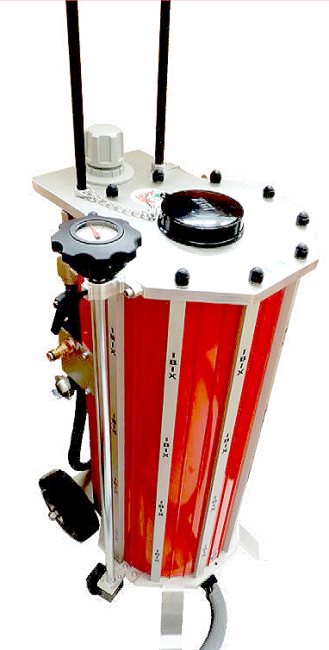

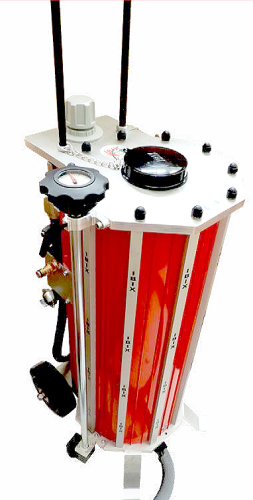

IBIX 28 Trilogy Plus Start is a fine blasting unit that perfectly combines the standard, dual and helix processes. The triple blasting technology makes it possible to carry out any type of cleaning and saves time when blasting, restoring or treating surfaces. Dry H2O and Helix technology are optimally combined. In addition, the IBIX blasting unit 28 Trilogy Plus has a convenient pressure setting at the top of the tank so that the amount of blasting agent can be controlled at all times. The tank with conical base also improves the flow of abrasive and prevents contamination between different abrasives.

The IBIX H2O is a dual machine. It can be used both as a dry blasting machine and with water. For use, a wet blasting nozzle is fitted and water is mixed with sodium bicarbonate or other minerals. Thanks to the quick coupling system, quick and easy connection to the water supply is guaranteed.

IBIX Helix: The combination with the Venturi effect, which creates a spiral rotation due to the special shape of the outlet cone, greatly reduces the air requirement of the machine and at the same time increases the contact surface. The special eddy current nozzle made of tungsten carbonate ensures a long service life and durability.

Attention: The helix gun is not suitable for bi-carbonate.

Product videos Stories

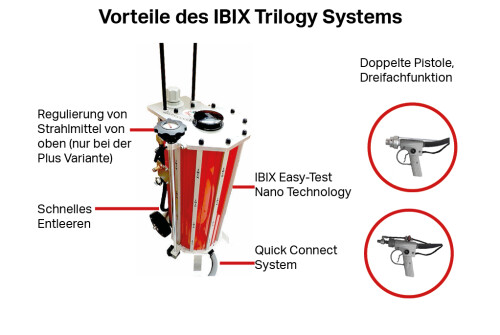

Special features

  • Triple jet technology: standard, dual and helix process
  • Convenient pressure adjustment at the top of the boiler
  • Quick emptying
  • Optimizes abrasive consumption and increases efficiency
  • Dual function with the Dual system: use of water to bind dust or in combination with bicarbonate as a non-abrasive cleaning method
  • High level of comfort during use

Technical data

  • Air pressure: adjustable in the range from 0.2 to 7.5 bar (depending on the compressor used)
  • Structure completely made of aluminum
  • Precise dosing of the abrasive
  • Grain size of the abrasive: 38 µm to 1400 µm with different specific weight
  • Minimum air requirement: 1900 l/min
  • Standard nozzle for dry blasting and H2O gun: 5.5 mm cylindrical
  • Standard nozzle for Helix gun: 6.0 mm Venturi
  • Hose length: 5 + 10 meters
  • Capacity: 28 liters
  • Empty weight: approx. 48 kg
  • Dimensions (H/W/L): 1080 x 320 x 426 mm

Scope of delivery

  • 1 x IBIX 28 Trilogy Plus Start incl.
    5.5 mm cyl. nozzle, aluminum holder, sieve, gloves
